Quick Details
-
Place of Origin:
-
Hebei, China
-
Name:
-
K type arch steel building roll forming machine
-
Raw Material Thickness:
-
0.3-1.5mm
-
Warranty time:
-
One year
-
Technical support:
-
Whole lifetime
-
Operation type:
-
Automatic
-
Material width:
-
600-1250mm
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
8-12M/MIN
-
Place of Origin:
-
Hebei, China
-
Name:
-
K type arch steel building roll forming machine
-
Raw Material Thickness:
-
0.3-1.5mm
-
Warranty time:
-
One year
-
Technical support:
-
Whole lifetime
-
Operation type:
-
Automatic
-
Material width:
-
600-1250mm
K type arch steel building roll forming machine
K type arch steel building roll forming machine datum
|
Size |
9,000mm×2,250mm× 2,300mm |
|
Total Weight |
About 13T |
|
Cutting Material |
Cr12Mov, Heat treatment |
|
Cutting Type |
Hydraulic/Mechanical controlling cutting |
|
Total Motor Power |
18.5KW |
|
Forming Power |
7.5KW |
|
Bending Power |
4.0KW |
|
Cutting Power |
4.0KW |
|
Conical Power |
3.0KW |
|
Material of Rollers |
45#steel, quenched HRC 58-62 |
|
Material of Shafts |
45#steel, adjusted |
|
Step of Rollers |
13 |
|
Max Span |
≤40m |
|
Width of the Panel |
Feeding width: 914mm Finished width: 400mm |
|
The Depth of the Groove |
210mm |
|
Operating Factor of the Panel |
43.8% |
|
Thickness of the Panel |
0.8-1.5mm |
|
Working Speed |
Straight Sheet: 15mm/min Arch Sheet: 13m/min Seaming: 6m/min |
|
Electric Standard |
380V/50HZ/3PHASES or according to your requirement |
|
Controlling System |
PLC(Omron,Japan) |

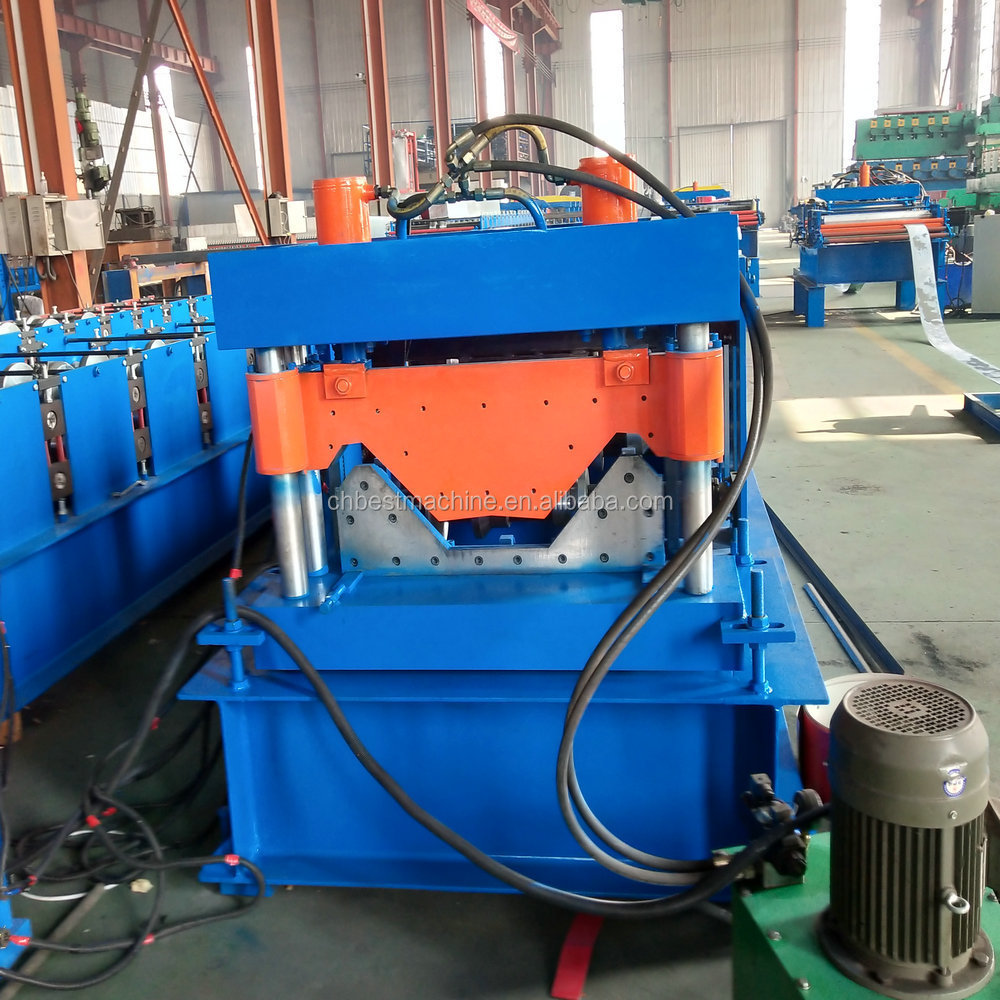

K type arch steel building roll forming machine factory and loading pics
