Quick Details
-
RCD measurement:
-
10mA/20mA/30mA/100mA/300mA/500mA
-
Display count:
-
1000
-
Data hold:
-
0° and 180°
-
Over-range display:
-
OL
-
AUTO RAMP:
-
YES
-
Disconnect buzzer:
-
YES
-
Fused:
-
YES
-
Mis-operation buzzer:
-
YES
-
Power off buzzer:
-
YES
-
Full icon display:
-
YES
Quick Details
-
Warranty:
-
1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UNI-T
-
RCD measurement:
-
10mA/20mA/30mA/100mA/300mA/500mA
-
Display count:
-
1000
-
Data hold:
-
0° and 180°
-
Over-range display:
-
OL
-
AUTO RAMP:
-
YES
-
Disconnect buzzer:
-
YES
-
Fused:
-
YES
-
Mis-operation buzzer:
-
YES
-
Power off buzzer:
-
YES
-
Full icon display:
-
YES
Products Description

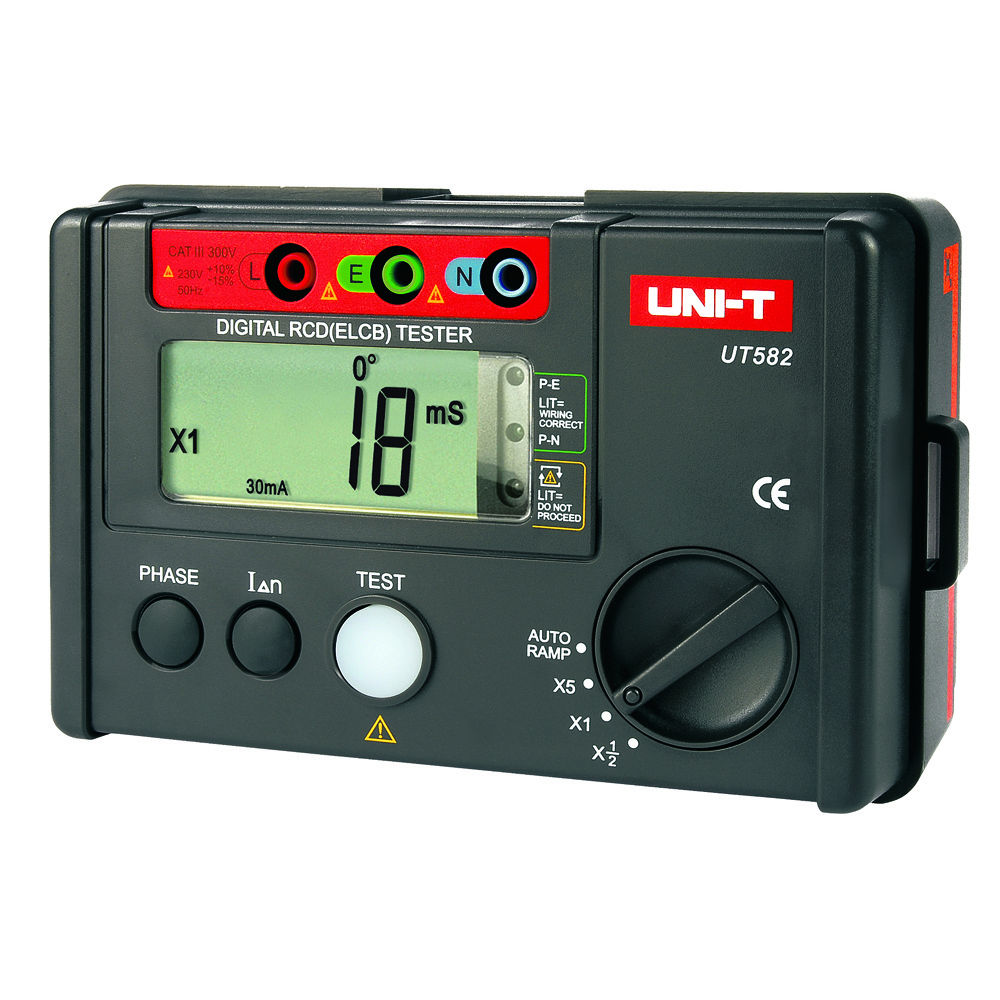

UNI-T UT582 High Precision High Stability Intelligent Chip Fuse Insulation Safety Protection Leakage Protection Switch Tester
UT585/UT586/UT582+ Leakage Protection Switch Tester
Leakage protection switch (RCD) tester, the whole machine with intelligent micro-control chip as the core, and with a full-featured protection circuit design. It can be used to test the action current and action time of the leakage protection switch, also used for wiring inspection; and has phase selection, remote control test function, over-temperature automatic prohibition of measurement function, line circuit abnormal automatic prohibition of measurement function; high precision, stable performance, easy operation, reliable use. It can be widely used in home, school, electric power, manufacturing, smelting, chemical and other industries for safety measurement, is the ideal tool for the production, installation, inspection and maintenance of leakage protection switch.
|
Specifications
|
|
Range
|
|
UT582
|
||||
|
RCD measurement
|
Range setting
|
Rated operating current
|
Trip time
|
|
||||
|
|
X 1/2
|
10mA/20mA/30mA/100mA/300mA/500mA
|
2000ms
|
√
|
||||
|
|
X 1
|
10mA/20mA/30mA/100mA/300mA
|
1000ms
|
√
|
||||
|
|
|
500mA
|
300ms
|
√
|
||||
|
|
X 5
|
10mA/20mA/30mA
|
40ms
|
√
|
||||
|
|
AUTO RAMP
|
10mA/20mA/30mA/100mA/300mA/500mA
|
300ms
|
√
|
||||
|
|
Trip current accuracy
|
|
|
±10%
|
||||
|
|
Trip time accuracy
|
|
|
±(2%+2)
|
||||
|
|
Trip time resolution
|
1ms
|
|
√
|
||||
|
|
Operating voltage (Freq.)
|
195V~253V (50Hz)
|
|
√
|
||||
|
Features
|
|
|
|
|
||||
|
Display count
|
|
|
|
1000
|
||||
|
Data hold
|
0° and 180°
|
|
|
√
|
||||
|
Phase switch
|
Lamps indication
|
|
|
√
|
||||
|
Connections check
|
Simultaneously test the trip time and trip current
|
|
|
√
|
||||
|
AUTO RAMP
|
|
|
|
√
|
||||
|
Disconnect buzzer
|
|
|
|
√
|
||||
|
Over-range display
|
OL
|
|
|
√
|
||||
|
Fused
|
|
|
|
√
|
||||
|
Mis-operation buzzer
|
|
|
|
√
|
||||
|
Power off buzzer
|
|
|
|
√
|
||||
|
Full icon display
|
|
|
|
√
|
||||
|
Meets IEC 61557
|
61557-1:2007; 61557-6:2007
|
|
|
√
|
||||
|
General Characterisitics
|
|
|
|
|
||||
|
Power
|
No battery is required
|
|
|
|
||||
|
Display
|
71mm x 34mm
|
|
|
|
||||
|
Product color
|
Red and grey
|
|
|
|
||||
|
Product net weight
|
400g
|
|
|
|
||||
|
Product size
|
160mm x 100mm x 71mm
|
|
|
|
||||
|
Standard accessories
|
Test line, carrying bag, gallus
|
|
|
|
||||
|
Standard individual packing
|
Gift box, English manual
|
|
|
|
||||
|
Standard quantity per carton
|
5pcs
|
|
|
|
||||
|
Standard carton measurement
|
425mm x 280mm x 180mm (0.063 CBM per standard carton)
|
|
|
|
||||
|
Standard carton gross weight
|
4.9kg
|
|
|
|
||||
