* Clearly shows the situation of different units.
* You can touch the screen and adjust the parameters easily.
* Siemens PLC is optional.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
1350*1210*2300mm
-
Weight:
-
760 kg
-
Product name:
-

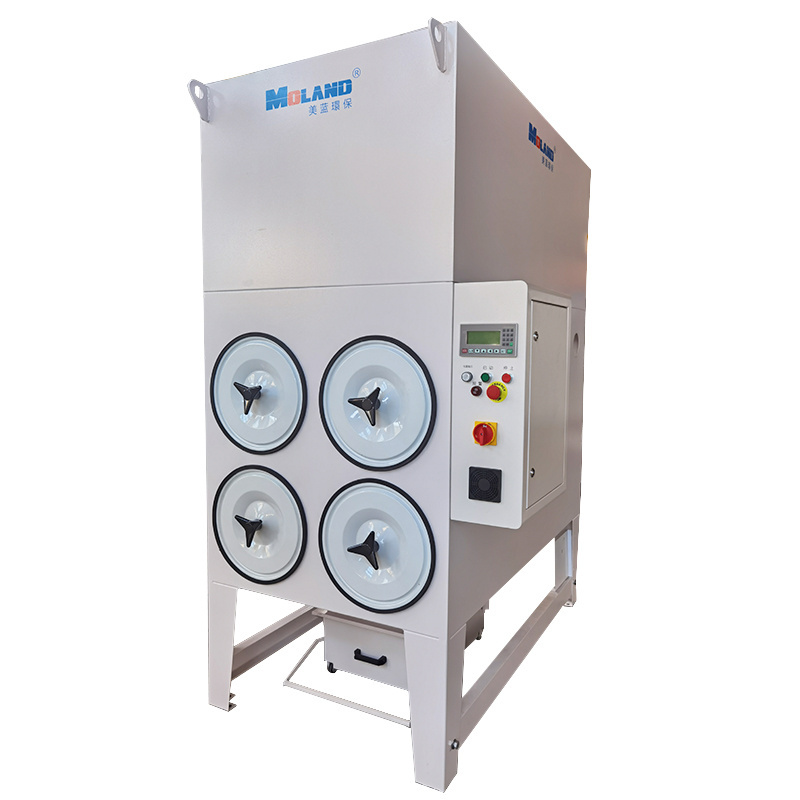

Industrial Dust Collector
-
Air Volume:
-
4500~5000 m^3/h
-
Filter Efficiency:
-
0.3um 99.9%
-
Filter Material:
-
Flame retardant coated polyester fiber
-
Cleaning Mode:
-
Automatic pulse jet cleaning
-
Filter Area:
-
92 m^2
-
Noise Level:
-
75±3dBA
-
Brand:
-
Moland or customized
-
Application:
-
Welding, laser cutting, polishing, grinding, etc
-
Customization:
-
Logo, size, etc.
Quick Details
-
Minimum Particle Size:
-
0.3um
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Moland
-
Dimension(L*W*H):
-
1350*1210*2300mm
-
Weight:
-
760 kg
-
Product name:
-
Industrial Dust Collector
-
Air Volume:
-
4500~5000 m^3/h
-
Filter Efficiency:
-
0.3um 99.9%
-
Filter Material:
-
Flame retardant coated polyester fiber
-
Cleaning Mode:
-
Automatic pulse jet cleaning
-
Filter Area:
-
92 m^2
-
Noise Level:
-
75±3dBA
-
Brand:
-
Moland or customized
-
Application:
-
Welding, laser cutting, polishing, grinding, etc
-
Customization:
-
Logo, size, etc.
Specification
|
Model
|
MLWF450H-4T
|
|
Motor Power
|
4KW
|
|
Working Voltage
|
380V 50Hz
|
|
Air Volume
|
4500~5000 m^3/h
|
|
Filter Efficiency
|
0.3um 99.9%
|
|
Filter Material
|
Flame retardant coated polyester fiber
|
|
Cleaning Mode
|
Automatic pulse jet cleaning
|
|
Filter Area
|
92m^2
|
|
Noise Level
|
75±3 dBA
|
|
Size
|
1350*1210*2300mm
|
|
Weight
|
760kg
|
|
Logo
|
Moland or customized
|
|
Color
|
White or customized
|
|
Application
|
suitable for welding, plasma cutting, laser cutting, polishing, etc.
|
Details Images
PLC Intelligent Control System
* Moland self developed intelligent control system.
Automatic Pulse Jet Cleaning System
The omni-directional pulse blowback dust removal system, which can automatically clean the filter cartridge with a filtration
efficiency of 99.9%.
efficiency of 99.9%.
Electrical Control
As per the workpiece material you processed, we supply non-explosion-proof and explosion-proof type dust collector.
Explosion-proof device can be equipped to protect your workers when necessary.
If you're not sure which type to choose, you can tell us your welding workpiece material, then we'll recommend you the suitable type.
Cartridge Filter
Size: Φ350*660mm
Qty: 4 pcs
Material: Flame Retardant Coated polyester fiber
Filter area: 92 m^2
Cleaning mode: Automatic pulse jet cleaning
Filtration efficiency: 0.3um >99.9%
Material: Flame Retardant Coated polyester fiber
Filter area: 92 m^2
Cleaning mode: Automatic pulse jet cleaning
Filtration efficiency: 0.3um >99.9%
Dust Collection Drawer
* 42L large capacity dust collection drawer
* Regularly dump the dust in it.
* With leakage-proof rubber sealing
* With handle for you to pull it out and push it in easily
* Lever type sealing structure
Differential Pressure Gauge
Compressed Air Tank
Water Separator
