Quick Details
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
0.24 kg
-
After-sales Service Provided:
-
No overseas service provided
-
Product name:
-
Fiberglass Filter
-
Application:
-
Spray painting room,air-condition system.
-
Type:
-
Large ventilation quantity,
-
Usage:
-
Widely Used Dust Filter
-
Size:
-
Customsize
-
Color:
-
White-Green
-
Media:
-
Fiber Glass Filter
-
Certification:
-
ISO
Quick Details
-
Core Components:
-
Not Available
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Clean-Link
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
0.24 kg
-
After-sales Service Provided:
-
No overseas service provided
-
Product name:
-
Fiberglass Filter
-
Application:
-
Spray painting room,air-condition system.
-
Type:
-
Large ventilation quantity,
-
Usage:
-
Widely Used Dust Filter
-
Size:
-
Customsize
-
Color:
-
White-Green
-
Media:
-
Fiber Glass Filter
-
Certification:
-
ISO

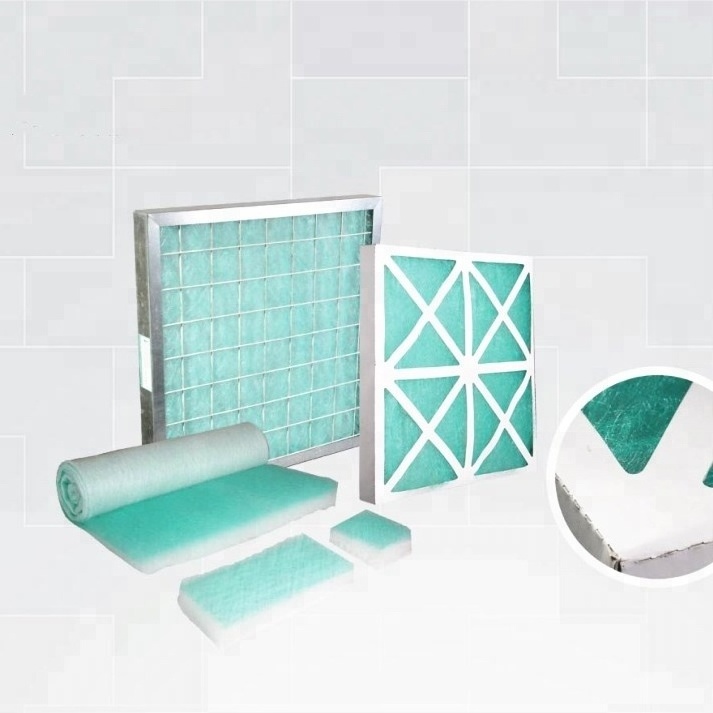

Synthetic fiber g4 pre filter media for spray booth car painting room filter for spray paint booth
1.Made of long fiberglass in non-woven way,
large ventilation quantity
,
small resistance
, good efficiency of the dust arrestance for the over-spray.
2.It is applied to the superficial spray coating high quality painting-spray filtration,
high dust catching
, specially , PA-50/60/PA-100 is suitable for using heat recovery system
3.High strength
fiberglass
increasing structure; the windward side is green ,the leeward side is white..
4.The low compression performance maintains its outlook,which is completely useful for the filtration fibre to keep the oil mist and the dust
5.
Nonflammability, heat resistance 170℃
6.The compression packing may save the fare and the storage space in the transportation. After decompression, it will regain its original condition
7.Outer frame may choose the paper frame , the galvanization iron frame, or aluminium alloy frame.
Note: Other specifications are available on request.
|
Model |
PA-50/60 |
PA-100 |
|
Avg.arrestance(acc.EN779) |
92%-96% |
97%-99% |
|
Initial pressure drop |
15Pa |
20Pa |
|
Final pressure drop |
250Pa |
280Pa |
|
Dust holding at tested final |
3200-3600g/m² |
3600-4900g/m² |
|
Temp.resistance, const |
170°c |
170°c |
|
Temp, short peaks |
190°c |
190°c |
|
Normal thickness |
50/60mm |
100mm |
|
Roll sizes standard |
0.8x20 1.0x20 2.0x20 |
0.8x20 1.0x*20 2.0x20 |
Thick dust filtrations for the general air-condition system.
Applied to the dry spray painting platform and the exhaust gas system of the automobile spray painting room. It is environment-friendly, reducing the pollution to the environment.
