Quick Details
-
Brand Name:
-
HEDY or OEM
-
Model Number:
-
HN8H2-96-V2
-
Place of Origin:
-
Guangdong, China
-
PoE port:
-
8 ports
-
Up Link:
-
2 ports
-
PoE Power Budget:
-
96W
-
Network protocol:
-
IEEE802.3/802.3u/802.3x
-
Throughput:
-
1.488Mpps
-
Transfer Mode:
-
Store-and-forward
-
MAC Address Table:
-
2k
-
PoE Standard:
-
IEEE802.3af, IEEE802.3at
-
input Voltage:
-
AC 100-240 V
-
Transmission Distance:
-
0-100m/100Mbps; Max. 250m/10Mbps via Cat.5e or more under Extend mode
Quick Details
-
Transmission Rate:
-
10 Port 10/100Mbps
-
Communication Mode:
-
Full-Duplex
-
Switch Capacity:
-
2 Gpbs
-
Brand Name:
-
HEDY or OEM
-
Model Number:
-
HN8H2-96-V2
-
Place of Origin:
-
Guangdong, China
-
PoE port:
-
8 ports
-
Up Link:
-
2 ports
-
PoE Power Budget:
-
96W
-
Network protocol:
-
IEEE802.3/802.3u/802.3x
-
Throughput:
-
1.488Mpps
-
Transfer Mode:
-
Store-and-forward
-
MAC Address Table:
-
2k
-
PoE Standard:
-
IEEE802.3af, IEEE802.3at
-
input Voltage:
-
AC 100-240 V
-
Transmission Distance:
-
0-100m/100Mbps; Max. 250m/10Mbps via Cat.5e or more under Extend mode
Product Description

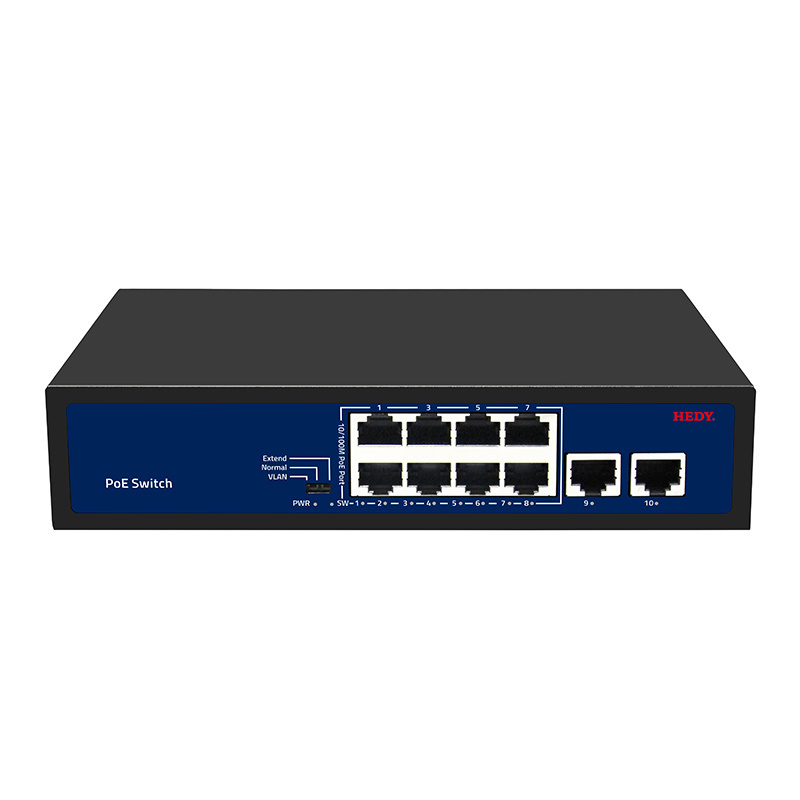

Megabit 8+2 PoE Switch
PoE switch 8 port 10/100Mbps plus 2 x 100Mbps Uplink ports megabit network PoE switch VLAN watchdog for CCTV camera
Specification
|
Model
|
HN8H2-96-V2
|
|
|
Product
|
PoE Switch
|
|
|
|
|
|
|
Ports
|
|
|
|
Network Port:
|
10
|
|
|
PoE Port:
|
8, 10/100Mbps; RJ45 ports; Max. 30W Output of Single PoE Port
|
|
|
Uplink Port:
|
2, 10/100Mbps; Transmission Distance: Defaulf: 0-100m
|
|
|
PWR (Power supply Indicator)
|
Light on: Powering
|
|
|
|
Light off: No Power
|
|
|
SW (Mode Switch)
|
Green light off: Normal/Default mode
|
|
|
|
Green light on: VLAN mode
|
|
|
|
Green ligh flash: Extend mode
|
|
|
RJ-45 ACT indicator
|
Green light off: Link is disconnected
|
|
|
|
Green light on: Link is connected
|
|
|
|
Green light flash: Data Transmitting
|
|
|
|
|
|
|
|
|
|
|
Standard
|
|
|
|
Network Protocol:
|
IEEE802.3/802.3u/802.3x
|
|
|
|
|
|
|
Performance
|
|
|
|
Switching Capacity:
|
2Gbps (non-blocking)
|
|
|
Packet Forwarding Rate:
|
1.488Mpps
|
|
|
Forwarding Mode:
|
Store-and-forward
|
|
|
Packet Buffer:
|
448K
|
|
|
MAC Address Table:
|
2K
|
|
|
Vlan
|
Suport
|
|
|
PoE watch dog
|
Suport
|
|
|
|
|
|
|
Power Over Ethernet
|
|
|
|
PoE Standard:
|
IEEE802.3af, IEEE802.3at
|
|
|
PoE Power Supply
|
1/2(+),3/6(-)
|
|
|
Transmission Distance:
|
0-100m/100Mbps or Max. 250m/10Mbps via Cat.5e or more under Extend mode
|
|
|
|
|
|
|
General
|
|
|
|
Power Source:
|
Bult-in Power Supply
|
|
|
|
Input: 100-240V AC, 50/60Hz
|
|
|
PoE Power Budget:
|
96W
|
|
|
Power Consumption:
|
<5W
|
|
|
ESD
|
Air discharge: 8KV
|
|
|
|
Contact discharge: 6KV
|
|
|
Surge Protecton
|
Common mode/RJ45 port: 4KV
|
|
|
|
Differential mode/RJ45 port: 2KV
|
|
|
|
Common mode/Power board: 2KV
|
|
|
|
Differential mode/Power board: 2KV
|
|
|
Working Temperature:
|
-20℃-50℃
|
|
|
Humidity:
|
10%-95% , non-condensing
|
|
|
Storage Temperature:
|
-45℃-85℃
|
|
|
Color
|
Black
|
|
|
Weight:
|
0.62kg（not include input cable & packaging）
|
|
|
Dimension(L×W×H):
|
200*118*44mm
|
|
[Main Features]
* 8*10/100M POE ports + 2* 10/100M Ethernet Uplink ports；
* Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3af/at standards；
* Ethernet port supports 10/100M adaptive and POE functions；
* Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard；
* Support port auto flip (Auto MDI/MDIX)；
* Automatically supplied to adaptive devices；
* Panel indicator monitoring status and help failure analysis；
* Support for VLAN mode, OFF mode and Extend mode；
* Support Watchdog Function；
* Lightning Protection Surge: General Mode 4KV, Differential Mode 2 KV, ESD 8KV(Air),6KV(Contact).
[Application Environment]
* Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
* Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
* Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
* Real-time monitoring: Simultaneous transmission of real-time control signals, images and data
