Quick Details
-
City of Origin:
-
Dandong
-
Item:
-
Industrial NDT Welding Inspection Equipment
-
Manufacturer:
-
Dandong Zhong Yi NDT Co., Ltd.
-
Color:
-
Yellow, blue, white
-
Directional:
-
Directional, panoramic
-
Tube Type:
-
Ceramic tube, glass tube
-
color:
-
Yellow
-
original:
-
DanDong
-
warranty:
-
12 months
-
certificate:
-
CE
Quick Details
-
Warranty:
-
12 months
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Zhongyi
-
City of Origin:
-
Dandong
-
Item:
-
Industrial NDT Welding Inspection Equipment
-
Manufacturer:
-
Dandong Zhong Yi NDT Co., Ltd.
-
Color:
-
Yellow, blue, white
-
Directional:
-
Directional, panoramic
-
Tube Type:
-
Ceramic tube, glass tube
-
color:
-
Yellow
-
original:
-
DanDong
-
warranty:
-
12 months
-
certificate:
-
CE

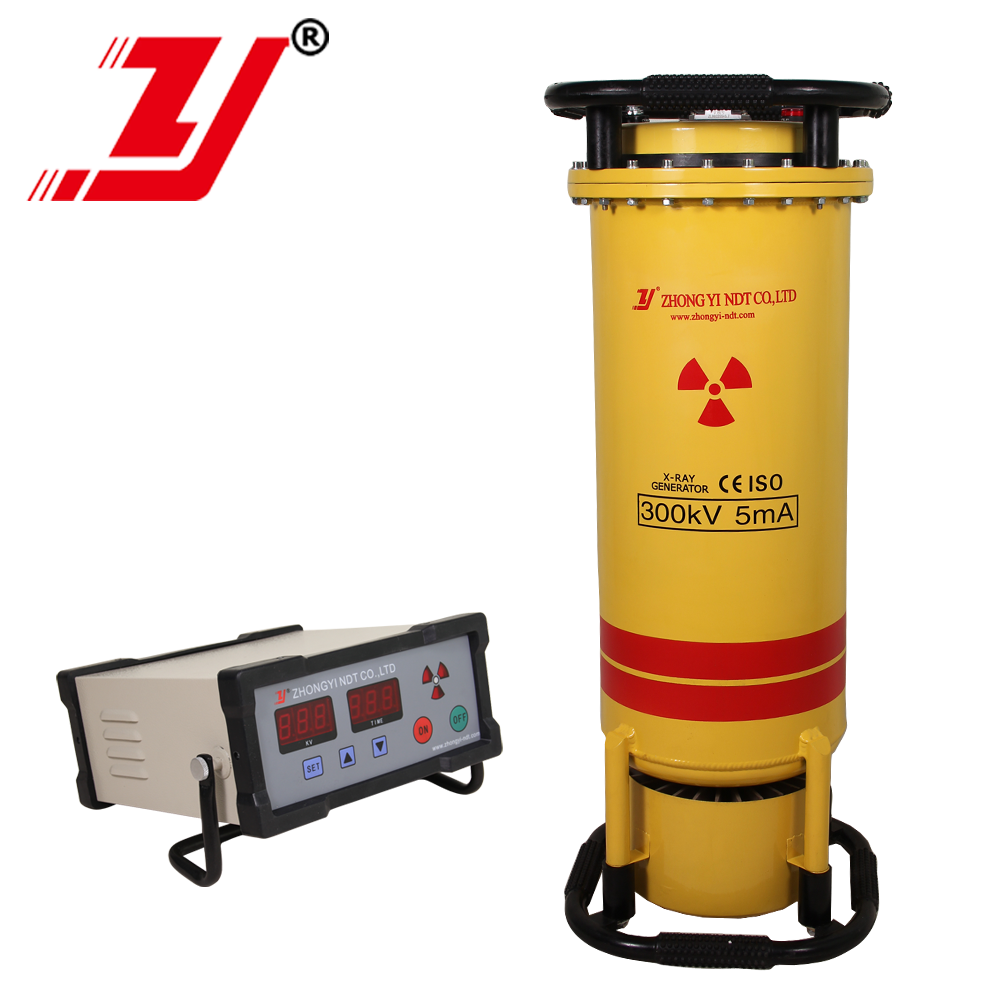

ndt Welding Inspection Equipment
ndt Welding Inspection Equipment
Characteristics:
(1) The ndt Welding Inspection Equipment Small volume, Light Weight, easy to take and simplicity of operation
(2) Safe and reliable generator adopts design of SF6 gaseous insulator, grounded-anode, and fan forced cooling .
(3) Controller adopts design of hardware with a wide operative range, having the advantage of long service and low failure rate.
(4) Excellent anti-jamming performance. Capable to operate from 180V to 250V voltage.
(5) Possess the reliable “Time –delayed” fiction, suitable to operate in the open field.
(6) High degree of automation, with the fiction of trouble self shooting and indication.
(7) Strictly followed with 1:1 working /resting radio , eliminating the disoperation.
(8) The HV windings made by imported enamel wire are applied in the X-ray generator, so as to make the quality of the complete equipment improved a great deal.
Parameters:
ndt Welding Inspection Equipment
|
Model |
Capacity (KW) |
Beam Angle |
Max.Penetration A3 steel (mm) |
Weight (kg) |
Dimensions (mm) |
output voltage (kv) |
|
XXHA-1605 |
>1.5 |
360°×30° |
15 |
15 |
210×210×620 |
60-160 |
|
XXHA-2005 |
>2.0 |
360°×30° |
24 |
20 |
207×270×665 |
80-200 |
|
XXHA-2005L |
>2.0 |
360°×30° |
24 |
16 |
210×210×620 |
80-200 |
|
XXHA-2505 |
>2.5 |
360°×30° |
34 |
35 |
320×320×720 |
130-250 |
|
XXHA-2505L |
>2.5 |
360°×30° |
34 |
23 |
270×270×640 |
130-250 |
|
XXHA-3005 |
>3.0 |
360°×30° |
40 |
44 |
340×340×820 |
150-300 |
|
XXHA-3005L |
>3.0 |
360°×30° |
40 |
35 |
320×320×720 |
150-300 |
|
XXHA-3505 |
>3.5 |
360°×30° |
50 |
42 |
340×340×820 |
200-350 |
|
Zhongyi NDT Testing X-ray Flaw Detector/X-ray Generator |
||||
|
Model |
Tube Voltage (KV) |
Capacity (KW) |
Focus Size (mm) |
Max. Penetrate (mm) |
|
XXQ-1005 |
40-100 |
> 1.0 |
1.0*1.0 |
8 |
|
XXQ-1605 |
60-160 |
> 1.5 |
1.5*1.5 |
20 |
|
XXQ-2005 |
80-200 |
> 2.0 |
1.5*1.5 |
29 |
|
XXQ-2505 |
130-250 |
> 2.5 |
2.0*2.0 |
39 |
|
XXQ-3005 |
150-300 |
> 3.0 |
2.5*2.5 |
49 |
|
XXQ-3505 |
250-350 |
> 3.5 |
2.5*2.5 |
59 |
|
XXH-1605 |
60-160 |
> 1.5 |
1.0*2.0 |
18 |
|
XXH-2005 |
80-200 |
> 2.0 |
1.0*2.4 |
26 |
|
XXH-2505 |
130-250 |
> 2.5 |
1.0*2.4 |
36 |
|
XXH-3005 |
150-300 |
> 3.0 |
1.0*3.4 |
46 |
|
XXH-3505 |
250-350 |
> 3.5 |
1.0*3.4 |
56 |
|
XXHA-1005 |
40-100 |
> 1.0 |
1.0*2.0 |
4 |
|
XXHA-1605 |
60-160 |
> 1.5 |
1.0*2.5 |
15 |
|
XXHA-2005 |
80-200 |
> 2.0 |
1.0*2.5 |
24 |
|
XXHA-2505 |
130-250 |
> 2.5 |
1.0*2.5 |
34 |
|
XXHA-3005 |
150-300 |
> 3.0 |
1.0*3.5 |
40 |
|
XXHA-3505 |
250-350 |
> 3.5 |
1.0*3.5 |
50 |
|
XXG-1605 |
60-160 |
> 1.5 |
1.5*1.5 |
20 |
|
XXG-2005 |
80-200 |
> 2.0 |
1.5*1.5 |
29 |
|
XXG-2505 |
130-250 |
> 2.5 |
2.0*2.0 |
39 |
|
XXG-3005 |
150-300 |
> 3.0 |
2.5*2.5 |
49 |
|
XXG-3505 |
250-350 |
> 3.5 |
2.5*2.5 |
70 |
FAQ:
Q 1 : Is your Company the Manufacturer or a Trading Company?
A 1 : We are a manufacturer of NDT x ray equipment in China with experience engineer working over 20 years.
Q 2 : What are the payment options?
A 2 : We accept the following payment methods: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance .
Q 3 : Do you have any products that approved by ISO or CE?
A 3 : Yes, all of our products were strictly approved by ISO and CE, and our Zhongyi products can be imported to the overseas market.
