Quick Details
-
Power (kW):
-
3kw
-
Weight (KG):
-
1200 KG
-
Name:
-
wire nail making machine
-
Type:
-
Automation
-
Usage:
-
Automatic Control Operation
-
Mode:
-
HT-NM200
-
Power:
-
1.5kw
-
Weight:
-
800kg
-
Color:
-
Optional
-
Application:
-
Steel
-
Dimension:
-
1500*1300*1200mm
Quick Details
-
Production Capacity:
-
350piece/min
-
Place of Origin:
-
Henan,China(Mainland)
-
Brand Name:
-
Honest
-
Power (kW):
-
3kw
-
Weight (KG):
-
1200 KG
-
Name:
-
wire nail making machine
-
Type:
-
Automation
-
Usage:
-
Automatic Control Operation
-
Mode:
-
HT-NM200
-
Power:
-
1.5kw
-
Weight:
-
800kg
-
Color:
-
Optional
-
Application:
-
Steel
-
Dimension:
-
1500*1300*1200mm

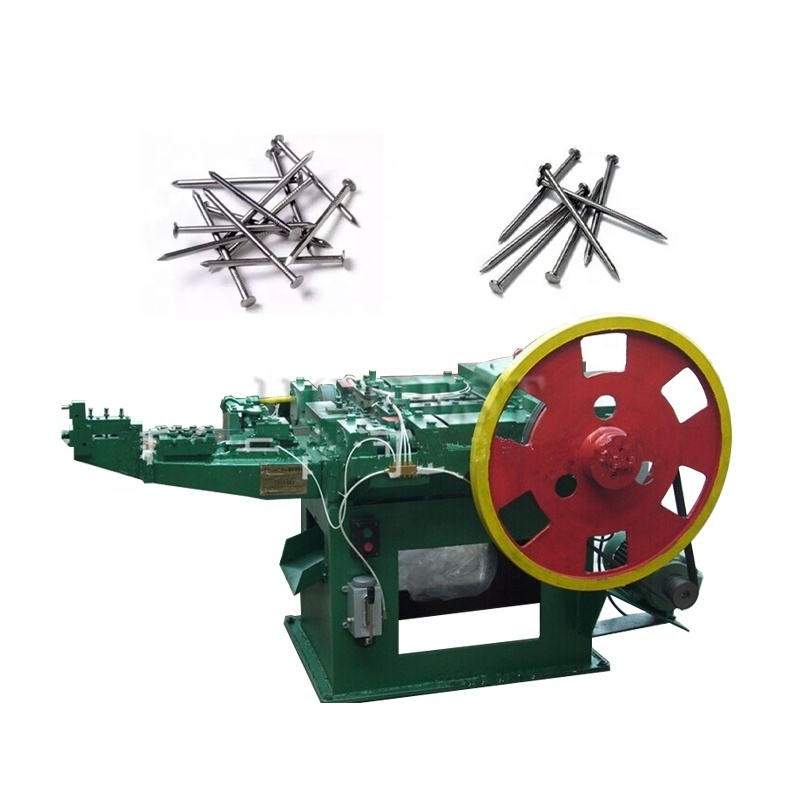

Easy Operate Competitive Nail Making Machine screw nail making machiney
Automatic nail making machine, mainly used in the manufacture of various specifications steel nail. If slightly modified, can made special steel nails, such as: Linoleum nail, V nail, U nail, roofing nail, nail, nail gun. The steel nail can be widely used for industrial, construction, repair and other aspects. The main design of the machine according to the design of the West similar high precision products, and adopt the feedback from customers at home and abroad, with favorable use, favorable operation principle, independent research and development of a new generation of rotary automatic nail making machine.
1. The device has the advantages of beautiful appearance, smooth lines, scientific and reasonable structure, the central block gap adjustment by the wedge iron type adjustment, operation and maintenance more convenient.
2. The automatic lubricating oil supply system more stable and reliable operation, which greatly reduces the noise (about 10 dB) has greatly improved the working conditions, and reduced.
3. The model specification limits, which can effectively reduce the cost of investors. Full automatic nail making process, once started, can continuously produce high-quality steel nails.
|
Technolo gy data |
unit |
HT-NM 8 00 |
HT-NM 6 00 |
HT-NM 4 00 |
HT-NM 3 00 |
HT-NM 2 00 |
HT-NM 1 00 |
|
Dia of nail max |
mm |
6.5 |
5.5 |
4.5 |
3.4 |
2.8 |
1.6 |
|
Dia of nail min |
mm |
3.4 |
3.1 |
2.8 |
1.8 |
1.2 |
0.9 |
|
Length of nail max |
mm |
203-218 |
152 |
100 |
75 |
50 |
25 |
|
Length of nail min |
mm |
100 |
70 |
50 |
30 |
16 |
9 |
|
Productivi ty |
Pcs/min |
160-220 |
180-220 |
250-280 |
300-320 |
320-350 |
460-550 |
|
Motor power |
kw |
11 |
5.5 |
4 |
3 |
2.2 |
1.5 |
|
Weight |
kg |
5500 |
2600 |
2200 |
1500 |
1200 |
600 |
|
Dimension |
mm |
3200*1850 *1800 |
2600*1700 *1700 |
2200*1600 *1650 |
2000*1400 *1400 |
1700*1300 *1400 |
1500*1300 *1200 |
If you need further information, please contact us freely, we will do our best to cooperate with you .
