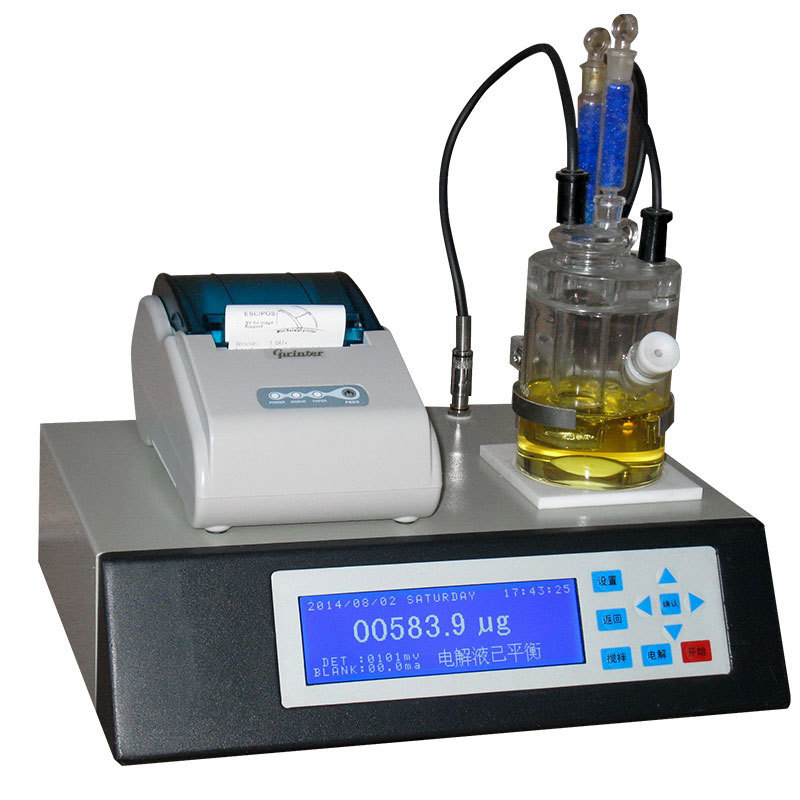

Karl fischer moisture analyzer transformer oil water content tester micro-moisture analyzer

Instrument characteristics:

The micro-moisture analyzer is the most cost-effective product launched by our company on the market, and it has been widely used in electric power, petroleum, chemical, pharmaceutical and other industries.

1. The electrolysis and measurement system uses isolated dual power supplies, which greatly improves the anti-interference ability. The whole machine adopts a relay-free design to overcome the corrosion of the circuit board and components in the humid environment and the corrosive gas environment, and ensure the accuracy of the instrument for long-term use Degree, while prolonging the life of the instrument.

2. 240*64 blue screen LCD display, full Chinese interactive menu.

3. Self-diagnosis of instrument failure.

4. Built-in 4 commonly used water content calculation formulas. It can directly display the percentage of the sample. And is equipped with a micro printer, which can directly print the test results.

5. The high current background compensation test has high accuracy, wide range and high reliability.

6. After the company's software is updated, users can upgrade for free.

Technical Parameters:

Titration method: coulometric titration

Electrolysis current: pulse current 400mA

Display: 240*64 blue screen LCD display

Power supply voltage: 220±15% (V)

Ambient temperature: 0-40 (℃)

Measuring range: 3μ g-150mg 1ppm----100%

Sensitivity: 0.1μ g

Accuracy: 3 μ g-500 μ g ± 3 μ g 0.3% above 500 μ g (without sampling error) Calculation: content calculation, multiple formula options

Print: Equipped with a micro-printer to directly print the test results.
