Quick Details
-
Place of Origin:
-
Hunan, China
-
Dimension(Long * Breadth * High):
-
3318*1600*2014mm
-
Machine Weight:
-
4400 kg
-
Bucket capacity:
-
2CBM
-
Marketing Type:
-
New Product
-
Engine:
-
KUB-OTA V3307-CR-TE5B
-
Emission level:
-
EPA Tier4F/ EU Stage
-
Peak torque:
-
195.5(265)/1500b.ft(N.m)rpm
-
Operating weight:
-
9700(4400)lb/(kg)
-
Rated operating capacity:
-
2650(1200)lb/(kg)
-
Tipping load:
-
7570(3430)lb/(kg)
-
Travel speed:
-
7.5/11.2(12/18)mph(kph)
-
Dump height:
-
97.1(2467)in(mm)
-
Dump reach:
-
35.1(891)in(mm)
Quick Details
-
Engine Brand:
-
Top Brand
-
Power:
-
55.4kW, 74.3(55.4)/2600hp(kW)/rpm
-
Brand Name:
-
Top Brand
-
Place of Origin:
-
Hunan, China
-
Dimension(Long * Breadth * High):
-
3318*1600*2014mm
-
Machine Weight:
-
4400 kg
-
Bucket capacity:
-
2CBM
-
Marketing Type:
-
New Product
-
Engine:
-
KUB-OTA V3307-CR-TE5B
-
Emission level:
-
EPA Tier4F/ EU Stage
-
Peak torque:
-
195.5(265)/1500b.ft(N.m)rpm
-
Operating weight:
-
9700(4400)lb/(kg)
-
Rated operating capacity:
-
2650(1200)lb/(kg)
-
Tipping load:
-
7570(3430)lb/(kg)
-
Travel speed:
-
7.5/11.2(12/18)mph(kph)
-
Dump height:
-
97.1(2467)in(mm)
-
Dump reach:
-
35.1(891)in(mm)
Contact
Whatsapp/Wechat/Mobile: +86-17806282946
QQ: 1158703055

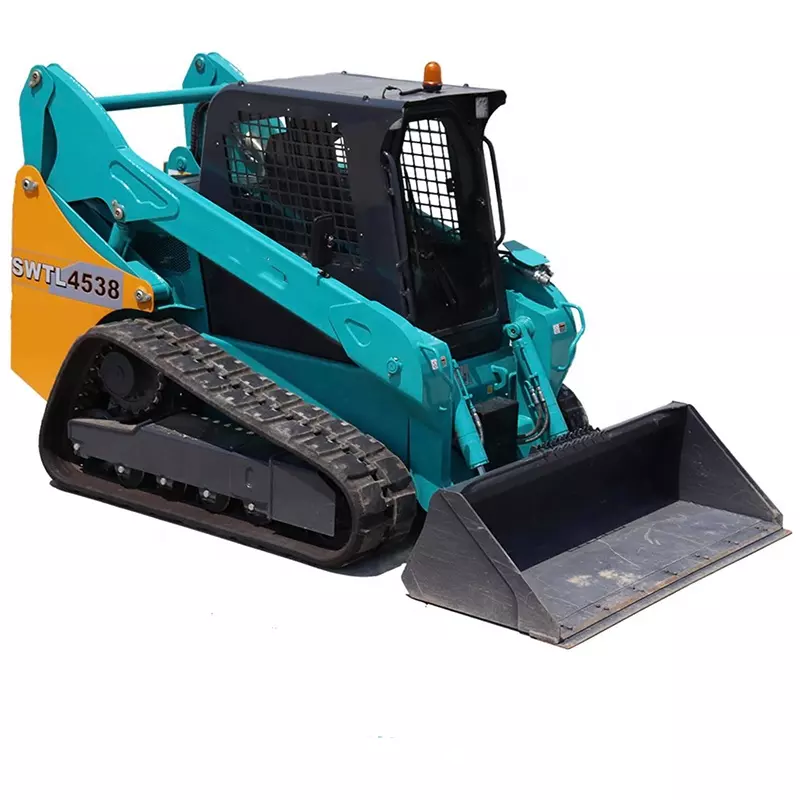

SWTL4538
Skid Steer Loader
Products Description
1. Innovative overall structure
The hydraulic oil tank, fuel tank and chassis are integrated together, saving more space and making the machine more robust.
2. Strong power system
It uses the international famous engine to ensure that the machine is capable of completing all kinds of work.
The hydraulic oil tank, fuel tank and chassis are integrated together, saving more space and making the machine more robust.
2. Strong power system
It uses the international famous engine to ensure that the machine is capable of completing all kinds of work.
3. Vertical lifting mechanism
The unique lifting mechanism enables the machine to have further discharge distance.
The unique lifting mechanism enables the machine to have further discharge distance.
4. Higher lifting height
The optimized structure design enables the machine to have the greater lifting height among the similar models.
The optimized structure design enables the machine to have the greater lifting height among the similar models.
5. Dual throttle control
Engine throttle has manual control and pedal control, which greatly facilitates the operation.
Engine throttle has manual control and pedal control, which greatly facilitates the operation.
6. Convenient maintenance
Full consideration is given to the convenience of maintenance, and daily maintenance can be completed by opening the back cover. The driver cab can turn forward with large angle.
Full consideration is given to the convenience of maintenance, and daily maintenance can be completed by opening the back cover. The driver cab can turn forward with large angle.
7. Automatic balancing system
When the swing arm rises, the bucket can keep the balanced lifting.
When the swing arm rises, the bucket can keep the balanced lifting.
8. Easy operation
Pilot handle under proportional control is easily operated and labor-saving, allowing the operator to operate the machine quickly and not to feel fatigued.
Pilot handle under proportional control is easily operated and labor-saving, allowing the operator to operate the machine quickly and not to feel fatigued.
Product Paramenters
|
Maximum overall height
|
|
in(mm)
|
160.6(4079)
|
|
|
Height to hinge pin
|
|
in(mm)
|
126.9(3222)
|
|
|
Height to top of cab
|
|
in(mm)
|
81.5(2071)
|
|
|
Height to bottom of level bucket
|
|
in(mm)
|
119.8(3044)
|
|
|
Length without standard bucket
|
|
in(mm)
|
116.9(2969)
|
|
|
Length with standard bucket
|
|
in(mm)
|
147.6(3750)
|
|
|
Maximum dump angle
|
|
-
|
44
|
|
|
Dump height
|
|
in(mm)
|
97.1(2467)
|
|
|
Dump reach
|
|
in(mm)
|
35.1(891)
|
|
|
Rollback angle (bucket on ground)
|
|
-
|
30
|
|
|
Rollback angle at maximum height
|
|
-
|
89
|
|
|
Track Gauge
|
|
in(mm)
|
63.0(1600)
|
|
|
Ground
|
|
in(mm)
|
9.0(228)
|
|
|
Departure angle
|
|
-
|
34
|
|
|
Turning radius from center (Coupler)
|
|
in(mm)
|
53.9(1368)
|
|
|
Turning radius from center (Bucket)
|
|
in(mm)
|
88.7(2253)
|
|
|
Turning radius from center (Machine rear)
|
|
in(mm)
|
68.7(1744)
|
|
|
Bumper overhang behind rear axle
|
|
in(mm)
|
33.7(855)
|
|
|
Crawler Base
|
|
in(mm)
|
76.8(1950)
|
|
|
Bucket width
|
|
in(mm)
|
79.3(2015)
|
|
|
Performance
|
Operating weight
|
lb/(kg)
|
9700(4400)
|
|
|
|
Rated operating capacity
|
lb/(kg)
|
2650(1200)
|
|
|
|
Tipping load
|
lb/(kg)
|
7570(3430)
|
|
|
|
Breakout force curl
|
lb/(kg)
|
7470(3385)
|
|
|
|
Breakout force lift
|
lb/(kg)
|
5740(2600)
|
|
|
|
Travel speed
|
mph(kph)
|
7.5/11.2(12/18)
|
|
|
Engine
|
Brand
|
|
KUB--OTA
|
|
|
|
Moadel
|
|
V3307-CR-TE5B
|
|
|
|
Type
|
|
4-cylinder,water-cooled,diesel engine
|
|
|
|
Emission level
|
|
EPA Tier4F/ EU Stage
|
|
|
|
Power
|
hp(kW)/rpm
|
74.3(55.4)/2600
|
|
|
|
Peak torque
|
b·ft(N·m)rpm
|
195.5(265)/1500
|
|
|
Electrical system
|
Starter
|
V/kW
|
12/3.0
|
|
|
|
Alternator rating
|
V/A
|
12/80
|
|
|
|
Battery
|
Ah
|
120
|
|
|
Service refill capalities
|
Hydraulic tank
|
gal(L)
|
10.6(40)
|
|
|
|
Fuel tank
|
gal(L)
|
23.8(90)
|
|
|
Hydraulic system
|
Standard flow
|
gal(L)/min
|
23.8(90)
|
|
|
|
High flow
|
gal(L)/min
|
34.4(130)
|
|
|
|
Pressure Standard flow
|
psi(bar)
|
3045(210)
|
|
|
|
Pressure High flow
|
psi(bar)
|
2393(165)
|
|
