Quick Details
-
Material:
-
different
-
Weight:
-
different
-
Size:
-
different
-
Weight (KG):
-
2000 kg
Quick Details
-
Core Components:
-
304
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
QIANKUN
-
Material:
-
different
-
Weight:
-
different
-
Size:
-
different
-
Weight (KG):
-
2000 kg
Product Description

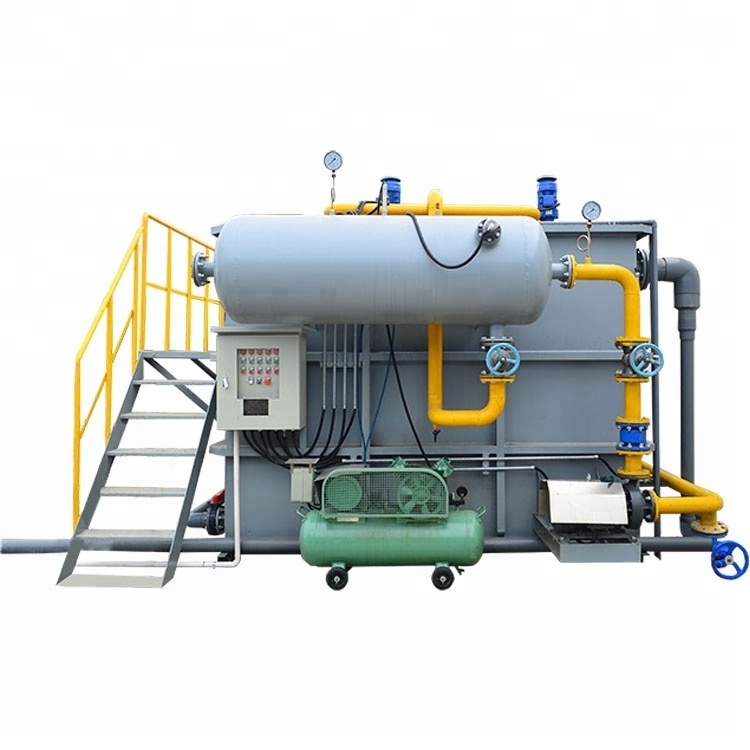

QK-DAF Dissolved Air flotation is used to treat wastewater that Contain free floating or emulsified oil, dissolved heavy metals, soaps ,surfactants ,and many other waste streams. With the features of lower power consumption, high treat efficiency, simple installation and maintenance , it is one of the most popular dissolved air flotation clarifier in China.
Working Principle
The removal is achieved by dissolving air in the water or wastewater under pressure and then releasing the air at atmospheric pressure in a flotation tank. The released air forms tiny bubbles which adhere to the suspended matter causing the suspended matter to float to the surface of the water where it may then be removed by a skimming device.
Our DAF unit designs utilize parallel plate packing material (e.g. lamellas) to provide more separation surface and therefore to enhance the separation efficiency of the unit.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Features
* Compact structure, less footprint.
* 50% lower power consumption than other equipment.
* 50% lower chemical consumption than other equipment.
* High consistency scum, up to 4%.
* Cleaner outlet water, SS removal rate ≥95%, insoluble COD removal rate ≥70%.
* 50% lower power consumption than other equipment.
* 50% lower chemical consumption than other equipment.
* High consistency scum, up to 4%.
* Cleaner outlet water, SS removal rate ≥95%, insoluble COD removal rate ≥70%.
Parameter
|
Model
|
QKDAF-10
|
QKDAF-25
|
QKDAF-50
|
QKDAF-80
|
|
Capacity(m³/h)
|
10
|
25
|
50
|
80
|
|
Dimension L*B*H(m)
|
4*2*2.25
|
6*2.5*2.25
|
8*2.8*2.55
|
9*3*2.55
|
|
Water return pump
|
4
|
5.5
|
7.5
|
11
|
|
Scraping unit motor
|
0.37
|
0.37
|
0.55
|
0.75
|
|
Air compressor motor
|
1.5
|
1.5
|
2.2
|
3
|
