Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CMP metal push button switch
-
Model Number:
-
MX22S/F6-E GREEN
-
The Crust Material:
-
stainless steel
-
Thread diameter:
-
22mm
-
The Front Shape:
-
Flat
-
Operation Type:
-
latching type
-
LED light Colors:
-
could be blue,red,white,green ,orange.
-
LED Voltage:
-
3v-24v
-
Led life:
-
4000 hours
-
Terminal Type:
-
Pin Terminal(2mm*0.5mm)
Quick Details
-
Protection Level:
-
IP68,IK10
-
Max. Current:
-
0.3A
-
Max. Voltage:
-
24v
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CMP metal push button switch
-
Model Number:
-
MX22S/F6-E GREEN
-
The Crust Material:
-
stainless steel
-
Thread diameter:
-
22mm
-
The Front Shape:
-
Flat
-
Operation Type:
-
latching type
-
LED light Colors:
-
could be blue,red,white,green ,orange.
-
LED Voltage:
-
3v-24v
-
Led life:
-
4000 hours
-
Terminal Type:
-
Pin Terminal(2mm*0.5mm)

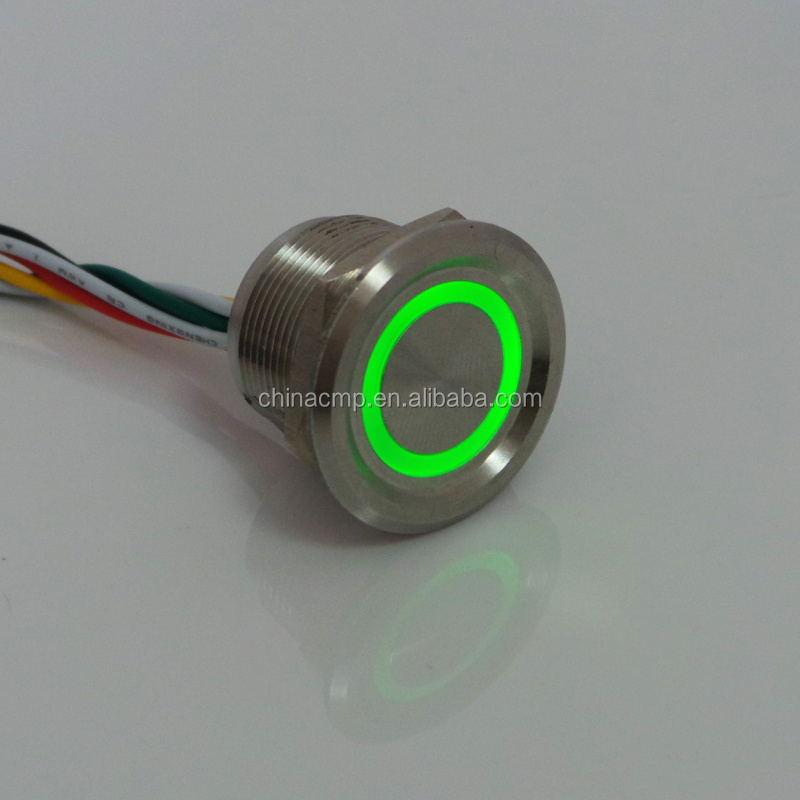

Sealed, Long Life,12v led Illuminated metal Anti-vandal Switches(covered waterproof inline switch),with CE,TUV certifications
cmp push button switch series :
Led signal lamp,metal anti-vandal switch ,waterproof sealed switch.illuminated
add Sevices : OEM/ ODM ( made to order)
Approval : TUV, CE , SGS .
LED light Colors : made to order:blue,red, white,green,orange.any color you want
ps:( illumination works by shine double colors alternately, example:red is off,green is on,nothing is electricity was turned off
LED Voltage : (made to order :3V,6V,24V,36V,48V,110V,220V)
Led current:3A
Opreation type: Momentary
Contact Material : Silver plated gold
MECHANICAL LIFE:
1,000,000 Cycles
ELECTRICAL LIFE:
50,000 Cycles
CONTACT RESISTANCE:
50mΩ Max.
INSULATION RESISTANCE:
1,000MΩ Min.
DIELECTRIC STRENGTH:
2,000VAC
Payment : T/T,PA YPAL
Shipping : DHL,EMS,TNT,Fedex with discount freight price
Dilivery time: All orders ship within 3 days of payment clearing
Our products have achieved TUV,CE and passed SGS test.We also offer OEM and ODM
service.
delivery time:3days
shipping: DHL,EMS,TNT,Fedex with discount freight price
packing :
40pcs in one plastic box and 10 pcs plastic box in a carton.If you need package pictures and change package by your request, please feel free to contact me .Email andycmp at 163 dot COM, sk ype is andy2tian
|
Vandal Resistant Push Button Switch, Stainless Steel available, Our products have achieved TUV, CE and passed SGS test.We also offer OEM and ODM service. And we Supply all products with factory price. If you are first order our products, please order some samples for trail. Follows are order process: 1. Thread diameter : We have 8mm, 12m, 16mm, 19mm, 25mm,28mm,30mm push button switches. 2. Light kinds: ring light and dot light 3. Switch kinds: momentary switch and latching switch 4. IP degree: IP65,IP 67,IP68... 5. Current and voltage: If you order switch with light, please let me know its working Current and voltage. 6. More others products, please contact me by my email or sky pe: 7.samples and smaller order as follows: (1).when you order some samples and smaller order, please contact m by email or skpye for confirming its details. (2).payment: samples and smaller order pay by pa ypal or T/T. Less 2pcs samples order, samples are free, but must pay for shipping freight. Why samples must pay shipping freight? 1.if you pay for samples, when you test samples, if you have any questions, you will contact me.If all are free, you may be won't serious support samples testing and feedback. 2. If user buy products, they won't pay higher cost order by internaiontal express cost.I hope our customer order many pieces and some one are wholesaler. (3).Shipping policies: Multiple Item Shipping Discount
Shipping is full price for the most expensive shipping item and 50% off the shipping price for each additional item purchased. To receive your combined shipping discount, it is very important that you do not pay for each item individually. Instead, purchase each item that you would like from us and then pay once. Your shipping will be automatically combined for you at that time. Estimated shipping time: 3-9 days (DHL,EMS,TNT,Fedex,UPS...) (4).Customer Service
· We strive to provide excellent customer service · All emails will be answered within 24 hours · Open Monday to Friday. Close on all Holidays · Contact us if you have any questions regarding our products (5). Privacy Policy We do not share any customer data or information outside of the company except where necessary to ship product to you. (6).Return Policy When you receive your shipment, please inspect the packaging carefully, and note with the delivery driver any damage to the packaging at the time. If possible, take pictures and send them to us - and we will assist you in replacing your order. It is important to note, that you must notify us within 3 business days of damage from delivery.
Customer is responsible for return freight.
Of course, customer satisfaction is always our goal - so don't hesitate to contact us! |
