Quick Details
-
Application:
-
Villa
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OCM
-
Model Number:
-
FCB006
-
Product Name:
-
cement glass fiber board reinforced concrete panels
-
Width:
-
1220mm
-
Length:
-
2440mm
-
Thickness:
-
6mm
-
Density:
-
>=1.2g/cm3
-
Moisture Content:
-
<=10%
-
Water Absorbing Capacity:
-
<=55%
-
Color:
-
Grey,black
-
Bending Strength:
-
Transverse>=11.0N/mm3 Vertical>=8.5N/mm3
-
Fire Resistance:
-
Incombustibility A Class(GB8624-A)
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Villa
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OCM
-
Model Number:
-
FCB006
-
Product Name:
-
cement glass fiber board reinforced concrete panels
-
Width:
-
1220mm
-
Length:
-
2440mm
-
Thickness:
-
6mm
-
Density:
-
>=1.2g/cm3
-
Moisture Content:
-
<=10%
-
Water Absorbing Capacity:
-
<=55%
-
Color:
-
Grey,black
-
Bending Strength:
-
Transverse>=11.0N/mm3 Vertical>=8.5N/mm3
-
Fire Resistance:
-
Incombustibility A Class(GB8624-A)

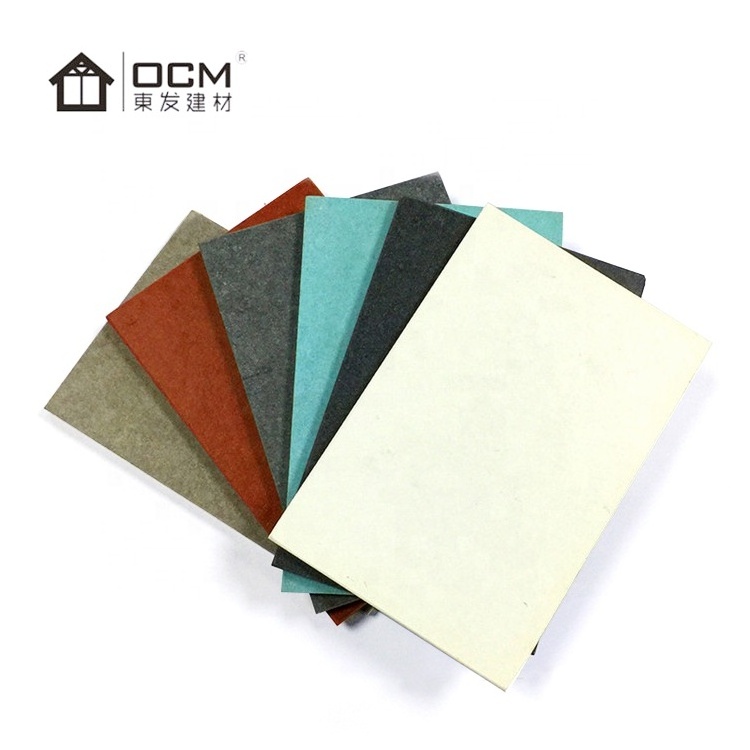

Internal And External Wall Cement Concrete Panels Fiber Cement Board
Fiber Cement Board (Non Asbestos)
Fiber Cement Board is a composite material made of quartz sand, cement and cellulose fibers. This product adopts imported pure paper pule from Canada, not included waste paper pulp. Fiber cement board is manufactured in a sheet form and they are used for interior and exterior suspension, partition and flooring application.The normal size is 1220×2440mm,thickness from 4~20mm, and density is 1.3~1.6g/cm3. There are low-density, middle-density and high-density.
The product is available in custom (color, size, thickness, etc.)
Standard size:
| 1200*2400*4-20mm | Selectable other specifications Selectable abrasive finishing on right surface |
| 1220*2440*4-20mm | |
| 1220*2745*4-20mm | |
| 1220*3050*4-20mm |
| Size | Max Width: 1220mm | Max Length:3050mm | Thickness:4mm-20mm |
| Edge Type |
Square Edge |
L Edge |
Tapered Edge |
| Product name |
Density
(g/cm3) |
Antiflex cracking strength
Mpa
|
Water absorption rate
%≤ |
Water impermeability |
Freezing resistance |
Incombustibility | Radioactivity |
| Fiber cement board | 1.1~1.4 | 14 | 35 | After 24 hours of water immersion, no water droplets appear on the bottom surface | 25 cycles of freeze-thaw, no delamination, etc. | Conforming to GB8624 A Class | Conforming to GB6566-2001 A Class |
| 1.4~1.7 | 18 | 26 |
Internal and external wall cement glass fiber board reinforced concrete panels application and advantages
| Application | Performance advantages | |
| Exterior Wall | Exterior decoration panel | Surface flat and smooth, can meet higher requirement for coating |
| Integrative façade panel for exterior wall thermal insulation | ||
| Interior wall decoration panel | Easy for different surface processing, like UV, Polyester, Inorganic, Marbling etc. | |
| Flooring | Loft interlayer | High strength and toughness |
| Container house | ||
| Light steel villa | ||
| Other application | Subway/Tunnel/Baseboard | High strength and toughness, large size, smooth surface, and easy for surface treating |
| Outdoor furniture | ||
| Thinner lining board for stone | Smooth surface and high strength | |
