- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Smart
-
Copper Thickness:
-
0.5oz, 1.0oz, 2oz, 3oz,
-
Min. Hole Size:
-
0.2mm
-
Min. Line Width:
-
4/4mil(0.1/0.1mm)
-
Min. Line Spacing:
-
4/4mil(0.1/0.1mm)
-
Surface Finishing:
-
HASL, Lead free HASL, OSP
-
Board Size:
-
custom
-
color:
-
Green, yellow, black, white, red, blue
-

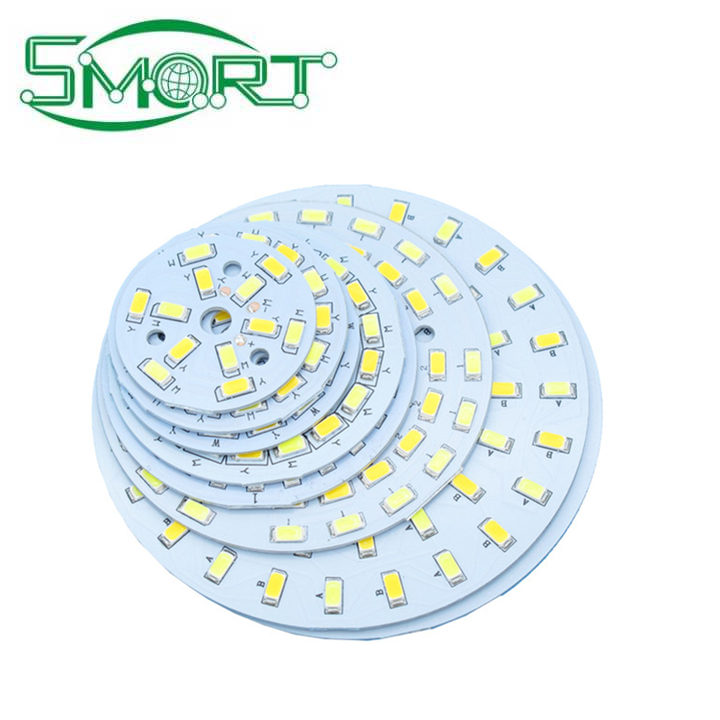

led pcb:
-
led pcb board
Quick Details
-
Base Material:
-
FR-4, FR-1, CEM-1, CEM-3, FR-4 Halogen Free
-
Board Thickness:
-
0.4mm-3.2mm
-
Model Number:
-
Aluminum PCB-001
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Smart
-
Copper Thickness:
-
0.5oz, 1.0oz, 2oz, 3oz,
-
Min. Hole Size:
-
0.2mm
-
Min. Line Width:
-
4/4mil(0.1/0.1mm)
-
Min. Line Spacing:
-
4/4mil(0.1/0.1mm)
-
Surface Finishing:
-
HASL, Lead free HASL, OSP
-
Board Size:
-
custom
-
color:
-
Green, yellow, black, white, red, blue
-
led pcb:
-
led pcb board
Products Description
Please kindly send us your gerber file and bom list
for quotation ,and please also inform the order quantity
|
PCB Capacities and Technical Specification
|
|
|
|
Order Quantity
|
1-500,000
|
|
|
Layer
|
1, 2, 4, 6, up to 24 layer
|
|
|
Material
|
FR-4, High Tg, Isola, Aluminum, Rogers, etc
|
|
|
PCB type
|
Rigid, flexible, rigid-flexible
|
|
|
Shape
|
Rectangular, round, slots, cutouts, complex, irregular
|
|
|
Max PCB dimensions
|
1200mm*600mm
|
|
|
Thickness
|
0.2~4.0mm, Flex 0.01~0.25''
|
|
|
Thickness tolerance
|
± 10%
|
|
|
Copper thickness
|
0.5-6 oz
|
|
|
Copper thickness tolerance
|
± 0.25oz
|
|
|
Surface finish
|
HASL, LF HASL, Imm Gold, Imm Silver, OSP etc
|
|
|
Solder mask
|
Green, red, white, yellow, blue, black, orange, purple
|
|
|
Silk screen
|
White, black
|
|
|
Silk screen min line width
|
0.006'' or 0.15mm
|
|
|
Min drill hole diameter
|
0.01'', 0.1mm or 10 mil
|
|
|
Min trace/gap
|
0.075mm or 3mil
|
|
|
PCB cutting
|
Shear, V-score, tab-routed
|
|
|
PCBA Capabilities
|
|
|
|
Turnkey PCBA
|
PCB+components sourcing+assembly+package
|
|
|
Assembly details
|
SMT and Thru-hole, ISO SMT and DIP lines
|
|
|
Lead Time
|
Prototype : 15 work days. Mass order : 20~25 work days
|
|
|
Testing on products
|
Testing jig/mold , X-ray Inspection, AOI Test, Functional test
|
|
|
Quantity
|
Min quantity : 1pcs. Prototype, small order, mass order, all OK
|
|
|
Files needed
|
PCB : Gerber files(CAM, PCB, PCBDOC)
Components : Bill of Materials(BOM list) Assembly : Pick-N-Place file |
|
|
PCB Panel Size
|
Min size : 0.25*0.25 inches(6*6mm)
Max size : 1200*600mm |
|
|
Components details
|
Passive Down to 0201 size
BGA and VFBGA Leadless Chip Carriers/CSP Double-sided SMT Assembly Fine Pitch to 0.8mils BGA Repair and Reball Part Removal and Replacement |
|
|
Component package
|
Cut Tape, Tube, Reels, Loose Parts
|
|
|
PCB+ assembly process
|
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave
Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |
|
