TYVAC use double layer of stainless steel 304 to manufacture the vacuum chamber , with advanced welding technology and ensure the
air tightness of the chamber . better vacuum pressure protection capability ,higher ultimate vacuum , More durable service life.
and built in high power heater and ensure the temperature inside the chamber .
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
TONGYI
-
Voltage:
-
380V or customized
-
Power:
-
Custom Made
-
Dimension(L*W*H):
-
Custom Made
-
Weight (KG):
-
5000
-
After-sales Service Provided:
-
Engineers Service Machinery Overseas
-
Technology:
-
Multi Arc + Sputtering
-
Advantage:
-
High Efficiency Low Cost
-
Chamber Material:
-
Stainless Steel 304
-
paint colo:
-
Gold, Rose Gold, Blue, Gray, Black, Rainbow
-
controlling system:
-
PLC Touch Screen
-
business type:
-
manufacturer/supplier
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
pump system orign:
-
basis on your request
-
product:
-
Magnetron sputtering vacuum coating Machine
Quick Details
-
Machine Type:
-
Coating Equipment,PVD vacuum coating machine, Coating Equipment
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TONGYI
-
Voltage:
-
380V or customized
-
Power:
-
Custom Made
-
Dimension(L*W*H):
-
Custom Made
-
Weight (KG):
-
5000
-
After-sales Service Provided:
-
Engineers Service Machinery Overseas
-
Technology:
-
Multi Arc + Sputtering
-
Advantage:
-
High Efficiency Low Cost
-
Chamber Material:
-
Stainless Steel 304
-
paint colo:
-
Gold, Rose Gold, Blue, Gray, Black, Rainbow
-
controlling system:
-
PLC Touch Screen
-
business type:
-
manufacturer/supplier
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
pump system orign:
-
basis on your request
-
product:
-
Magnetron sputtering vacuum coating Machine

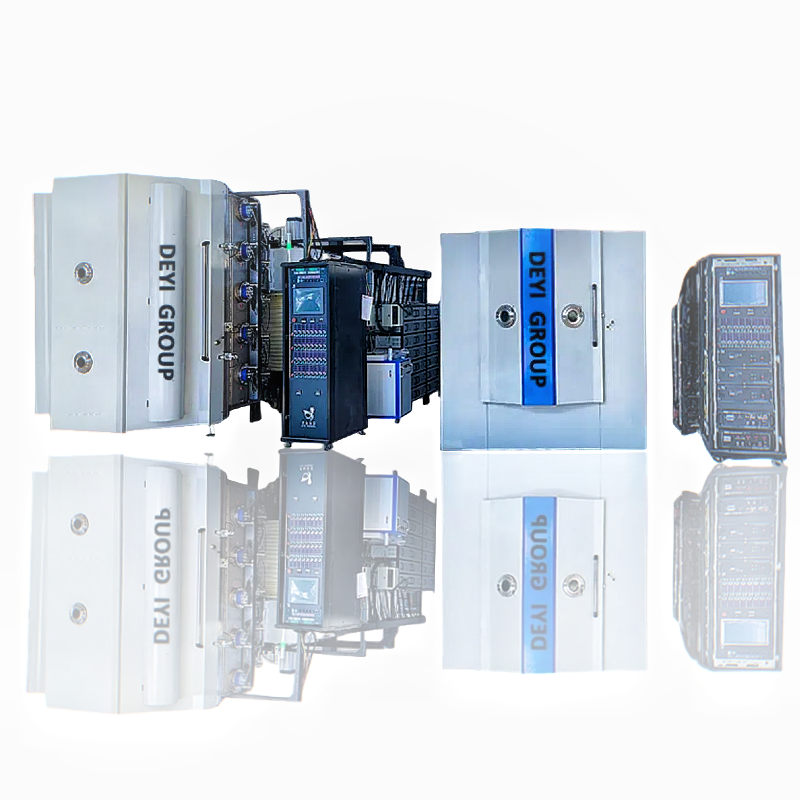

Product Description
TONGYI Vacuum Coating Machine closely follows the advancements in international vacuum technology. With an advanced design concept and the rapid development and application of new technologies, the company ensures the production of high-tech and high-level products. The machine finds widespread applications in various industries, including industrial products, civilian daily necessities, precision optics, solar photovoltaic, display, semiconductor, power devices, tools and dies, aviation, ships, vehicle batteries, lighting, interior and exterior decoration, smartphones, 3C electronic products, hardware watches, plastics, ceramics, glass, and others.
Machine Parameter
|
DY Multi Arc Ion vacuum coating machine model and technical parameter
(hardware, ceramic, cutlery etc ) |
|
|
|
|
|
|
||||||
|
model
|
DY-700
|
DY -900
|
DY -1000
|
DY -1250
|
DY -1400
|
DY -1600
|
||||||
|
Chamber size(mm)
|
Ф700×H900
|
Ф900×H1100
|
Ф1000×H1200
|
Ф1250×H1350
|
Ф1400×H1600
|
Ф1600×H1800
|
||||||
|
Power type
|
Arc power, filament power, pulse bias power
|
|
|
|
|
|
||||||
|
Vacuum chamber structure
|
Vertical front door structure, postposition sucking gas system, double layer water cooling chamber
|
|
|
|
|
|
||||||
|
Vacuum chamber material
|
High quality stainless steel chamber
|
|
|
|
|
|
||||||
|
Ultimate vacuum
|
6.0×10-4Pa
|
|
|
|
|
|
||||||
|
Pumping time(no load)
|
pumping from atmosphere to 8.0×10-3Pa≤15per minutes
|
|
|
|
|
|
||||||
|
Vacuum pumping system |
Diffusion or molecular pump+ Roots pump+ mechanical pump+ holding pump
(The detailed model need to collocate according to customer need) |
|
|
|
|
|
||||||
|
Arc power
|
4 sets or 6 sets
|
6 sets or 8 sets
|
8 sets or 10 sets
|
10 sets or 12 sets
|
14 sets or 16 sets
|
16 sets or 18 sets
|
||||||
|
Bias power
|
10KW/set
|
20KW/set
|
20KW/set
|
30KW/set
|
40KW/set
|
50KW/set
|
||||||
|
Workpiece rotating method
|
Planetary revolution and rotation, inverter control(controlled and adjustable)
|
|
|
|
|
|
||||||
Our Advantage
Double layer Vacuum Chamber
Excellent vacuum pumping system
Our machine choose the famous Chinese brand pump for the vacuum pumping system . its Vacuum is fast and steady .to obtain high
efficiency coating cycle time , greatly reduces the vibration frequency and energy consumption of the equipment . We can offer the
import brand pump service if the customer required .Such Leybold ,Osaka, Shimadzu ,Pfeiffer etc .
efficiency coating cycle time , greatly reduces the vibration frequency and energy consumption of the equipment . We can offer the
import brand pump service if the customer required .Such Leybold ,Osaka, Shimadzu ,Pfeiffer etc .
Control System and Famous Electrical Production
Delta DVP series PLC programmable industrial controller, the whole machine automatic monitoring, protection, control, coating.
With manual, semi-automatic, fully automatic functions.
With manual, semi-automatic, fully automatic functions.
TYVAC’s 10th Arc Source and the Parts
Equipped with TYVAC’s 10th generation high-performance arc power supply and cathode arc source device , it means more uniform
coating film , leading reliable performance of continuous coating DYVAC keep the technology R&D , so the technology are
progressing .
coating film , leading reliable performance of continuous coating DYVAC keep the technology R&D , so the technology are
progressing .
Finished Product Photo
