Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FILN
-
Model Number:
-
FLM19-JT-1
-
MOQ:
-
1pcs
-
Mouting hole:
-
19mm
-
Certificate:
-
CE ROHS
-
Package:
-
50pcs/box
-
Accessories:
-
1pcs nut and 1pcs rubber
-
Pin size:
-
2.8x0.6mm
-
Function:
-
1NO1NC or 2NO2NC
-
Material:
-
Stainless Steel and plastic
-
Switch type:
-
Knob switch
-
Head color:
-
Red
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP65,IK10
-
Max. Current:
-
5A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FILN
-
Model Number:
-
FLM19-JT-1
-
MOQ:
-
1pcs
-
Mouting hole:
-
19mm
-
Certificate:
-
CE ROHS
-
Package:
-
50pcs/box
-
Accessories:
-
1pcs nut and 1pcs rubber
-
Pin size:
-
2.8x0.6mm
-
Function:
-
1NO1NC or 2NO2NC
-
Material:
-
Stainless Steel and plastic
-
Switch type:
-
Knob switch
-
Head color:
-
Red
-
Certification:
-
CE

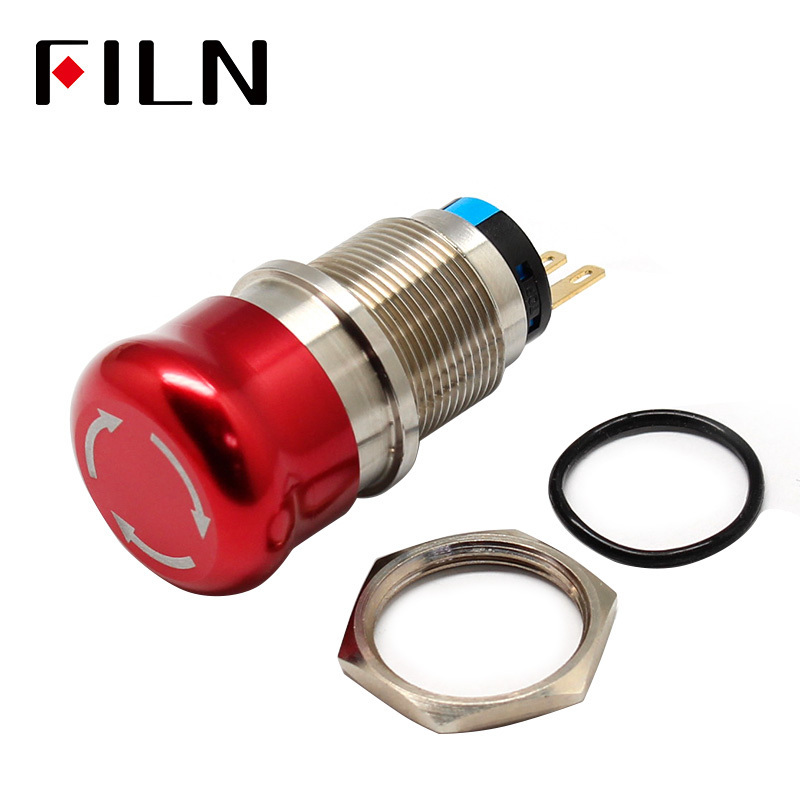

Product Description
| Product Name | Push Button Switch |
| Model | FLM19-JT-1 |
| Mounting Hole | 19mm |
| Operation Type | kNOB SWITCH |
| Switch Combination | 1NO1NC or 2NO2NC |
| Actuator Type | Flat |
| Terminal type | 3 Pin Terminals |
| Illuminanted or not | / |
| Led Voltage | / |
| Led Color |
/ |
| Illuminated Type | / |
| Enclosure Material | Stainless steel |
| Delivery Days | 1-3 days |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Customized symbol,colored housing or Connector | Acceptable and with fast shipping |
| Accessories | Nut, Rubber Gasket |
| Order Confirm | / |
| Wiring Harness | / |
