Quick Details
-
Model Number:
-
LH191-W210
-
Color:
-
Black, Silver
-
Plugs Type:
-
US, EU, UK, JP, AU, CN, KR
-
Operating System:
-
Windows7/10/11, Ubuntu16.04.7/8.04.5/20.04.3
-
Processor Type:
-
J4125/J1900/I3/I5/I7
-
Product name:
-
Embedded Industrial Touch Panel Pc
-
Panel Type:
-
Industrial grade LCD backlight
-
WIFI, Enternet, 3g, 4g, blue-tooth:
-
Yes
-
Interface:
-
DC, 2*USB2.0, 2*USB3.0, 2*LAN, 1*HD MI, 1*SIM, 1*VGA, Audio I/O, 2*COM
-
Material:
-
Aluminum alloy enclosure
-
Brightness:
-
300 Cd/m2/Higher Customized
-
Touch screen:
-
Capactive/resistive/non-touch
-
Seamless front panel:
-
IP65 waterproof
-
Certification:
-
CCC/CE/FCC/EMC/CB/ROHS
-
Power Supply:
-
12V/5A
Quick Details
-
Hard Drive Type:
-
SSD
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LH, OEM, ODM
-
Model Number:
-
LH191-W210
-
Color:
-
Black, Silver
-
Plugs Type:
-
US, EU, UK, JP, AU, CN, KR
-
Operating System:
-
Windows7/10/11, Ubuntu16.04.7/8.04.5/20.04.3
-
Processor Type:
-
J4125/J1900/I3/I5/I7
-
Product name:
-
Embedded Industrial Touch Panel Pc
-
Panel Type:
-
Industrial grade LCD backlight
-
WIFI, Enternet, 3g, 4g, blue-tooth:
-
Yes
-
Interface:
-
DC, 2*USB2.0, 2*USB3.0, 2*LAN, 1*HD MI, 1*SIM, 1*VGA, Audio I/O, 2*COM
-
Material:
-
Aluminum alloy enclosure
-
Brightness:
-
300 Cd/m2/Higher Customized
-
Touch screen:
-
Capactive/resistive/non-touch
-
Seamless front panel:
-
IP65 waterproof
-
Certification:
-
CCC/CE/FCC/EMC/CB/ROHS
-
Power Supply:
-
12V/5A
LHDE Industrial Panel PC Strengths
1.
Own factory, fast Production, factory direct prices, 100% original quality and strict QC inspection before shipment;
2. Sample order is welcomed and will be delivered 1~5 days, 3 Years warranty;
3. A full range of one-stop customized services;
4. All materials are selected by industrial-grade standards, and the product quality is guaranteed;
5. The product is stable and reliable, and has passed rigorous high and low temperature, static electricity, pressure, vibration, drop, aging tests and other reliability tests;
6. WIth rich experience and professional qualifications in the industrial computer industry, accumulate more than 1,000+ projects case. Provide 1-to-1 project special services to help the application of projects in various industries.
Product Description
LHDE

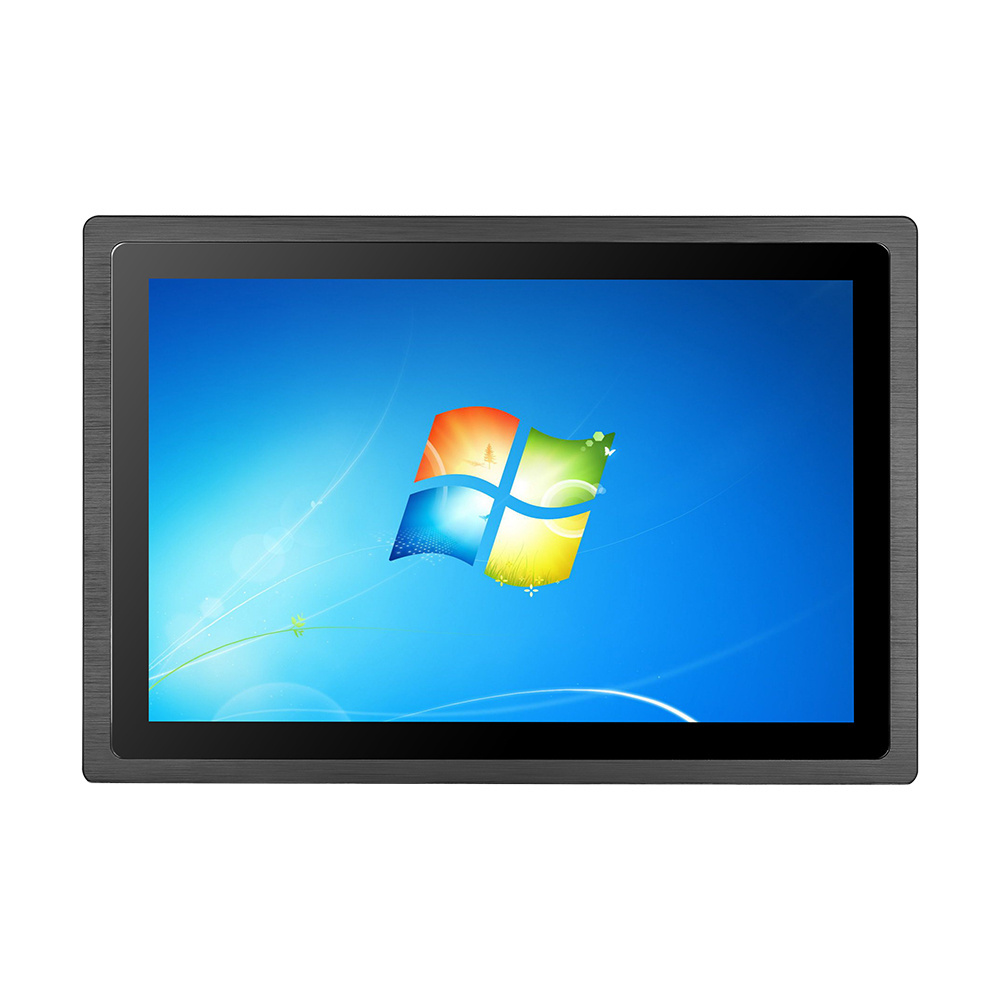

Industrial Touch Panel PC O
verview:
LHDE Industrial Panel PC features IP65 full flat front bezel design, supports both resistive touch and projected capacitive touch screen with pure flat, multi-touch, anti-scratching, and high brightness as options. With fanless design, aluminum die-casting housing and wide temperature options, it offers 24/7 reliability in the industrial applications. Powered by Intel® Celeron CPU and Intel® Core CPU, it comes with various I/O ports e.g. Dual LAN, Serial and USB ports as default, its onboard Mini-PCIe slot offers additional options such as WiFi, 4G LTE, Bluetooth, CAN Bus, POE, back battery etc.
This makes the robust industrial panel pc ideal for Industry 4.0, such as HMI in industrial PLCs, in vending and/or payment machines (i.e. interactive displays) and in all sectors requiring operator intervention.
|
7"
|
16:9/ 1024*600
|
8"
|
4:3/1024*768
|
10.1"
|
16:10/ 1280*800
|
|
|
10.4"
|
4:3/ 1024*768
|
11.6"
|
16:9/ 1920*1080
|
12"
|
4:3/ 1024*768
|
|
|
12.1"
|
16:10/ 1280*800
|
13.3"
|
16:9/ 1920*1080
|
15"
|
4:3/ 1024*768
|
|
|
15.6"
|
16:9/ 1920*1080
|
17"
|
4:3/ 1280*1024
|
17.3"
|
16:9/ 1920*1080
|
|
|
18.5"
|
16:9/ 1920*1080
|
19"
|
4:3/ 1280*1024
|
19.1"
|
16:10/ 1440*900
|
|
|
21.5"
|
16:9/ 1920*1080
|
23.8"
|
16:9/ 1920*1080
|
|
||
I
nterface Layout (
Welcome to customize I/O ports)
Application
Intel core i3/i5/i7/Intel Celeron J1900/J4125 Industrial Touch Screen Panel PC can be used in industrial automation equipment control, military, communications, electric power, big data, Internet, self-service terminal equipment, artificial intelligence and other fields. Such as factory equipment control, ATM, POS, indoor or outdoor Kiosks, transportation, advertisement machine, gaming, medical, agricultural equipment, marine, online training, tractors, wrecker tow truck, welding machine etc.
APPLICATION SECTORS
>Industrial automation
>Power cabinet
>Agricultural engneering
>Transport and logistics
>Food industry
>Aerospace
>Education
>Marine
>Railway
>Pharmaceutical industry
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Specification
|
Standard product specifications, can be customized as needed
|
|
|
||
|
|
Size
|
7'', 8'', 10.1'', 10.4'', 11.6'', 12'', 12.1'', 13.3", 15'', 15.6'', 17'', 17.3'', 18.5", 19'', 19.1'', 21.5'', 23.8''
|
||
|
|
Color
|
Black/ Silver
|
||
|
|
Material
|
Aluminum alloy metal material
|
||
|
|
Touch type
|
Capacitive/ Resistive/ Non-touch
|
||
|
|
Brightness
|
220~500cd/m²
|
||
|
|
CPU
|
Intel Celeron J4125 quad-core 2GHz (Maximum RF: 2.7GHz)
|
||
|
|
Memory
|
4G DDR4 2400MHz (Optional 8G)
|
||
|
|
Storage
|
64G SSD (Optional：128/256/512G)
|
||
|
|
Integrated graphics
|
Intel UHD Graphics 600
|
||
|
|
Operating system
|
Windows7/10/11; Ubuntu16.04.7/8.04.5/20.04.3; Centos7.6/7.8
|
||
|
|
WiFi
|
2.4GHz/5GHz, Dual frequency WiFi
|
||
|
|
USB
|
2*USB 2.0, 2*USB 3.0
|
||
|
|
Network interface
|
2*LAN, 1*Realtek PCI-E NIC RTL8111H (Applicable to 1000Mbps)
1*Realtek PCI-E NIC RT8152B (Applicable to 1000Mbps) |
||
|
|
HDMI
|
1*HDMI, Support HDMI data output, maximum support 1080P
|
||
|
|
VGA
|
1*VGA
|
||
|
|
SIM
|
1*SIM, Supporting various formats (Depending on 3G/4G module)
|
||
|
|
COM
|
2*RS232
|
||
|
|
Power interface
|
1*DC2.5, Supporting wide voltage 12V-36V power supply
|
||
|
Product Reliability
|
Front panel protection
|
IP65 waterproof and dustproof
|
||
|
|
Working temperature
|
-10°C~60°C
|
||
|
|
Product certification
|
CCC/CE/FCC/EMC/CB/ROHS
|
||
|
|
Warranty Policy
|
Three year warranty
|
||
Customized Services
Quick OEM/ODM Customized Service
LHDE has dedicated team for R&D, pre-sales and after-sales service and has accumulated rich OEM&ODM business experience in ten years, LHDE is committed to providing global customers with highly customized solutions in diverse application fields, and has especially accumulated rich experience and countless case studies of AIoT, industrial automation, transportation, smart retail, smart education, energy management and smart agriculture.
