Quick Details
-
Warranty:
-
3years
-
Brand Name:
-
Flagsun
-
Model Number:
-
FSB120W-F3M
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
515*510*30mm
-
OEM Order:
-
Acceptable
-
Solar Cell:
-
Shingled cell
-
Number of Cells:
-
27(3*3*3)
-

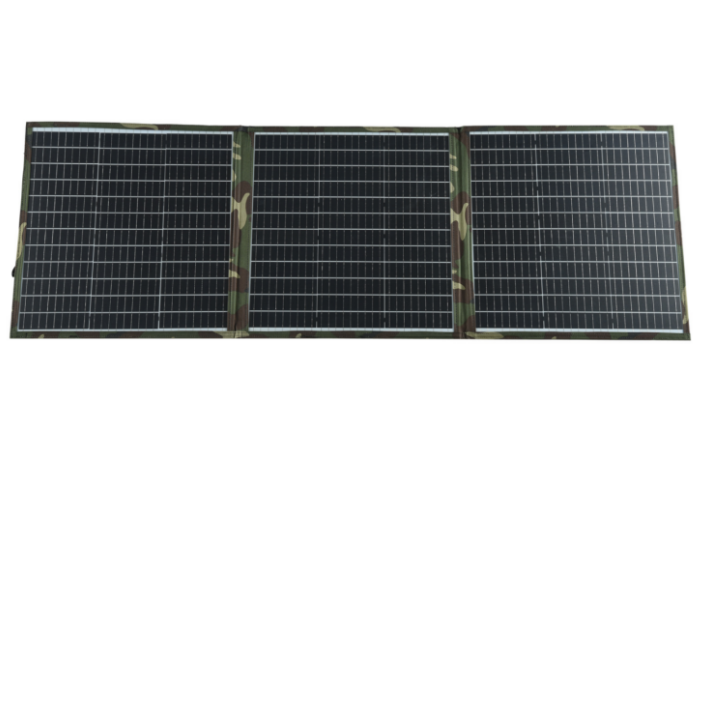

Open Size:
-
1540*510*15mm
-
Weight:
-
4.1 kg
-
Front:
-
Polish PET & ETFE
-
Bag Material:
-
1680D
-
Bag Color:
-
Camouflag, Black or OEM color
-
Maximum Series Fuse Rating:
-
10A
-
Maximum System Voltage:
-
1000V DC
-
Certificate:
-
CE/TUV/ISO
Quick Details
-
Cell size:
-
166mmx166mm
-
Type:
-
Overlapping, Foldable, Mono-crystalline
-
Panel Efficiency:
-
120W
-
Warranty:
-
3years
-
Brand Name:
-
Flagsun
-
Model Number:
-
FSB120W-F3M
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
515*510*30mm
-
OEM Order:
-
Acceptable
-
Solar Cell:
-
Shingled cell
-
Number of Cells:
-
27(3*3*3)
-
Open Size:
-
1540*510*15mm
-
Weight:
-
4.1 kg
-
Front:
-
Polish PET & ETFE
-
Bag Material:
-
1680D
-
Bag Color:
-
Camouflag, Black or OEM color
-
Maximum Series Fuse Rating:
-
10A
-
Maximum System Voltage:
-
1000V DC
-
Certificate:
-
CE/TUV/ISO
Product Description
|
Electrical Characteristics
|
|
|
|
Model
|
FSB120w-F3M
|
|
|
Maximum Power at STC (Pmax)
|
120 W
|
|
|
Optimum Operating Voltage (Vmp)
|
18.10V
|
|
|
Optimum Operating Current (Imp)
|
6.63 A
|
|
|
Open - Circuit Voltage (Voc)
|
21.50V
|
|
|
Short - Circuit Current (Isc)
|
7.30A
|
|
|
Module Efficiency
|
21.5%
|
|
|
Power Tolerance
|
0~+3 %
|
|
|
Operating Module Temperature
|
-20℃ to +50℃
|
|
|
Maximum System Voltage
|
1000V DC
|
|
|
Maximum Series Fuse Rating
|
10A
|
|
|
Mechanical Characteristics
|
|
|
|
Solar cell
|
Mono shingle cell
|
|
|
No.of Cells
|
3*3*3
|
|
|
Open Size
|
1540*510*15mm
|
|
|
Weight
|
4.1kg
|
|
|
Front Glass
|
Polish PET& ETFE
|
|
|
Frame
|
N/A
|
|
|
Bag Material
|
1680D
|
|
|
Output Cables
|
TUV(2Pfg1169:2007), UL 4703,UL 44
Optional
4.0 mm²,symmetical lengths(-)1000mm and (+)1000mm |
|
|
Connectors
|
SOLAR MC4
integrated twist locking connectors
|
|
|
Temperature Characteristics
|
|
|
|
Nominal Operating Cell Temperature (NOCT
|
46±2°℃
|
|
|
Temperature Coefficient of Pmax
|
-0.45%/°℃
|
|
|
Temperature Coefficient of Voc
|
-0.35 %/℃
|
|
|
Temperature Coefficient of lsc
|
0.05 %/℃
|
|
|
Warranty
|
|
|
|
3-year limited power output warranty:
1 years/95%,3 years/90%,10 years/85%,20 years/80% Based on nominal power
1 years material and workmanship warranty
|
|
|
