Quick Details
-
Shape:
-
plate,mesh,tube and so on
-
Material:
-
titanium
-
Chemical Composition:
-
99.99% titanium
-
Product name:
-
Platinum Platinized Plated Titanium Anode For Electrolysis
-
Color:
-
white
-
Usage:
-
cathodic protection , electrosynthesis ,chlorate ,perchlorate
-
Certificate:
-
ISO9001
-
Standard:
-
ASTM
-
Appearance:
-
Smooth
-
Technology:
-
electroplate
-
Size:
-
According to customer's requirement
-
Free sample:
-
Free sample available
-
Substrate:
-
Titanium,Niobium,Zirconium
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OEM
-
Model Number:
-
OEM
-
Shape:
-
plate,mesh,tube and so on
-
Material:
-
titanium
-
Chemical Composition:
-
99.99% titanium
-
Product name:
-
Platinum Platinized Plated Titanium Anode For Electrolysis
-
Color:
-
white
-
Usage:
-
cathodic protection , electrosynthesis ,chlorate ,perchlorate
-
Certificate:
-
ISO9001
-
Standard:
-
ASTM
-
Appearance:
-
Smooth
-
Technology:
-
electroplate
-
Size:
-
According to customer's requirement
-
Free sample:
-
Free sample available
-
Substrate:
-
Titanium,Niobium,Zirconium
|

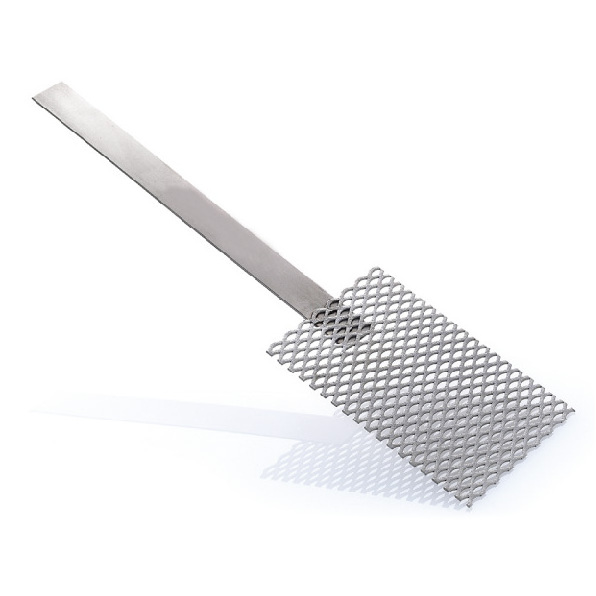

Platinum coated titanium anode
|
|
|
|
Material
|
Gr1 Titanium as substrate, platinum as coating
|
|
|
Technology
|
Electroplate
|
|
|
Dimension & Shape
|
Different dimension and shape are available, process according to
customized design/ drawing |
|
|
Coating Thickness
|
0.5~5 micron
|
|
|
Working Parameter
|
1)Current density<2000A/M2
2)Temperature<85°C 3)Electrolyte:H2SO4 or HNO3, Neutral 4)PH 0.1~14 5)Max content of Fluoride ion is 200PPM 6)Homogenous degree: >=85% 7)Oxygen-liberated potential <=1.8V |
|
|
Price
|
Price will be charged according to quantity and detailed requirement
|
|
|
Features
|
1) Insoluble anode, Stable dimension,
2) Stable distance of the anode & cathode, Stable cell voltage 3) Low working voltage, save power/electricity 4) High purity of the electroposited material 5) No pollution of the cell 6) Light weight 7) The titanium material is recyclable 8) High property of current efficiency & catalysis 9) Long working life |
|
|
Applications
|
Cathodic protection , Electrosynthesis, Chlorate perchlorate production , etc
|
|
|
Lead time
|
1-15days or confirm according to order quantity
|
|
|
Packing
|
Plastic or paper as inside,plywood case or carton as outside,
or according to client's demand |
|
|
MOQ
|
MOQ flexible,small sample will be acceptable
|
|
1. Q: Do you have XX model titanium anode?
A: Our titanium anode are all customized, so there are no models, according to your exact drawing, nearly any shape and size we could produce.
2. Q: Can you produce the anode for our XX equipment/generator?
A: Yes, we can.But different clients have different equipment/generator, and need different anode size,so your anode drawing is required.
3. Q: Which coating anode is suitable for me?
A: Your industry please. According to your application environment, we will give you professional advice.
4. Q: How about the anode working current and voltage?
A: Titanium anode could be used for many industries, different industries have different suitable current and voltage take the following into consideration:
The suitable environment for our titanium anode:
Current density: bellow 2000A/M2
Temperature: 40-60℃
There mustn't be any fluorine and cyanide ions in the electrolyte
5. Q: How about the titanium anode lifetime?
A: The titanium anode lifetime for different industry aren't the same, half year to 50 years, according to your exact industry and environment, we will give you the guaranteed lifetime.
