Quick Details
-
Brand Name:
-
Maplearashi/OEM
-
Use:
-
FTTH
-
Warranty Time:
-
1 year
-
Product name:
-
PLC Splitter
-
Brand:
-
Maplearashi/OEM
-
Mode:
-
SingleMode
-
Connector Type:
-
SC FC LC ST/Without Connecor
-
Length:
-
0.5m/1m/2m/5m/customized
-
Wavelength:
-
1260~1650nm
-
Fiber Type:
-
G652D/G657A1/G657A2
-
Application:
-
FTTH/FTTA/FTTX
-
Operating temperature:
-
40~+85
Quick Details
-
Type:
-
PLC splitter
-
Model Number:
-
1x8 SC APC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Maplearashi/OEM
-
Use:
-
FTTH
-
Warranty Time:
-
1 year
-
Product name:
-
PLC Splitter
-
Brand:
-
Maplearashi/OEM
-
Mode:
-
SingleMode
-
Connector Type:
-
SC FC LC ST/Without Connecor
-
Length:
-
0.5m/1m/2m/5m/customized
-
Wavelength:
-
1260~1650nm
-
Fiber Type:
-
G652D/G657A1/G657A2
-
Application:
-
FTTH/FTTA/FTTX
-
Operating temperature:
-
40~+85

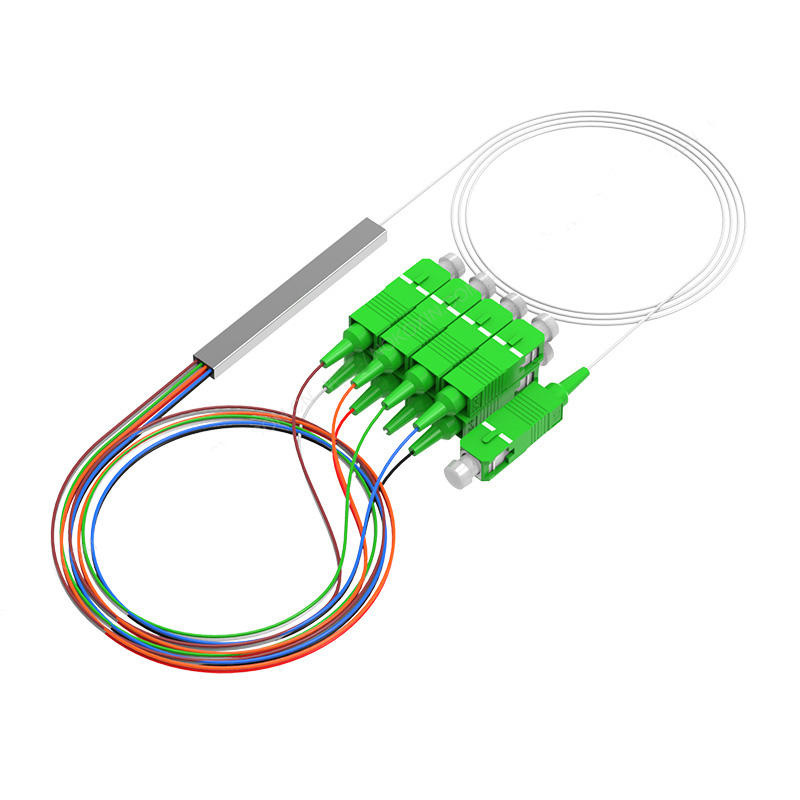

FTTH Optical PLC Splitter 1x8 SC APC Steel Tube Bare Micro Mini Type Optic Single Mode Fiber PLC Splitter
1. Product introduction
Planar wave guide optical separator (PLC Splitter) is an integrated wave guide optical power distribution device based on quartz substrate, which has the characteristics of small volume, wide working wavelength range, high reliability, and good light separation uniformity. It is especially suitable for the passive optical network (EPON, BPON, GPON, etc.) to connect the local terminal and terminal devices and realize the separation of optical signals. Provide 1 N and 2 N full range of PLC separator products, and customized for customers suitable for all occasions. All the products met the Telcordia GR-1209-CORE, Telcordia GR-1221-CORE, and YD / T 2000.1-2009 criteria.
2. Features
Low insertion loss
Low polarization correlation loss
Compact and exquisite design
Good separation uniformity
Wide working wavelength range: from 1260nm to 1650nm
Wide operating temperature range: from-40 ℃ to 85 ℃
3. Application
Fiber to home system
Passive optical network (PON)
Cable TV network
Other optical signal separation systems
4. Follow
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
YD/T 2000.1-2009
RoHS
5. Performance indicators
