Quick Details
-
Power:
-
Battery
-
Min. Lifting Height:
-
1500mm
-
Table Size:
-
2270*1150MM
-
Overall Dimensions:
-
2400*1150*1190mm
-
Weight:
-
2400 kg
-
Application:
-
Aerial working platform
-
Color:
-
Blue, Green and customized
-
Lifting height:
-
6m to 13.8m
-
Load capacity:
-
300kg
-
Platform:
-
extendable
-
Maximum climbing ability:
-
25%
-
Maximum working angle:
-
2 degree
-
Certificate:
-
CE
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PLK LIFT
-
Power:
-
Battery
-
Min. Lifting Height:
-
1500mm
-
Table Size:
-
2270*1150MM
-
Overall Dimensions:
-
2400*1150*1190mm
-
Weight:
-
2400 kg
-
Application:
-
Aerial working platform
-
Color:
-
Blue, Green and customized
-
Lifting height:
-
6m to 13.8m
-
Load capacity:
-
300kg
-
Platform:
-
extendable
-
Maximum climbing ability:
-
25%
-
Maximum working angle:
-
2 degree
-
Certificate:
-
CE

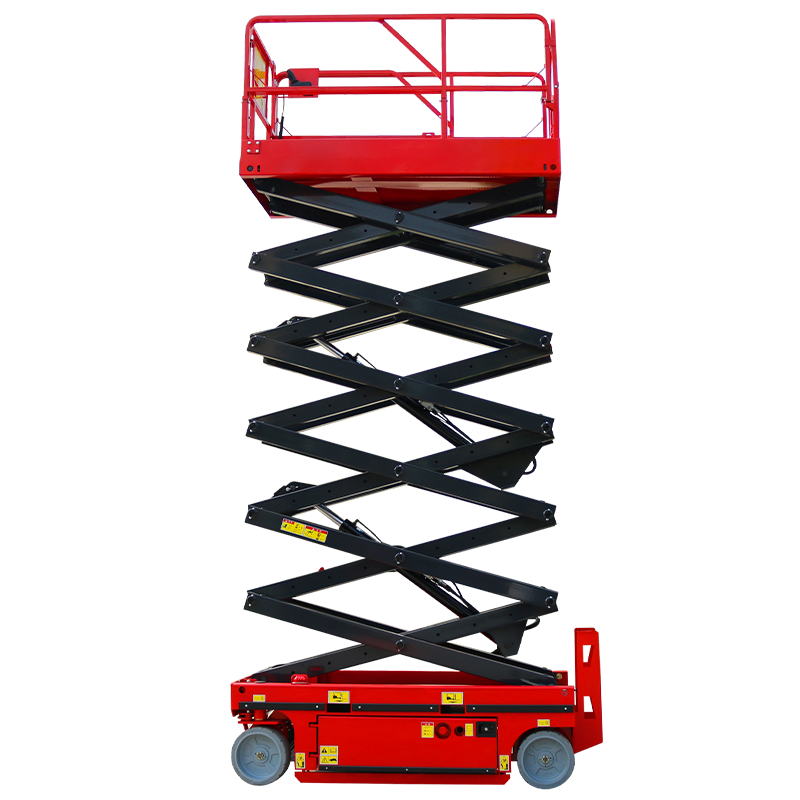

6~12m One Man Hydraulic Self Propelled Scissor Lift
Aerial Lift Platform equip high configuration with America TORJAN Battery, Americia CUITIS control system,Sweden bucher pump station,Italy doyle hydraulic valve and America white driving wheel.It is powered by DC, can be controlled by manually and move automatically and the moving speed is adjustable. There is many safety precautions, for example ,explosion-proof valves,spillover valve and emergency decline valve etc..
|
Model Number |
GTJZ08 |
GTJZ10 |
GTJZ12 |
GTJZ14 |
GTJZ16 |
|
|
Maximum working height (A) |
mm |
8000 |
10000 |
12000 |
13800 |
15800 |
|
Maximum platform height (B) |
mm |
6000 |
8000 |
10000 |
11800 |
13800 |
|
Folding maximum height (guardrail unfolding) (E) |
mm |
2150 |
2275 |
2400 |
2525 |
2550 |
|
Folding maximum height (guardrail removed) |
mm |
1690 |
1815 |
1940 |
2065 |
2100 |
|
Whole length (C) |
mm |
2400 |
2400 |
2400 |
2400 |
2770 |
|
Whole width (D) |
mm |
1150 |
1150 |
1150 |
1150 |
1300 |
|
Platform size |
mm |
2270x1150 |
2270x1150 |
2270x1150 |
2270x1150 |
2640x1150 |
|
Platform extend size (G) |
mm |
900 |
900 |
900 |
900 |
900 |
|
Minimum ground clearance (folding) |
mm |
110 |
110 |
110 |
110 |
100 |
|
Minimum ground clearance (rising ) |
mm |
20 |
20 |
20 |
20 |
20 |
|
Wheelbase |
mm |
1850 |
1850 |
1850 |
1850 |
2230 |
|
Minimum turn radius_( inner wheel) |
mm |
0 |
0 |
0 |
0 |
0 |
|
Minimum turn radius (outer wheel) |
mm |
2100 |
2100 |
2100 |
2100 |
2700 |
|
Power source |
v/kw |
24/4 |
24/4 |
24/4 |
24/4 |
24/4.5 |
|
Running speed(folding) |
km/h |
3.5 |
3.5 |
3.5 |
3.5 |
3.5 |
|
Running speed(rising) |
km/h |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
Rising/falling speed |
sec |
40/50 |
40/50 |
70/80 |
70/80 |
70/80 |
|
Battery |
V/Ah |
24/200 |
24/200 |
24/270 |
24/270 |
24/270 |
|
Charger |
V/A |
24/30 |
24/30 |
24/30 |
24/30 |
24/30 |
|
Maximum climbing ability |
% |
25 |
25 |
25 |
25 |
25 |
|
Maximum working allowable angle |
/ |
2-3° |
2-3° |
2-3° |
2-3° |
2-3° |
|
Way of control |
/ |
Electro-hydraulic proportion control |
||||
|
Driver |
/ |
Double front-wheel |
||||
|
Hydraulic drive |
/ |
Double rear-wheel |
||||
|
Wheel size ( stuffed &no mark) |
mm |
381x127 |
381x127 |
381x127 |
381x127 |
381x127 |
|
Lifting capacity |
kg |
300 |
300 |
300 |
300 |
230 |
|
Lifting extend capacity |
kg |
113 |
113 |
113 |
100 |
100 |
|
Overall Net Weight |
kg |
1900 |
2080 |
2490 |
2760 |
3400 |
Contact Information:
Ava (Sales manager)
Jinan PLK Machinery Co., Ltd
Add: No. 6, Huixin Road, Jiyang County, Shandong, China
Mob/Wechat/Whatsapp: +86-13012551927
Email: ava(at)plklift.com
URL: www.plklift.com
All our products are CE certificated, good quality and competitive price. Welcome to send the inquiry to us if you are interested in any of them, and we will reply you ASAP.
