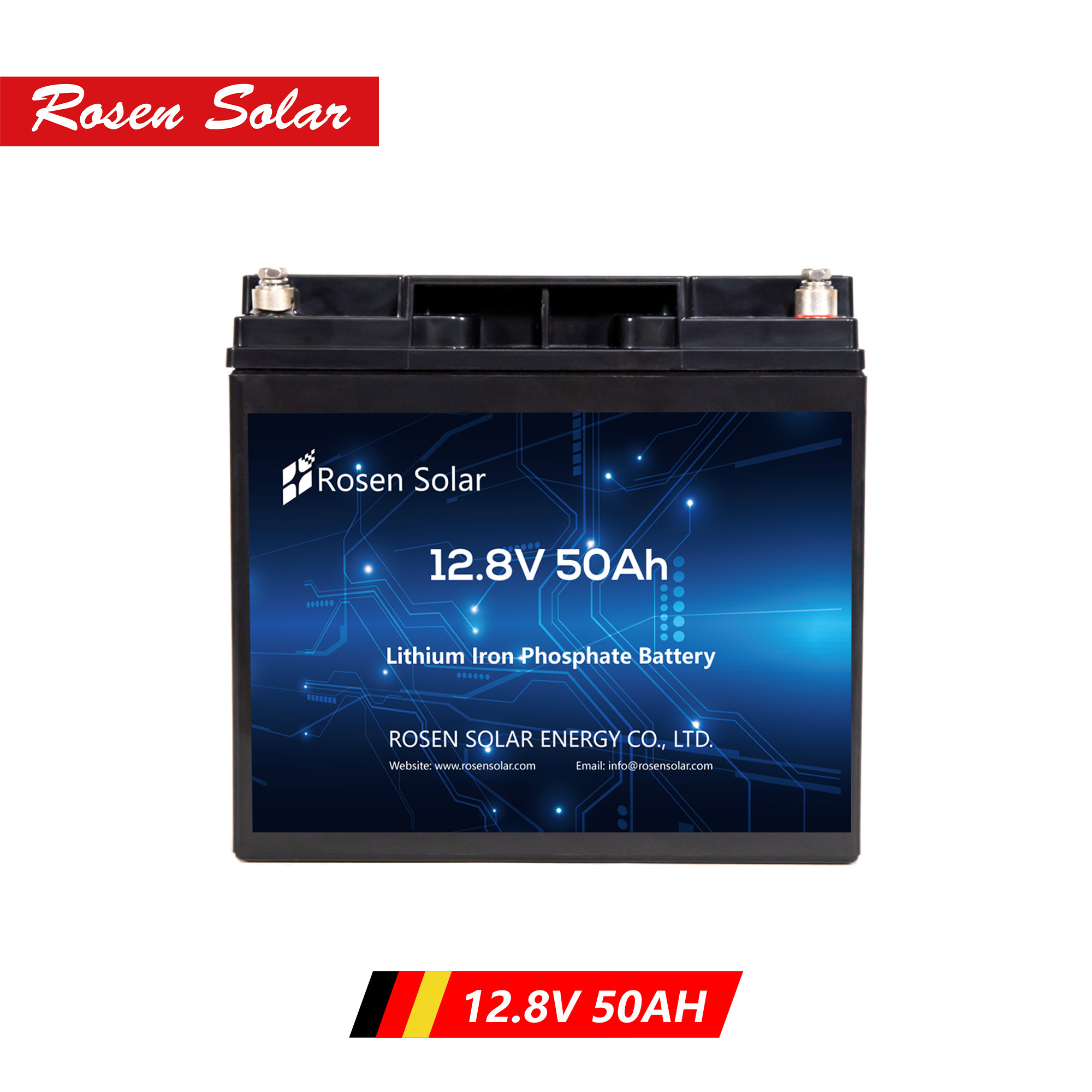

Rosen 12.8V LiFePO4 Battery can adapt both high and low temperature with great discharge performance;
We accept OEM with your logo and design on each battery for mutual success
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
LifePO4 Lithium Battery Pack
-
Cycle life:
-
>3000 times
-
Display:
-
LCD Indicator
-
Color:
-
Grey, Black , Red ,Green,White etc
-
Battery cell:
-
3.2V 50Ah Prismatic Cell
-
BMS:
-
Built-in BMS Protection
-
Warranty:
-
10 Years
-
Battery Size:
-
229*138*217mm
-
Certification:
-
CE/ROSH/MSDS/UN38.3/IEC/ISO9001/ISO14001
-
Weight:
-
6.7kg
Quick Details
-
Model Number:
-
LFP12V50AH
-
Brand Name:
-
Rosen or OEM
-
Place of Origin:
-
China
-
Product name:
-
LifePO4 Lithium Battery Pack
-
Cycle life:
-
>3000 times
-
Display:
-
LCD Indicator
-
Color:
-
Grey, Black , Red ,Green,White etc
-
Battery cell:
-
3.2V 50Ah Prismatic Cell
-
BMS:
-
Built-in BMS Protection
-
Warranty:
-
10 Years
-
Battery Size:
-
229*138*217mm
-
Certification:
-
CE/ROSH/MSDS/UN38.3/IEC/ISO9001/ISO14001
-
Weight:
-
6.7kg
Product Overview
Technical Specification
Rosen 12.8V LiFePO4 Battery are widely used in many fields with 18650&32700 cells
For wheelchairs and scooters, solar/wind energy storage systems, backup power as UPS on ships etc
It has long life cycles to more than 3000 times with voltage and current protection.
|
Function Parameter
|
|
|
|
|||
|
Norminal Battery Energy
|
640Wh
|
|
|
|||
|
Norminal Capacity
|
50Ah
|
|
|
|||
|
Norminal Voltage
|
12.8V
|
|
|
|||
|
Internal Resistance
|
≤20mΩ
|
|
|
|||
|
Cycle Life
|
> 3000 Cycle @100% DOD
|
|
|
|||
|
Months Self Discharge
|
<3%
|
|
|
|||
|
Charge Data
|
|
|
|
|||
|
Max Charge Voltage
|
14.6±0.1V
|
|
|
|||
|
Charge Method
|
CC-CV
|
|
|
|||
|
Continuous Charge Current
|
Max 30A
|
|
|
|||
|
Over Current Detection Current
|
120A
|
|
|
|||
|
Discharge Data
|
|
|
|
|||
|
Max Continuous Discharge current
|
50A
|
|
|
|||
|
Max Pulse Discharge Current
|
120A
|
|
|
|||
|
Discharge Cut-off Voltage
|
10V
|
|
|
|||
|
Working Condition
|
|
|
|
|||
|
Charge Temperature
|
-30℃ to 60℃
|
|
|
|||
|
Discharge Temperature
|
-30℃ to 60℃
|
|
|
|||
|
Storage Temperature:
|
-40℃ to 40℃,
|
|
|
|||
|
Mechanical Data
|
|
|
|
|||
|
Plastic Case
|
ABS
|
|
|
|||
|
Dimensions
|
229*138*217mm
|
|
|
|||
|
Weight (lbs./kg.)
|
6.7KGS
|
|
|
|||
|
Terminal
|
M8
|
|
|
|||
Production line
Battery Application
Main application of LifePO4 battery pack:
1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
3. E-tool: electric drill, electric saw, lawn mower etc
4. Remote control cars, electric boat, aircraft, toys
5. Solar and wind power generation energy storage devices,solar systems,Telecom base Station
6. Small medical equipment and portable equipment
7. RV,Camping car and yacht
8. Solar enegery lights,bicycle lights,LED lights,bright flashlight,solar street lights
2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
3. E-tool: electric drill, electric saw, lawn mower etc
4. Remote control cars, electric boat, aircraft, toys
5. Solar and wind power generation energy storage devices,solar systems,Telecom base Station
6. Small medical equipment and portable equipment
7. RV,Camping car and yacht
8. Solar enegery lights,bicycle lights,LED lights,bright flashlight,solar street lights
Battery Certificates
