Quick Details
-
Brand Name:
-
yueke
-
Model Number:
-
STCLD-1
-
key word:
-
testing machine
-
Penetration capacity:
-
20-30KN
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
yueke
-
Model Number:
-
STCLD-1
-
key word:
-
testing machine
-
Penetration capacity:
-
20-30KN

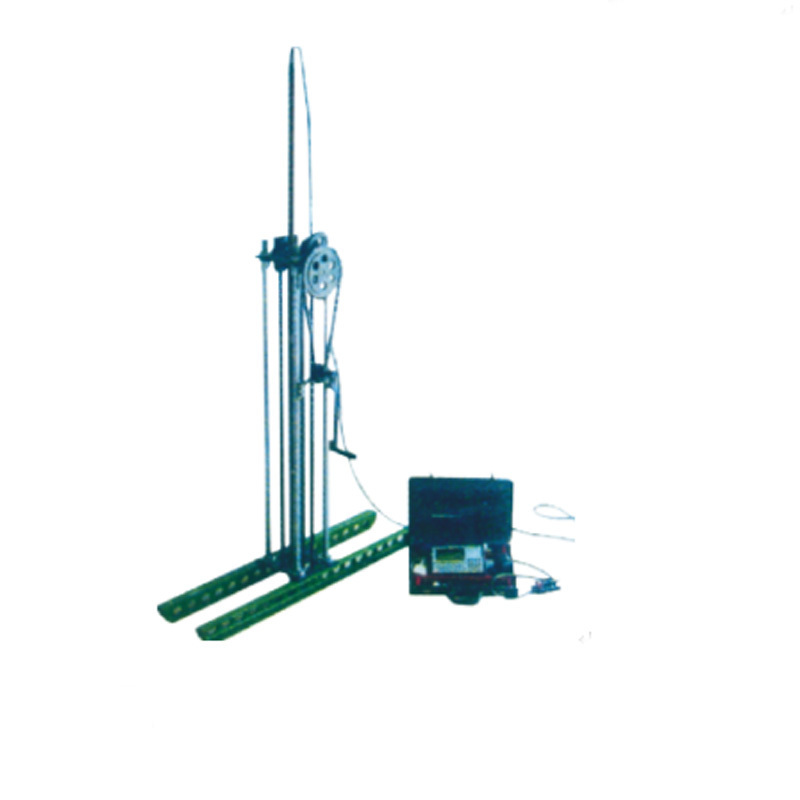

STCLD-1 Static Penetration Testing Apparatus
Wechat/Whatsapp:+86 15968839848
Application: This machine is used to perform static penetration test, and vane test together with four-bladed vane shear testing apparatus. It's convenient in data exchange. The machine is light,easy to operate, with simple structure and stable performance. No need to be connected to external power.
Parameter:
1. Penetration capacity: 20-30KN
2. Penetration speed: 0.8-1.2m/min
3. Winding speed: 4-5m/min
4. Diameter of probe rod: 25-28mm
5. Adapt probe: 10cm²
6. Four-bladed vane probe size: 50*100mm(separately equipped)
7. Weight of total machine: 180kg
