- Product Details
- {{item.text}}
Quick Details
-
Elongation (≥ %):
-
Stable
-
Place of Origin:
-
Jiangsu, China
-
Application:
-
Industrial
-
Grade:
-
Nickel Base Alloy
-
Ni (Min):
-
Balance
-
Model Number:
-
XDO-plate sheet
-
Brand Name:
-
XDO
-
Product name:
-
China Cheap Hot Rolled Nickel Copper Alloy Monel 400 Plate Sheet Price
-
Material:
-
Inconel,Hastelloy,Monel,Incoloy,GH,Precision alloy,Stainless steel
-
Thickness:
-
0.8-36mm
-
Width:
-
650-2000mm
-
Length:
-
800-4500mm
-
Shape:
-
Sheet,Pipe,Bar,Coil,Strip
-
Logo:
-
XDO , also according to client's requirements
-
Technique:
-
Hot-rolled, Hot-forged, Cold-drawn, Centerless Gringing
-
Surface:
-
Pickling
-
OEM:
-
Welcomed
Quick Details
-
Resistance (μΩ.m):
-
Stable
-
Powder Or Not:
-
Not Powder
-
Ultimate Strength (≥ MPa):
-
690
-
Elongation (≥ %):
-
Stable
-
Place of Origin:
-
Jiangsu, China
-
Application:
-
Industrial
-
Grade:
-
Nickel Base Alloy
-
Ni (Min):
-
Balance
-
Model Number:
-
XDO-plate sheet
-
Brand Name:
-
XDO
-
Product name:
-
China Cheap Hot Rolled Nickel Copper Alloy Monel 400 Plate Sheet Price
-
Material:
-
Inconel,Hastelloy,Monel,Incoloy,GH,Precision alloy,Stainless steel
-
Thickness:
-
0.8-36mm
-
Width:
-
650-2000mm
-
Length:
-
800-4500mm
-
Shape:
-
Sheet,Pipe,Bar,Coil,Strip
-
Logo:
-
XDO , also according to client's requirements
-
Technique:
-
Hot-rolled, Hot-forged, Cold-drawn, Centerless Gringing
-
Surface:
-
Pickling
-
OEM:
-
Welcomed

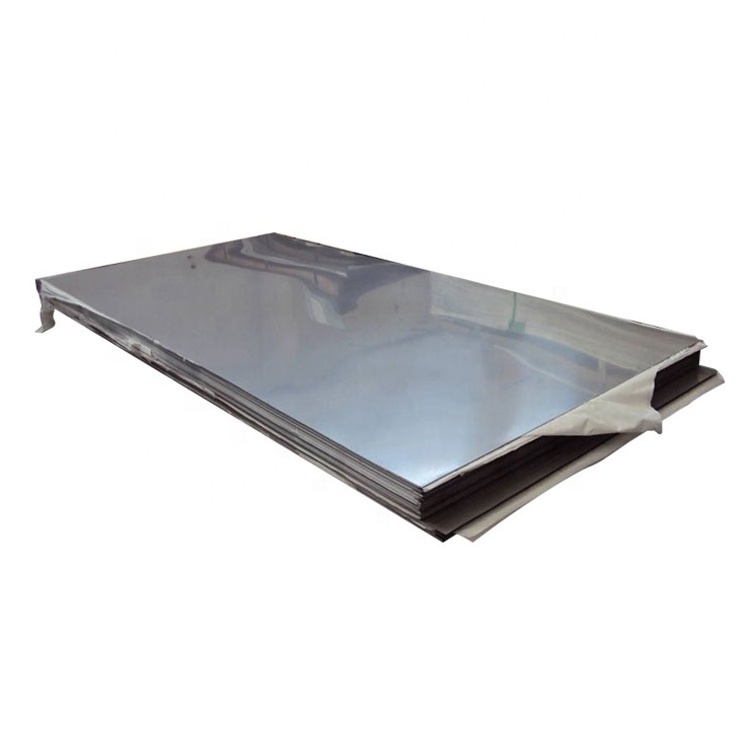

China Cheap Hot Rolled Nickel Copper Alloy Monel 400 Plate Sheet Price
Monel 400
Similar names: UNS NO4400, Trademark Monel400, W.Nr 2.4360
Chemical Composition, %
| Alloy | % | Ni | Cu | Fe | C | Mn | Si | S |
| Monel 400 | min | Remainder | 28 | |||||
| max | 34 | 2.5 | 0.3 | 2 | 0.5 | 0.024 |
Physical properties
| Density | 8.83 g/cm3 |
| Melting point | 1300-1390 ℃ |
Mechanical properties
| Alloy state |
Tensile strength Rm N/mm2 |
Yield strength RP0.2 N/mm2 |
Elongation rate A5 % |
| Monel 400 | 480 | 170 | 35 |
| Product name | China Cheap Hot Rolled Nickel Copper Alloy Monel 400 Plate Sheet Price |
| Material | Inconel,Hastelloy,Monel,Incoloy,GH,Precision alloy,Stainless steel |
| Shape | Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet |
| Grade |
Inconel:Inconel600(N06600 GH3600),Inconel601(N06601 GH3600),Inconel625(N06625 GH3625), InconelX-750(N07750 GH4145),Inconel 718(N07718 GH4169),Inconel690 |
|
Hastelloy:Hastelloy B-2,Hastelloy C,Hastelloy C-267(N10276),Hastelloy C-4, Hastelloy C-22(N06022),Hastelloy G30(N06030) |
|
| Monel:Monel 400(N04400),Monel K500(N05500) | |
|
Incoloy:Incoloy A-286(GH2132 N662),Incoloy800 800H 800HT,Incoloy725, Incoloy825,Incoloy925,Incoloy926(N08926 1.4529) |
|
|
GH:GH2132(N66286 A286 Gr6),GH3625(Inconel625 UNS N0), GH4169(Inconel718 UNS N0),GH3030,GH3039,GH4033,GH3128 |
|
| Precision alloy:4J36,4J29,1J79 | |
| Stainless steel:Alloy 20(N08020),904L(N08904),254SMo(F44 S31254) | |
| Other | |
| Specification | Wire: 0.01-10mm |
| Strip: 0.05*5.0-5.0*250mm | |
| Bar: φ4-50mm;Length 2000-5000mm | |
| Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm | |
| Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm | |
| Product Characteristics |
1.According to the preparation process can be divided into deformation superalloys, casting superalloys and powder metallurgy superalloys. |
| 2.According to the strengthening mode, there are solid solution strengthening type, precipitation strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc.. | |
| Standard | GB,AISI,ASTM,DIN,EN,SUS,UNS etc |
| Inspection | ISO,SGS,BV and so on. |
| Application |
High temperature components such as turbine blades, guide vanes, turbine disks, high pressure compressor disks,machine manufacturing and combustion chambers used in the manufacture of aviation, naval and industrial gas turbines |
| Packaging | 1. cases packed in wooden cases |
| 2. paper packaging | |
| 3. plastic packing | |
| 4. foam packaging | |
| 5.Packaging according to customer requirements or products | |
|
Special design available as the requirement of customer You can click here to go to the shop's homepage, select the products you need, or click here to inquire directly ~ any questions we will help you ~ |
|
Our Feature:
1.Fast Delivery
2.Factory competitive price.
3.small order accepted.
4.mill test certifecate can be provided, 3.2 third party test also accpted.
5.ISO9001 certificate
6.We are factory of fasteners and some non standard parts, but also your trading companies to help you buy pipes,bars,plates,without add any cost if some items you can not easily find.
