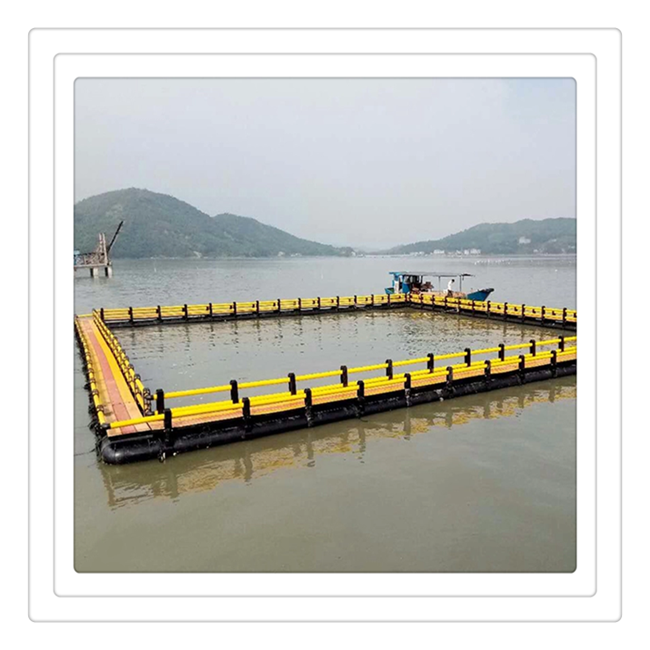

PE Tilapia farm floating cage
- Product Details
- {{item.text}}
Quick Details
-
Material:
-
HDPE
-
Diameter:
-
DN 200-400mm, 10-40 m or customized
-
Shape:
-
Square or round
-
Product name:
-
High Quality Floating aquaculture net Cage
-
Thickness::
-
19.1-29.4mm
-
Material::
-
PE 100, HDPE
-
Ability of anti-wave::
-
Max wave high of 5m in the water
-
Application:
-
Aquaculture fish farm
-
Anti-windstrom::
-
Max Grade 11
-
Anti-flow capability::
-
Max flow rate of 1.5 m/s
-
Shape::
-
Round Square Rectangular Quadrate Circular
-
Length::
-
10-80m
-
Place of Origin:
-
China
Quick Details
-
Use:
-
crab ,lobster ,shrimp.fish
-
Brand Name:
-
zhuoshi
-
Model Number:
-
square or round
-
Material:
-
HDPE
-
Diameter:
-
DN 200-400mm, 10-40 m or customized
-
Shape:
-
Square or round
-
Product name:
-
High Quality Floating aquaculture net Cage
-
Thickness::
-
19.1-29.4mm
-
Material::
-
PE 100, HDPE
-
Ability of anti-wave::
-
Max wave high of 5m in the water
-
Application:
-
Aquaculture fish farm
-
Anti-windstrom::
-
Max Grade 11
-
Anti-flow capability::
-
Max flow rate of 1.5 m/s
-
Shape::
-
Round Square Rectangular Quadrate Circular
-
Length::
-
10-80m
-
Place of Origin:
-
China
Product Description
Benefits polyethylene cage fish farming:
Low cost relative to fish farming in earthen ponds or CCTV system
Management easier and less costly
Ease of observation and study of fish nutrition and health
Easy and economical treatment against parasites and diseases
Compared to earthen ponds and CCTV system requires less investment.
In the case of environmental pollutants and suspended solids, which can be problematic for the cage, the cage can be moved.
Construction of the cage frame：
PE Tilapia farm floating cage
Specification
Square Floating Cage frame specifications
|
Length*Width(m)
|
Floating pipe Dia(mm)
|
Handrail pipe Dia(mm)
|
Stand pipe Dia(mm)
|
Bracket Dia(mm)
|
Distance of the brackets(m)
|
|
2*2
|
200
|
90
|
110
|
200
|
2
|
|
3*3
|
200/250
|
90/110
|
110/125
|
200/250
|
2
|
|
4*4
|
200/250
|
90/110
|
110/125
|
200/250
|
2
|
|
5*5
|
200/250
|
90/110
|
110/125
|
200/250
|
2
|
|
6*6
|
200/250
|
90/110
|
110/125
|
200/250
|
2
|
|
7*7
|
200/250
|
110
|
125
|
200/250
|
2
|
|
8*8
|
315/350
|
110
|
125
|
315/350
|
2
|
|
9*9
|
315/350
|
110/125
|
125/Bracket
|
315/350
|
2/2.5
|
|
10*10
|
315/350
|
110/125
|
125/Bracket
|
315/350
|
2/2.5
|
|
12*12
|
315/350
|
110/125
|
125/Bracket
|
315/350
|
2/2.5
|
|
15*15
|
350/400
|
125
|
125/Bracket
|
350/400
|
2.5
|
|
20*20
|
450/500
|
140/160
|
125/Bracket
|
450/500
|
2.5/3
|
|
30*30
|
500/600
|
160
|
125/Bracket
|
500/600
|
3/3.5
|
Performance parameters of
Square Cage:
1)Anti-Windstorm capacity:Maximum grade 8
2) Ability of anti-wave:Maximum wave high of 3 meter in the water
3) Anti-flow capability:Maximum flow rate of 1.0m/s
Round cage specification:
|
Cage Models
|
200
|
250
|
315
|
350/400
|
450/500/600
|
|||||
|
Cage Circumference
|
30-60
|
40-80
|
60-120
|
120-160
|
160-260
|
|||||
|
(m)
|
|
|
|
|
|
|||||
|
Farming Area
|
70-286
|
127-509
|
286-1146
|
1146-2037
|
2037-5379
|
|||||
|
(m2)
|
|
|
|
|
|
|||||
|
Be placed in Water Depth(m)
|
-5 to
|
-5 to
|
-5 to
|
-5 to
|
-5 to
|
|||||
|
|
-60
|
-60
|
-60
|
-60
|
-60
|
|||||
|
Floating Pipe Diameter(mm)
|
200
|
250
|
315
|
350/400
|
450/500/600
|
|||||
|
Handrail Pipe Dia (mm)
|
90
|
110
|
125
|
125
|
140/160
|
|||||
|
Handrail Upright Dia (mm)
|
110
|
125
|
125/Bracket
|
Bracket
|
Bracket
|
|||||
|
Bracket Type
|
Split
|
Split
|
Split/ One-piece with Handrail Upright
|
One-piece with Handrail Upright
|
One-piece with Handrail Upright
|
|||||
|
Distance between Brackets(m)
|
2
|
2
|
2
|
2.5
|
2.5
|
|||||
|
Materials Used
|
PE100
|
PE100
|
PE100
|
PE100
|
PE100
|
|||||
|
Foam Added
|
Only Floating Pipe
|
Only Floating Pipe
|
Only Floating Pipe
|
Only Floating Pipe
|
Only Floating Pipe
|
|||||
|
Available with Sinker Pipe
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Available with Walkway Decking:
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|||||
|
Available with Net
|
Nylon /PE/HDPE/
|
Nylon /PE/HDPE/
|
Nylon /PE/HDPE/
|
Nylon /PE/HDPE/
|
Nylon /PE/HDPE/
|
|||||
|
Installing Accessories: Pin,Stopper, Pipe for the Walkway Decking
|
|
|
|
|
|
|||||
Performance parameters of
Circular Cage:
1)Anti-Windstorm capacity:Maximum grade 11
2) Ability of anti-wave:Maximum wave high of 5 meter in the water
3) Anti-flow capability:Maximum flow rate of 1.5m
Advantages
1. High intensity
2. Excellent flexibility
3. Corrosion resistant
4. Strongly resistant to the storm
5. Long service life
6. Sufficient aquaculture water volume with high efficiency and low comprehensive cost
7. Less pollution and high-grade aquaculture water resulted in the perfect quality of the fish products, the desirable benefits and returns.
2. Excellent flexibility
3. Corrosion resistant
4. Strongly resistant to the storm
5. Long service life
6. Sufficient aquaculture water volume with high efficiency and low comprehensive cost
7. Less pollution and high-grade aquaculture water resulted in the perfect quality of the fish products, the desirable benefits and returns.
Key Words ：
aquaculture、Fishing、Fishfarming fish farming cage fish farming equipment aquaculture fish farming cages aquaculture net cage fish cage trap tilapia fish cage fish cage net fish cage floating cage flottante aquaculture cages fish farming nets hdpe possions cage de poisson fish cages square nets aerators for aquaculture fish cage aquaculture for farming cage aquaculture system round hdpe fish cage cobia fish net cages floattante I aquaculture des cages de piscicuture cage fish farming sea cage culture net hdpe fish cage fish farming cage circule (for sea ) aquaculture farming floating cages nets for fish cages en cage flottante floating cages aquaculture cages for deep sea cage fish farming fishing cage brackt tilapia fish cages fish cage floating Uganda african kenya fish cage net fish cage，fish cage farming，fish cage net，cage farming fish，fish cage floating，floating fish cage，sea fish cage，fish breeding cages，fish net for cage，cage fish farming，fish farm net cage
Fittings
Bracket of
PE Tilapia farm floating cage
FISH CAGE NETS
PE Tilapia farm floating cage
Fish cage net is very import in the whole fish cage system, as fishes are growing inside the net cage. The fish net cage provides a environment that keep fishes from the risk of escape and predator attacks.
We make sure the fish net cages are pure material, we've been improving and using advanced sewing methods to make sure strong and clean connection points, as well as neat grid ropes to ensure that load is evenly distributed throughout the net system.
All hapa nets, fingerling nets, grow out nets, protection nets are available.
We make sure the fish net cages are pure material, we've been improving and using advanced sewing methods to make sure strong and clean connection points, as well as neat grid ropes to ensure that load is evenly distributed throughout the net system.
All hapa nets, fingerling nets, grow out nets, protection nets are available.
