Quick Details
-
Power:
-
11.2kw
-
Place of Origin:
-
Qingzhou
-
Brand Name:
-
WOLF
-
Maximum Digging Height:
-
3020mm
-
Maximum Digging Depth:
-
1809mm
-
Machine Weight:
-
1200 kg
-
Max Digging Radius:
-
3380mm
-
Rated Speed:
-
1.6/3.2km/h
-
Engine model:
-
Yanmar Tier4/Euro5
-
Traveling Speed:
-
1.6-3.2km/h
-
Fuel Tank Capacity:
-
15L
-
Bucket Digging Force:
-
11KN
-
Arm Digging Force:
-
6.5KN
-
Main pump:
-
KYB
-
Hydraulic valve:
-
KYB
-
Max Digging Depth:
-
1809mm
-
Max Dump Height:
-
2039mm
-
Min Swing Radius:
-
550mm
Quick Details
-
Operating Weight:
-
1.2ton
-
Bucket capacity:
-
0.03M3
-
Engine Brand:
-
YANMAR
-
Power:
-
11.2kw
-
Place of Origin:
-
Qingzhou
-
Brand Name:
-
WOLF
-
Maximum Digging Height:
-
3020mm
-
Maximum Digging Depth:
-
1809mm
-
Machine Weight:
-
1200 kg
-
Max Digging Radius:
-
3380mm
-
Rated Speed:
-
1.6/3.2km/h
-
Engine model:
-
Yanmar Tier4/Euro5
-
Traveling Speed:
-
1.6-3.2km/h
-
Fuel Tank Capacity:
-
15L
-
Bucket Digging Force:
-
11KN
-
Arm Digging Force:
-
6.5KN
-
Main pump:
-
KYB
-
Hydraulic valve:
-
KYB
-
Max Digging Depth:
-
1809mm
-
Max Dump Height:
-
2039mm
-
Min Swing Radius:
-
550mm
Products Description

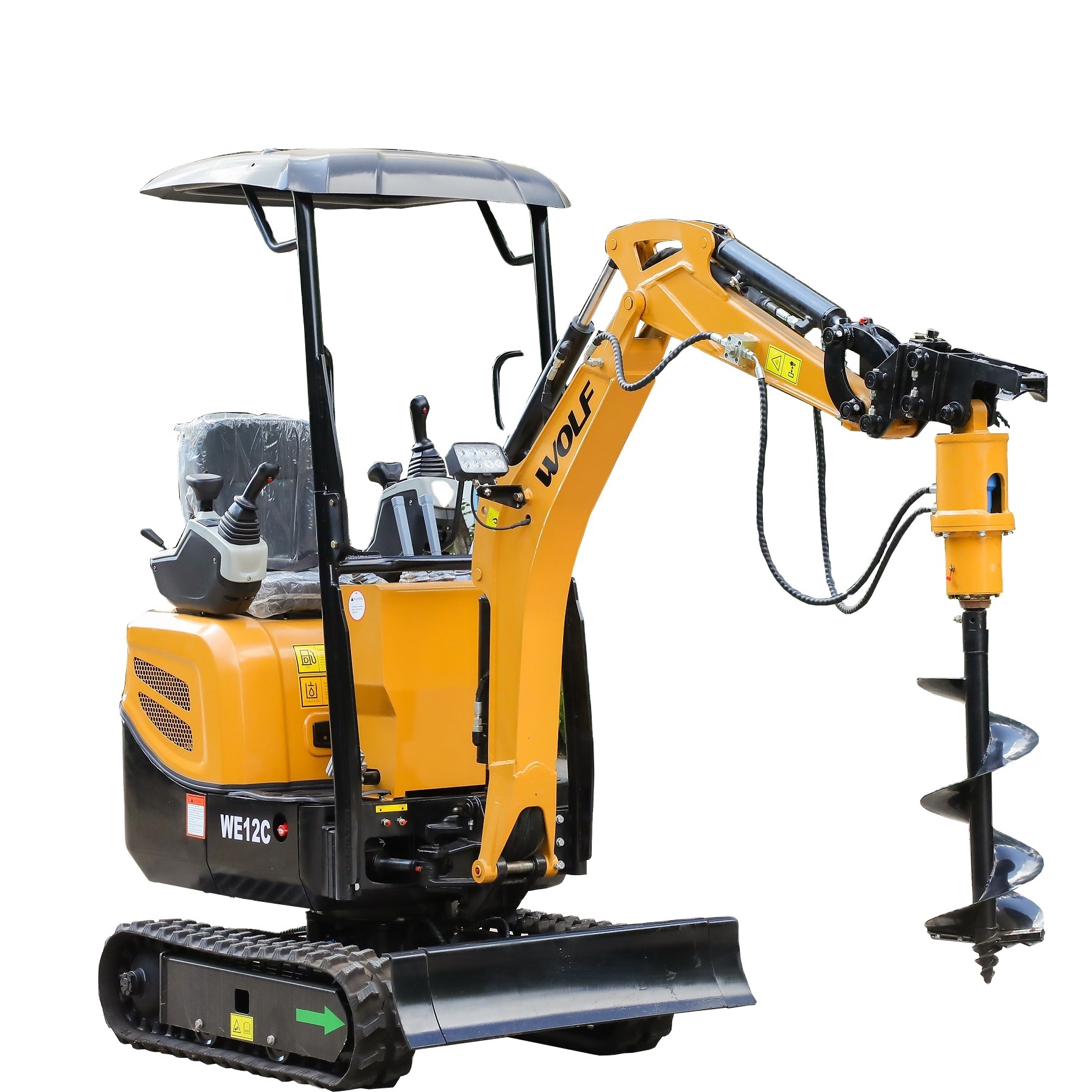

WE12 Mini excavator is one good helper for farm and family garden, small and convenient, easy to handle, easy to solve different works.
Widely used in farm, garden, orchards, nurseries, landascaping, interior decoration and municipal construction.
Standard Configuration:
◆Yanmar3TNV74F 11.2kw
◆
Bucket capacity:0.03m³
◆Manual & Hydraulic pilot control
◆Extendable track
◆Swing arm
◆Bucket
Specification
|
Engine
|
Model
|
Yanmar3TNV74F, 11.2kw
|
|
|
|
|
Type
|
Direct injection, water cooled, natural intake
|
|
|
|
|
No. of cylinder
|
3
|
|
|
|
|
Machine weight
|
kg
|
1200
|
|
|
|
Bucket capacity
|
m3
|
0.03
|
|
|
|
Max. flow
|
L/min
|
22
|
|
|
|
Working pressure
|
Mpa
|
17.5
|
|
|
|
Ground prssure
|
Kpa
|
29
|
|
|
|
Travel speed
|
km/h
|
1.6/3.2
|
|
|
|
Swing speed
|
r/min
|
10
|
|
|
|
Tail swing radius
|
mm
|
550
|
|
|
|
Dimension
|
mm
|
2944x850/1050x2250
|
|
|
|
Max. digging height
|
mm
|
3020
|
|
|
|
Max. dumping height
|
mm
|
2039
|
|
|
|
Max. digging reach
|
mm
|
1809
|
|
|
|
Max. vertical digging depth
|
mm
|
2233
|
|
|
|
Max. digging reach
|
mm
|
3380
|
|
|
|
Deflection angel
|
left/right
|
45/75
|
|
|
|
Max. pushing height/depth
|
mm
|
195/195
|
|
More Detais
Attachments
There are some different attachments for mini excavator to help you do different works, such as different size bucket, hammer, auger, ramp, ripper etc. It is one good helper for you in the farm and family garden. Tell me please if you need some.
Shipment
Using 20GP and 40HQcontainer to load:
6 sets can be loaded into 20GP container;
6 sets can be loaded into 20GP container;
12 sets can be loaded in one 40HQ container.
