- Product Details
- {{item.text}}
Quick Details
-
Power:
-
5.5KW
-
Dimension(L*W*H):
-
1880X1620X1300
-
Weight:
-
841 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
machinery cutting sofa cover in complex design and figure
-
Cutting Tool:
-
Vibrating Knife Cutting Tool, Punching Tool, Drawing Tool
-
Function:
-
Cutting, punching and marking
-
Effective working area:
-
1000mm x 700mm
-
Air pump power:
-
5.5KW
-
Cutting Speed:
-
100-1200mm/s
-
Available Thickness:
-
0.5-6mm
-
Available Materials:
-
Natural Leather, PU, Synthetic Material.ect
Quick Details
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RUIZHOU
-
Power:
-
5.5KW
-
Dimension(L*W*H):
-
1880X1620X1300
-
Weight:
-
841 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
machinery cutting sofa cover in complex design and figure
-
Cutting Tool:
-
Vibrating Knife Cutting Tool, Punching Tool, Drawing Tool
-
Function:
-
Cutting, punching and marking
-
Effective working area:
-
1000mm x 700mm
-
Air pump power:
-
5.5KW
-
Cutting Speed:
-
100-1200mm/s
-
Available Thickness:
-
0.5-6mm
-
Available Materials:
-
Natural Leather, PU, Synthetic Material.ect

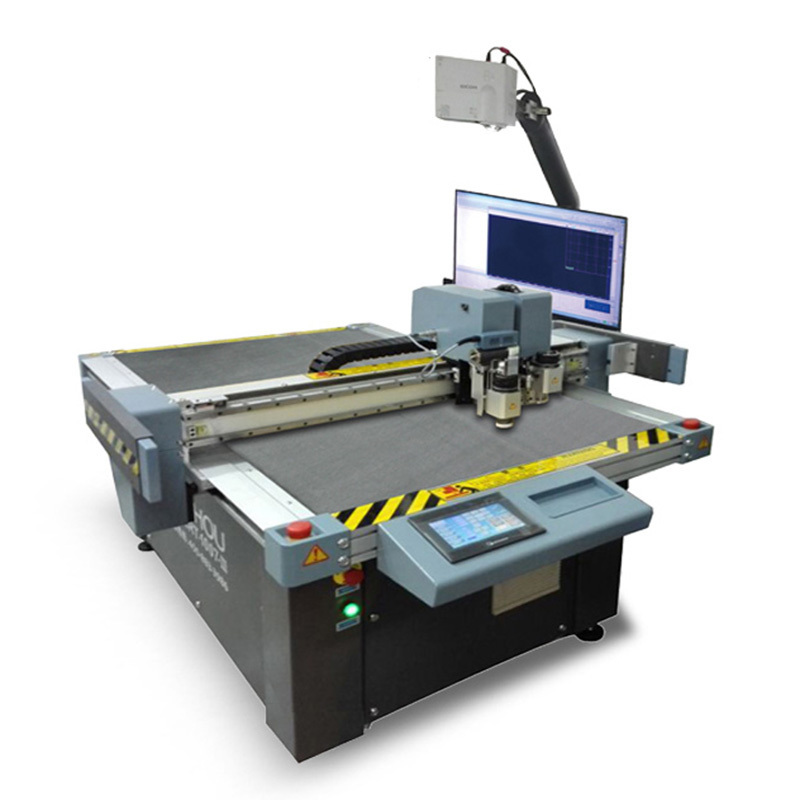

artificial leather cutting machine CNC leather fabric textile no laser cutting machine with CE ISO
This leather cutting machine is a professional cutting system for leather shoes and footwear.
It is of good quality, high speed, stable functions and competitive price, specially providing a revolutionary cutting solution for footwear, garment, case and bag, car and plane chair, furniture and apparel industries.
The Parameters of CNC leather Cutting machine
Parameters of CNC leather Cutting machine RZCUT5-
| Model | RZCUT5-1007E | ||
| Our Advantage |
1.A whole piece aluminum platform 2.Welding stable machine structure
3.Gear rack & Screw lever 4.Safety device 5.Fast and convenient tools changing. |
||
| Effective working area | 1000x700mm | ||
| Cutting speed | 0-1200mm/s | ||
| Applicable thickness | 0.5mm-6mm | ||
| Cutting Materials |
Genuine leather, Artificial leather,Cardboard, Plastic board, Gary cardboard, Complex materials, Gasket, White board, etc. |
||
| Tools | Oscillating cutting tool, Electric round knife tool (optional) | ||
| punching tool | |||
| Marking pen | |||
| Material fixing method | Divisional vacuum absorption | ||
| Mechanical resolution | 0.07mm | ||
| Software resolution | 0.025mm, 0.01mm, 0.1mm (optional) | ||
| Interface of transmission | Net port | ||
| Command system | HP-GL and GP-GL compatible formats | ||
| Digital Control Panel | Liquid crystal display and touching button | ||
| Transimission Materials | Combine use of screw rod, aluminum rack and imported synchronous belt to guarantee higher accuracy and durability. | ||
| Motor | Servo motor/Stepping Motor | ||
| Air pump power | 5.5KW | ||
| Machine Working Voltage | AC 220V ± 10%, 50HZ | ||
| Air Pump working Voltage | AC 380V ± 10%, 50 HZ | ||
The Tools and Functions of Sofa Cover Cutting Machine
The Tools and Functions of Sofa Cover Cutting Machine.
1. Oscillating knife
It is fast, accurate and no burning nor smell.
2. Electric Rotary Tool
It's more fast and low noise.
3. Punching Tool
T his is special for punching when it comes to materials like leather shoes, leather belts, complex materials
and so on.
4. Drawing Pen
With gel pen, mark pen, ball pen, silver pen.
5.CCD Camera. It's professional for positioning for print materials. Automatic and precise.
The Details Advantages of Sofa Cover Cutting Machine.
The Main Steps of Leather Cutting.
The Cutting Samples of CNC leather Cutting machine
Our Customers:
The Packing of CNC leather Cutting machine
Guangdong RUIZHOU Technology Co., Ltd is a national Torch Plan High-tech Enterprise, specialized in the research, development, sales and technique service of soft material intelligent CNC cutting machine.
RUIZHOU Technology has been dedicated in supplying informationized and automatic design and whole solution of intelligent production for a broad community of soft material manufacturers, which achieves the realization of the confluence of informatization and industrialization.
1. 20 years of experience in CNC cutting technology;
2. The first and biggest CNC cutting machine manufacturer in China;
3. We only focus on the research and development of CNC knife-cutting technology and related CAD software over the past 20 years;
4. We use HAAS and DMG machine tool to process key components;
5. We imported Servo Motor from Panasonic and Straight-line guide rail from Germany;
6. We regard quality and service as the life of our corporation;
7. We will never be satisfied until you are satisfied;
8. Our engineering team never stops to improve our machine and upgrade our software.
| Item Number | Working Area |
| RZCUT5-1007E | 1000X700MM |
| RZCUT5-1510E | 1500X1000MM |
| RZCUT5-2516E | 2500X1600MM |
| RZCUT5-2516EF |
2500X1600MM
(with automatic feeding shelf) |
| RZCUT5-3016E | 3000X1600MM |
| RZCUT5-3016EF-2H |
3000X1600MM
(with double cutting head ) |
| RZCUT5-3616E | 3600X1600MM |
| RZCUT5-3616EF-2H |
3600X1600MM
(with double cutting head ) |
| RZCUT5-3625E | 3600X2500MM |
| RZCUT5-3625EF |
3600X2500MM
(with automatic feeding shelf) |
| RZCUT5-3625EF-2H |
3600X2500MM
(with double cutting head ) |
| RZCUT5-4016EF |
4000X1600MM
(with automatic feeding shelf ) |
| RZCUT5-6016EF |
6000X1600M
(with automatic feeding shelf) |
Warranty & afert sale service
1.One year guarantee for whole machine except of consumables such as knife blade, mat.
2. A free training at our company
3. 24 hours technical support
4. Calling or door-to-door service
5. User friendly English software, usual manual and videos.
