VAT 2040 High Voltage Pulse High Current Output Magnetizing Machine for Loudspeaker

VAT 2040 High Voltage Pulse High Current Output Magnetizing Machine for Loudspeaker

FOB Reference Price: Get Latest Price

≥1 Sets

US $5500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: VAT

Weight (KG):: 400

Technical Parameters

Tips: The actual parameters including power supply, capacitance, etc are customized by different

countries, the following table shows in general case.

1	Model	VAT-2040
2	Power Supply	AC220V/380V 50Hz
3	Output Voltage	DC100-2000V
4	Output Current	0-30KA
5	Output Energy	0-8KJ
6	Capacitance	4,000μF
7	Working Cycle	2sec (approx)
8	Size	1450mm900mm1250mm
9	Weight	280kg
10	Scope of Application	NdFeB:≤∅85 / Ferrite: ≤ ∅ 280

Description L-S Mag

VAT 2040 High Voltage Pulse Magnetizing Machine for Loudspeaker

Introduction of VAT Magnetizer Production

1, The magnetizer/de-magnetizer can be customized according to customer's requirements.
2, The pictures in details page are typical apparatuses for reference only.
3, Technology support& after service of magnetizer/de-magnetizer are offering permanently.

Instructions of Magnetizing Fixture

In order to abtian optimum magnetization,not only the power source for magnetization, but also the magnetizing fixtures must be properly designed and manufactured so as to match with the purpose. We design a variety of magnetizing coils and fixtures, and manufactures them through its rich experience.We are sure, we will meet your needs.

We offer to make selection of suitable magnetizer and design the magnetizing coils and fixtures on receiving your information about the following items.

> Name of magnet to be magnetized

> Dimension of magnets with tolerances

> Material and type of magnet

> Magnetizing direction and number of pole pairs

> Minium value of flux on flux density

> Number of parts to be magnetized per hour

Features

1.Charging and discharging rapidly and high efficiency.
2. The realization of the long life benefited from the usage of non-polar electric capacitor.
3. Economic and energy saving.
4. Step-less voltage regulation of the photoelectric module and high reliability.
5. Automatic protection for over-voltage of the capacitor.
6. Capacitor voltage automatic release when shutdown.
7. Strong magnetizing field. Large current magnetizing. The Ferrite material and rare

earth material like Neodymium, Iron, Boron, Aluminum, Cobalt and Nickel can be magnetized.

8. Multiple usages and flexible. Multi-polar magnetization is available.

9. Highly cost-effective.

Plz contact us f or special requirements.

Typical Series

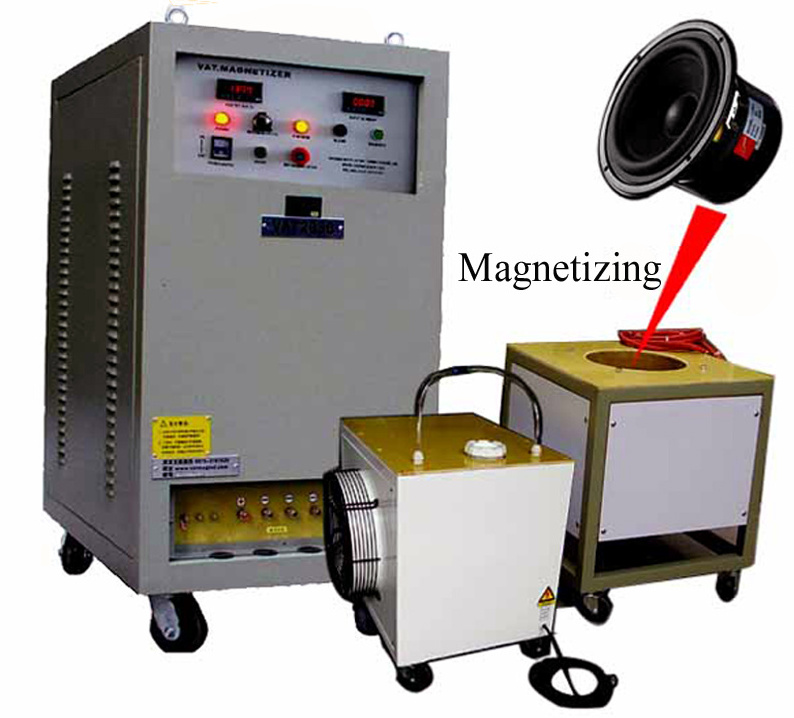

Magnetizing Loudspeaker

Applied in magnetization and demagnetization of high-power loudspeaker magnetizer.

Features:
1, Adopt anti-eddy iron core to reduce energy loss
2,Stepless voltage adjusting photoelectric module has high reliability and long service life
3,Optional magnetizing current display and fault alert
4,Integrated magnetizer-demagnetizer,etc.

Magnetizing Motor

20KW high-power rare-earth permanent magnet rotor auto magnetizer.
Features:
1, Automatically adjust the pulse width of load current and overcome the difficulty in saturation of large sized rotor core.
2, Measurement of magnetization and magnetic track, completed at one time in the course of magnetization, etc.

A utomation Magnetizing Apparatus

Applied in automation reconstruction of different types of Mag&Demagnetizing machine.

Features:

1, Mechanism can smoothly mactch with production line to achieve automatic magnetization.

2, Automatical inspection of finished products.

3, Operating paramaters can be automatically identified, and alert if error, etc.

How we guarantee the quality!

(APQP) Advanced Product Quality Planning (FMEA) Failure Mode Effects Analysis
(MSA ) Measurement Systems Analysis (SPC) Statistical Process Control
(DFSS) Design for Six Sigma (DOE) Design of Experiments

About Us

Title goes here.

Derivation of V-A-T
The three capital letter V-A-T which occured in VAT Magneto-electric Technology Co.,Ltd is abbreviated from the famous physicists– Volt, Ampere and Tesla. The meanings of VAT hard work in the research and development of products, pioneering spirit and courage in the exploration of new technology. Our company is dedicated to the research and development of magneto-electric equipment and aimed to play aleading role in the field of the production of magneto-electric equipment. VAT Magneto-electric Technology Co.,Ltd. was found in 1999 and exclusively engaged in the production of magnetizer, demagnetizer and magnetic measuring equipment.
