Quick Details
-
Material:
-
Wooden case, Stainless Steel/FRP
-
Weight:
-
3000kg
-
Size:
-
400*80*160CM
-
Power:
-
18kw
-
Weight (KG):
-
3000 kg
-
Product name:
-
Water Treatment System
-
Application:
-
Filtration
-
Certification:
-
ISO9001 CE
-
Capacity:
-
50TPH
-
Function:
-
Producing Fresh Water
-
Raw water TDS:
-
<1000PPM
-
Brand:
-
CHUNKE
Quick Details
-
Warranty of core components:
-
18 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHUNKE
-
Material:
-
Wooden case, Stainless Steel/FRP
-
Weight:
-
3000kg
-
Size:
-
400*80*160CM
-
Power:
-
18kw
-
Weight (KG):
-
3000 kg
-
Product name:
-
Water Treatment System
-
Application:
-
Filtration
-
Certification:
-
ISO9001 CE
-
Capacity:
-
50TPH
-
Function:
-
Producing Fresh Water
-
Raw water TDS:
-
<1000PPM
-
Brand:
-
CHUNKE

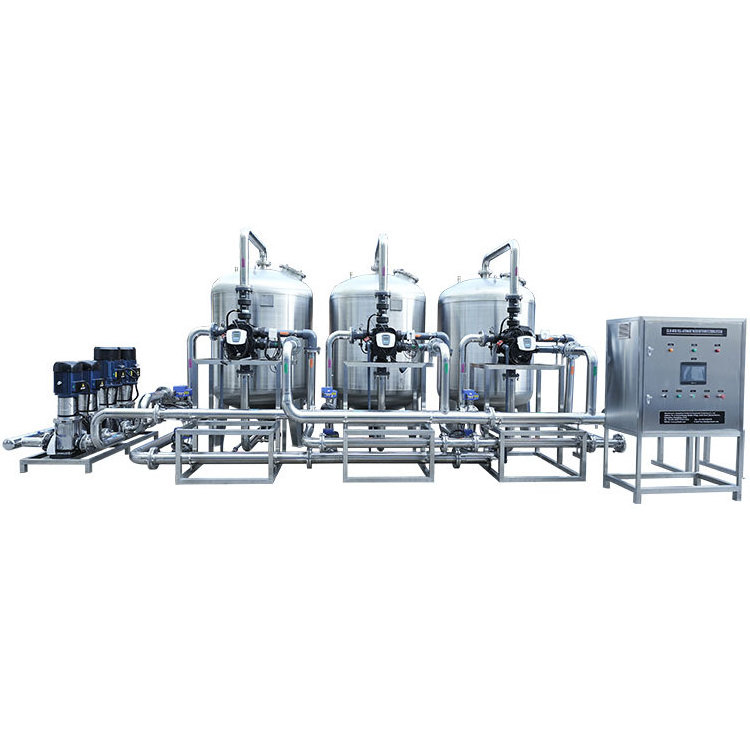

0.5 - 100Tons/hour Quartz sand filter water treatment, Sand filter tank
Why Choose Us
The scope of use of filter system:P
Standard configuration:
1. Automatic valve (optional: manual valve )
2. FRP fiberglass tank (optional: carbon steel, stainless steel tank)
3. Filter material Sand, Active carbon (optional: gravel, anthracite, manganese sand, etc.)
Working Principle:
Multi-media filter is the process of using filter medium to pass water with high turbidity through a certain thickness of filter
layer under a certain pressure, so as to effectively remove suspended impurities and clarify the water. The commonly used filter materials are quartz sand, activated carbon, anthracite , manganese sand, etc., mainly used to remove turbidity, pre-treatment of pure water, etc., the turbidity of the effluent can reach below 3NTU.
Function:
The multi-media filter can effectively remove impurities such as mud, suspended solids, colloids and algae in the water. It is a commonly used pretreatment device for deep water purification, and different filter materials can be added according to process requirements.
Application:
Pretreatment of reverse osmosis, electrodialysis, ion exchanger, ultrafiltration and other systems Pre-filtration treatment of raw water for power generation, chemical industry, paper making, beverages, etc. Decolorization and removal of organic matter in chemical plant feed water Pretreatment of domestic water Industrial water treatment Swimming pool water treatment Circulating water filter system Surface water, groundwater turbidity and color removal. Wastewater treatment
1. Automatic valve (optional: manual valve )
2. FRP fiberglass tank (optional: carbon steel, stainless steel tank)
3. Filter material Sand, Active carbon (optional: gravel, anthracite, manganese sand, etc.)
Working Principle:
Multi-media filter is the process of using filter medium to pass water with high turbidity through a certain thickness of filter
layer under a certain pressure, so as to effectively remove suspended impurities and clarify the water. The commonly used filter materials are quartz sand, activated carbon, anthracite , manganese sand, etc., mainly used to remove turbidity, pre-treatment of pure water, etc., the turbidity of the effluent can reach below 3NTU.
Function:
The multi-media filter can effectively remove impurities such as mud, suspended solids, colloids and algae in the water. It is a commonly used pretreatment device for deep water purification, and different filter materials can be added according to process requirements.
Application:
Pretreatment of reverse osmosis, electrodialysis, ion exchanger, ultrafiltration and other systems Pre-filtration treatment of raw water for power generation, chemical industry, paper making, beverages, etc. Decolorization and removal of organic matter in chemical plant feed water Pretreatment of domestic water Industrial water treatment Swimming pool water treatment Circulating water filter system Surface water, groundwater turbidity and color removal. Wastewater treatment
How to get a quotation from us?
1. Tell us what`s your raw water source and quality
2. Tell us what`s your application of water treatment system
3. Tell us what`s the water flow per hour you need for your applications
4. Tell us what`s outlet water quality required for your applications
5. Confirm the technical process from us
6. Make a proposal and quotation for you
Communicate-Negotiate-Place orders-Produce-Ship
1. Tell us what`s your raw water source and quality
2. Tell us what`s your application of water treatment system
3. Tell us what`s the water flow per hour you need for your applications
4. Tell us what`s outlet water quality required for your applications
5. Confirm the technical process from us
6. Make a proposal and quotation for you
Communicate-Negotiate-Place orders-Produce-Ship
Product Paramenters
|
Model
|
CK-MF-1-100T/H
|
Remark
|
|
Production Capacity
|
1-100000 Liters Per Hour
|
24hour a day
|
|
Power Supply
|
220V/380V 50Hz/60Hz
|
Customization
|
|
Raw Water Pump
|
7.5KW
|
CNP
|
|
Quartz Sand Filter
|
φ1200×2400mm
|
FRP
|
|
Carbon Filter
|
φ1200×2400mm
|
FRP
|
|
Cartridge Filter
|
40‘’ X 5μm pp filter
|
7pcs
|
|
High Pressure Pump
|
18.5KW
|
CNP
|
|
RO Membrane
|
8040
|
12pcs
|
|
Membrane Housing
|
8040-4
|
3pcs
|
|
Raw water Conductivity
|
≤500us/cm
|
|
|
Pure water Conductivity
|
≤10us/cm
|
|
Detailed Images
Packing & Delivery
|
RO machine size:
|
400*80*160CM
|
|
Total weight:
|
3000kg
|
FAQ
Q:Are you a manufacturer or trade company?
A:We are a manufacturer in water treatment machine field more than 20 years, located at Baiyun, Guangzhou. We can pick you up to visit our factory.
Q:What about the delivery time?
A:Usually 15~40 Working days
Q:What about the machine’s capacity?
A:100L-500T per hour.
Q:The after-sale service
A:18 months warranty.
Provide guide videos and online support to help test machines, and train buyer's staff for installing, operating and maintaining. When necessary, we can also send technician to your factory.
Q:Do you have any certification?
A:SGS,ISO,CE, Guangdong High-Tech Enterprise, etc.
Q: If I want to buy a machine, what information do I need to tell you?
A:What kind of source water do you need to purify?
b.Raw water analysis report . (If no, talk to our saler)
c. Producing capacity requirement? How many litre per hour?
d.Working condition
e.Treated-water quality requirement
Q:What kinds of product you supply?
A: Reverse osmosis(RO) water purification system
EDI Desalination System
Ultrafiltration(UF) System
Brackish Water Desalination System
Seawater Desalination System
Drinking Water Filling Line
Reclaimed-Water Recycling System
Water Treatment Accessories
Stainless Steel Products
A:We are a manufacturer in water treatment machine field more than 20 years, located at Baiyun, Guangzhou. We can pick you up to visit our factory.
Q:What about the delivery time?
A:Usually 15~40 Working days
Q:What about the machine’s capacity?
A:100L-500T per hour.
Q:The after-sale service
A:18 months warranty.
Provide guide videos and online support to help test machines, and train buyer's staff for installing, operating and maintaining. When necessary, we can also send technician to your factory.
Q:Do you have any certification?
A:SGS,ISO,CE, Guangdong High-Tech Enterprise, etc.
Q: If I want to buy a machine, what information do I need to tell you?
A:What kind of source water do you need to purify?
b.Raw water analysis report . (If no, talk to our saler)
c. Producing capacity requirement? How many litre per hour?
d.Working condition
e.Treated-water quality requirement
Q:What kinds of product you supply?
A: Reverse osmosis(RO) water purification system
EDI Desalination System
Ultrafiltration(UF) System
Brackish Water Desalination System
Seawater Desalination System
Drinking Water Filling Line
Reclaimed-Water Recycling System
Water Treatment Accessories
Stainless Steel Products
