Quick Details
-
Frame material:
-
Magnesium alloy
-
Unfold size (L*W*H):
-
1000*580*965mm
-
Fold size (L*W*H):
-
580*300*750mm
-
Max load:
-
100kg
-
Brushless Motor:
-
150W*2pcs
-
Lithium Battery:
-
24V10AH
-
Driving distance:
-
20km
-
Controller:
-
Smart Controller
-
Brake System:
-
electromagnetic brake
-
Warranty:
-
1 Year
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Ai Soleij
-
Model Number:
-
M6006
-
Frame material:
-
Magnesium alloy
-
Unfold size (L*W*H):
-
1000*580*965mm
-
Fold size (L*W*H):
-
580*300*750mm
-
Max load:
-
100kg
-
Brushless Motor:
-
150W*2pcs
-
Lithium Battery:
-
24V10AH
-
Driving distance:
-
20km
-
Controller:
-
Smart Controller
-
Brake System:
-
electromagnetic brake
-
Warranty:
-
1 Year
Product Description

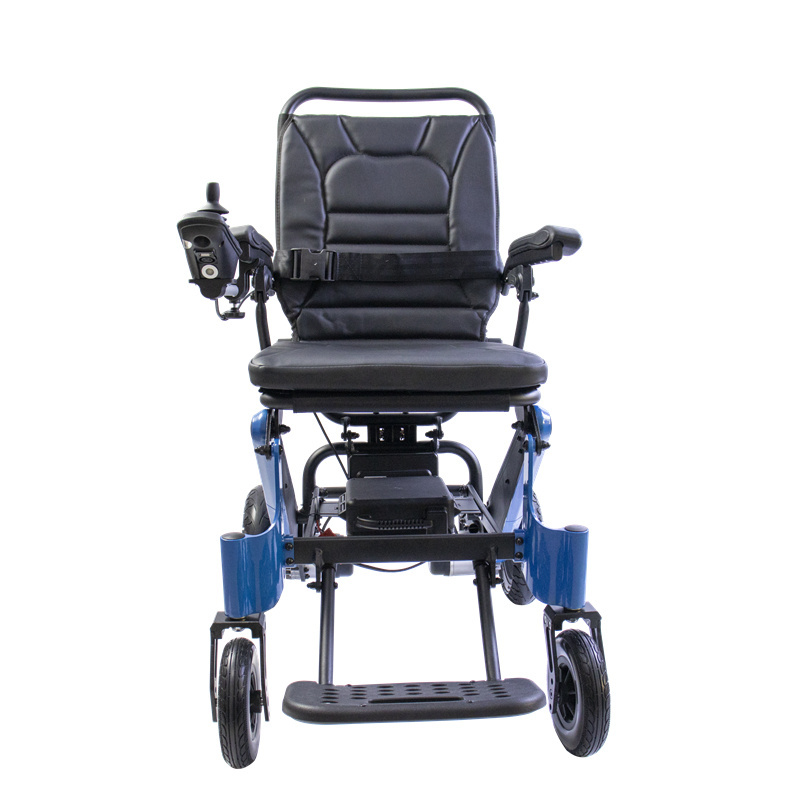

100kg loading disabled folding light electric wheelchair conversion kit
M6006 Magnesium Folding Electric Power Wheelchair Futures:
1. Automobile grade AM60B magnesium alloy integrated die-casting main frame.
2. The weight is 35 % lighter than aluminum material under same volume.
3. Quick folding with one button.
4. Easy for transportation and storage
5. Seat cover Soft PU.
6. Backrest Foldable
7. Footrest Foldable
8. Arm Rest Flip up with PU top
1. Automobile grade AM60B magnesium alloy integrated die-casting main frame.
2. The weight is 35 % lighter than aluminum material under same volume.
3. Quick folding with one button.
4. Easy for transportation and storage
5. Seat cover Soft PU.
6. Backrest Foldable
7. Footrest Foldable
8. Arm Rest Flip up with PU top
Specification
100kg loading disabled folding light electric wheelchair conversion kit
|
Model No.
|
M6006
|
|
Frame material
|
Magnesium alloy
|
|
Unfold size (L*W*H)
|
1000*580*965mm
|
|
Fold size （L*W*H）
|
580*300*750mm
|
|
Max speed
|
6KM/H
|
|
Max load
|
100kg
|
|
Climbing slope
|
≤8°
|
|
Motor
|
Brushless motor 150W*2pcs
|
|
Controller
|
Smart Controller
|
|
Brake System
|
electromagnetic brake
|
|
Lithium battery
|
24V10AH*1PC
|
|
Charger
|
24V 2AH
|
|
Charging time
|
5-6 hours
|
|
Driving distance
|
20KM
|
|
Front wheels
|
7 inch PU solid
|
|
Rear wheel
|
10 inch magnesium alloy wheel with solid rubber
|
|
Seat width
|
410mm (16")
|
|
Seat height
|
540mm
|
|
Seat depth
|
420mm
|
|
Turning radius
|
500mm
|
|
Obstacle crossing ability
|
40mm
|
|
Net weight (with battery)
|
23kg
|
|
Gross weight
|
27kg
|
|
Package box size
|
59*32.5*81cm
|
