The thickness of 14mm turntable ensures the support strength.The claw with 15 teeth is made of alloy steel to enhance the wear resistance and hardness.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Wolange
-
Model Number:
-
W-969
-
Warranty:
-
12 Months
-
product name:
-
Tire Changer Machine
-
model:
-
W-969
-
Gross weight:
-
220kg
-
colour:
-
Red/blue/grey
-
MOQ:
-
1
-
Place of origin:
-
China
-
Inside clamping:
-
13-24"
-
Outside clamping:
-
10''-22''
-
Certification:
-
CE / ISO9001
-
Usage:
-
Car Tire Repairing
Quick Details
-
Motor Power:
-
1.1kw/0.75kw
-
Operating Pressure:
-
8-10bar
-
Power Supply:
-
110v/220v/380v 50/60HZ
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Wolange
-
Model Number:
-
W-969
-
Warranty:
-
12 Months
-
product name:
-
Tire Changer Machine
-
model:
-
W-969
-
Gross weight:
-
220kg
-
colour:
-
Red/blue/grey
-
MOQ:
-
1
-
Place of origin:
-
China
-
Inside clamping:
-
13-24"
-
Outside clamping:
-
10''-22''
-
Certification:
-
CE / ISO9001
-
Usage:
-
Car Tire Repairing
Products Description
|
Product Name
|

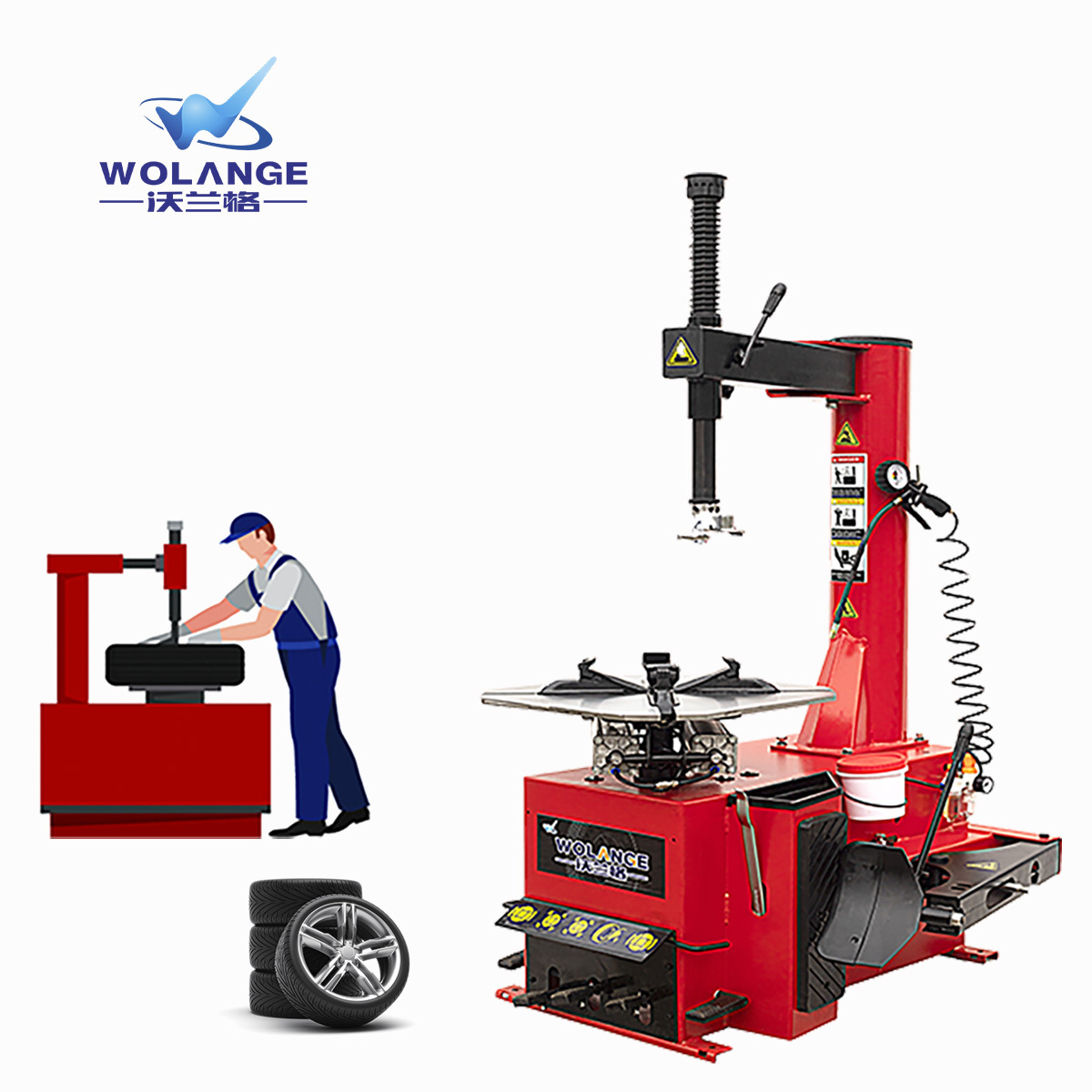

Swing Arm Tire changer
|
Product Model
|
W-969
|
|
Brand
|
Wolange
|
Place of origin
|
China
|
|
Bead Breaking Force
|
3000kg
|
Voltage
|
110v/220v/240v/380v 50HZ/60HZ
|
|
Outside Clamping
|
10-22"
|
Inside Clamping
|
13-24"
|
|
Power
|
0.75kw/1.1kw
|
Working Pressuer
|
8-10bar
|
|
Maximum width
|
3-15"
|
Maximum wheel diameter
|
1040mm
|
|
Working noise
|
<70db
|
Packing
|
Plywood Box
|
|
Warranty service
|
12 Months
|
Certification
|
CE Approved
|
|
Equipment size
|
1100mm*900mm*1650mm
|
Packing dimensions
|
1150mm*910mm*1750mm
|
Work Table
Small Cylinder Assembly
Small cylinder with high strength piston and aluminum alloy cylinder block, better sealing, to ensure stable work without air leakage.
The Foot Pedal Part
The foot adopts separated foot assembly, five gears control, easy operation,convenient maintenance.
The Internal Structure
Pure copper motor, high power, long life.Aluminous material is adopted in big cylinder which to avoid rust to guarantee the long life using,And with fast exhaust valve to make faster and greater tire pressure.
Random accessories
1.Dial tyre pressure gauge
2.Standard filter+Regulator+Lubricator
3.Mounting head
4.Crowbar
