Quick Details
-
Bore Size:
-
20/25/32/40mm
-
Working Medium:
-
Air
-
Operating Temperature:
-
-10~70℃
-
Working Pressure:
-
0.05~1MPa
-
Speed Range:
-
50~750mm/s
-
Port Size:
-
M5x0.8, G1/8'', G1/4''
-
Buffer:
-
Rubber buffer(sandard)/Air Buffer(option)
-
Color:
-
Silver
-
Certificates:
-
CE, ISO, RoHS
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XCPC
-
Acting Type:
-
Double acting
-
Bore Size:
-
20/25/32/40mm
-
Working Medium:
-
Air
-
Operating Temperature:
-
-10~70℃
-
Working Pressure:
-
0.05~1MPa
-
Speed Range:
-
50~750mm/s
-
Port Size:
-
M5x0.8, G1/8'', G1/4''
-
Buffer:
-
Rubber buffer(sandard)/Air Buffer(option)
-
Color:
-
Silver
-
Certificates:
-
CE, ISO, RoHS

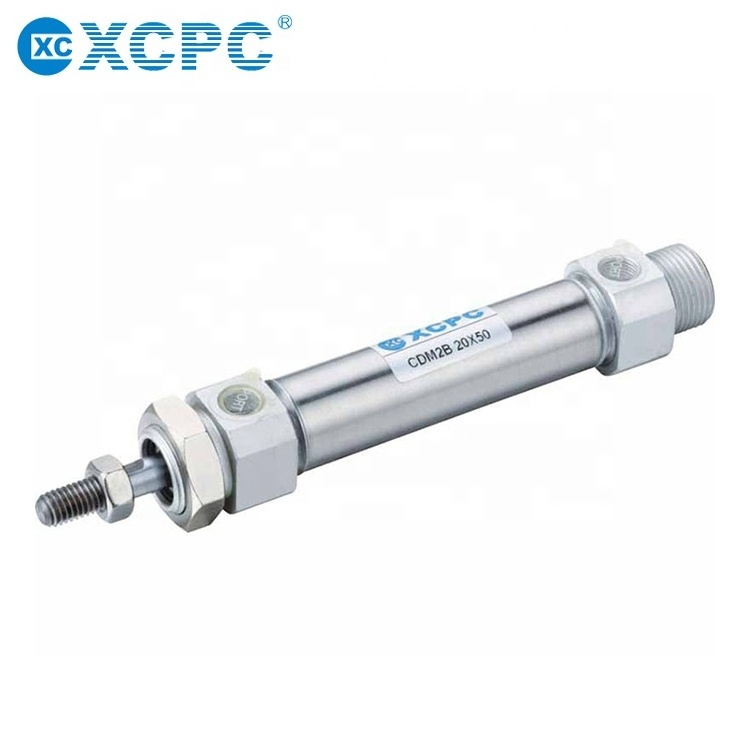

CM2 Series Stain less Steel Mini Cylinder
Product Description
1. Ordering Code
2. Specification
| Bore(mm) | 20 | 25 | 32 | 40 |
| Working Medium | Air | |||
| Motion Pattern | Double action | |||
| Ensured Pressure Resistance | 15.3kgf/cm2(1.5Mpa) | |||
| Max.pressure | 10.2kgf/cm2(1.0Mpa) | |||
| Min.pressure | 0.5kgf/cm2(0.05Mpa) | |||
| Operating Temperature Range | -10~+70℃ | |||
| Operating Speed Range | 50~750mm/s | |||
| Buffering | Rubber buffer(Standard),Air buffer(Optional) | |||
| Margin of Stroke Error(mm) | 1.4 | |||
| 0mm | ||||
| Port size | G1/8" | G1/8" | G1/8" | G1/4" |
3. Overall Dimension
