Quick Details
-
Production Capacity (kg/h):
-
1000 - 10000
-
Sieve Size(mm):
-
600*1000mm
-
Marketing Type:
-
Hot Product 2024
-
Power (kW):
-
0.5
-
Weight:
-
300 KG
-
Application:
-
Seeds Grain Cleaning
-
Product name:
-
TQLZ Grain Vibratory Screen Separator
-
Function:
-
Grain Size Separation
-
Name:
-
Grain Seed Cleaning Screening Machine
-
Processing Material:
-
Green Beans
-
After-sales Service Provided:
-
Online Support
-
Usage:
-
Grains Seed Cleaning Screening
-
Keywords:
-
Electric Sieve Vibrator
-
Feature:
-
Big Capacity
-
Where to Use:
-
Air Blower Grain Cleaners
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Mugworthe mech
-
Use:
-
Grain Cleaning and Grading
-
Production Capacity (kg/h):
-
1000 - 10000
-
Sieve Size(mm):
-
600*1000mm
-
Marketing Type:
-
Hot Product 2024
-
Power (kW):
-
0.5
-
Weight:
-
300 KG
-
Application:
-
Seeds Grain Cleaning
-
Product name:
-
TQLZ Grain Vibratory Screen Separator
-
Function:
-
Grain Size Separation
-
Name:
-
Grain Seed Cleaning Screening Machine
-
Processing Material:
-
Green Beans
-
After-sales Service Provided:
-
Online Support
-
Usage:
-
Grains Seed Cleaning Screening
-
Keywords:
-
Electric Sieve Vibrator
-
Feature:
-
Big Capacity
-
Where to Use:
-
Air Blower Grain Cleaners
Product Description

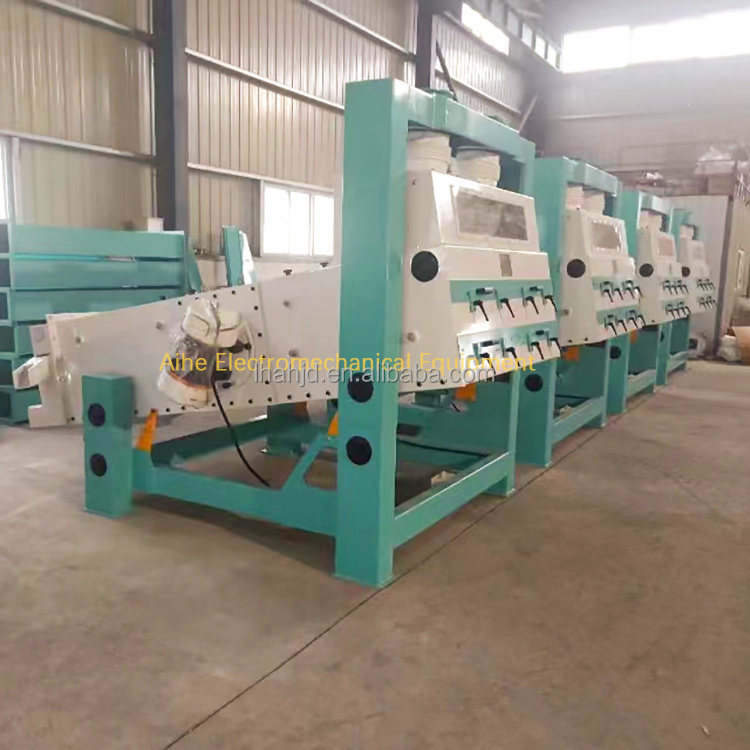

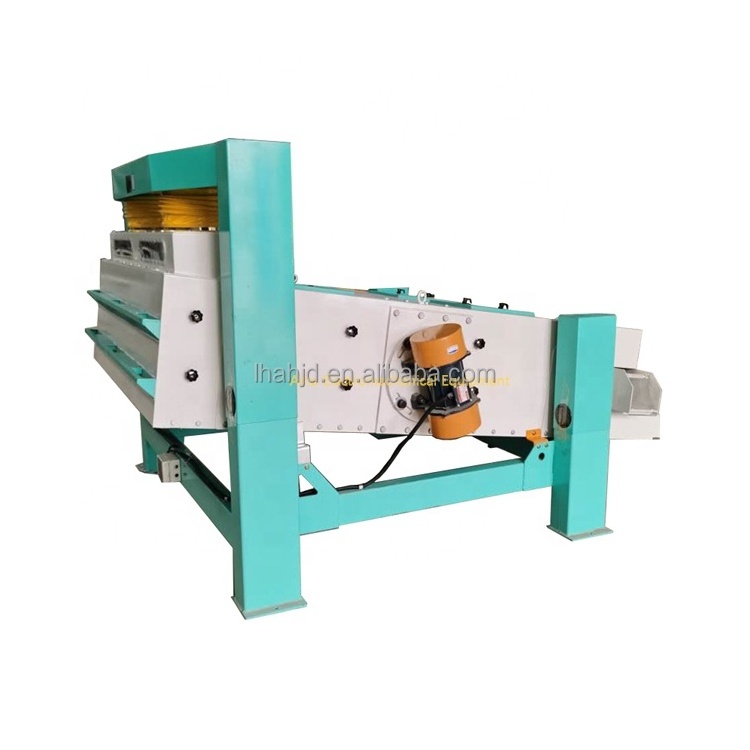

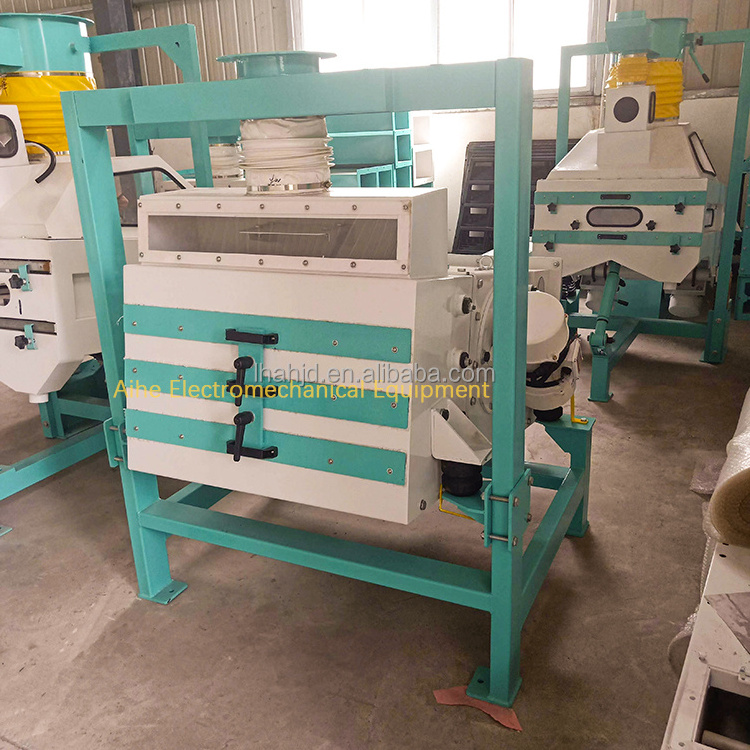

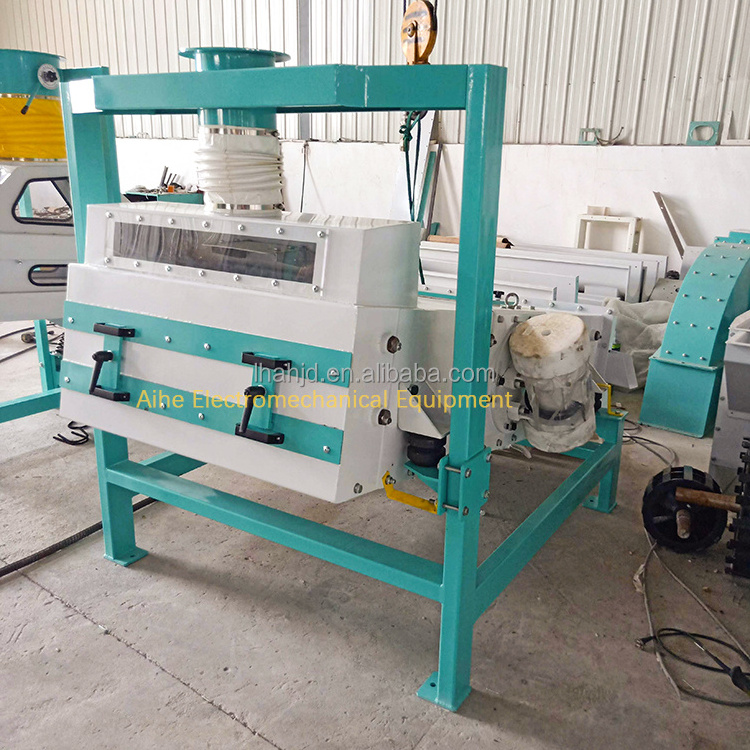

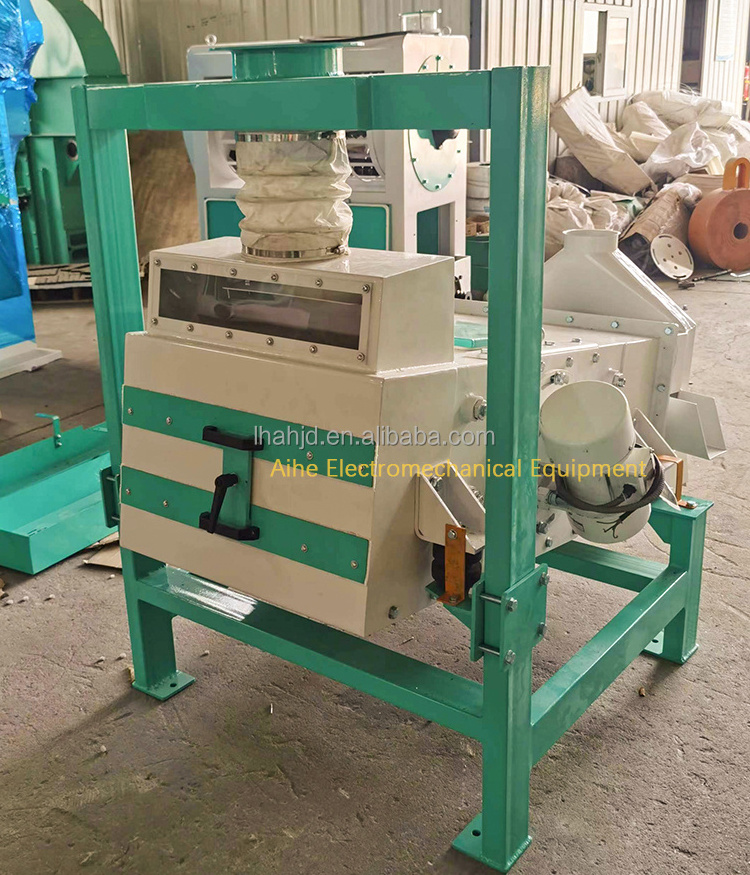

Big capacity automatic Vibrating wheat cleaning machine seed grain cleaner
Series AH-TQLZ sieving machine is designed for separating impurties of large,middle and small sizes as well as light weight from the grain. The use of preferred components such as vibratory motor and damping rubber spring in the screens of this series offers good performance,i e,low noice steady operation,great capacity,low energy consumptinideal cleaning ffectsfully enclosed unit,and so on,The associated vertical air suction duct of Series is also used together with other cleaning equipment to separate such light
impurity as dust and husk pieces,Therefore,The sieve has two layers. The first layer can separate out coarse impurities larger than the material (such as large pieces of wood, leaves,stringand straw), while the second layer can separate out fine impurities smaller than grain (such as sand and small pieces of gravel).It can also sort and clean various materials according to different sizes.
Vibrating separator is designed with different sieve to remove the impurities according to the different length, width, thickness and weight between the grain and impurities. the inclination of the sieve can be adjusted as required.under the function of vibration motor, the materials on the sieve will vibrate and de-compact inordinately, so the materials will grade automatically.in order to optimize the cleaning effect, air suction channel or air circulation suction device can be used together with the machine.
widely used in flour mills, feed mills, seed purification plants, chemical plants and rice milling plants for wheat, corn, oats,soybeans, sesame, buckwheat, oilseeds and rice.
impurity as dust and husk pieces,Therefore,The sieve has two layers. The first layer can separate out coarse impurities larger than the material (such as large pieces of wood, leaves,stringand straw), while the second layer can separate out fine impurities smaller than grain (such as sand and small pieces of gravel).It can also sort and clean various materials according to different sizes.
Vibrating separator is designed with different sieve to remove the impurities according to the different length, width, thickness and weight between the grain and impurities. the inclination of the sieve can be adjusted as required.under the function of vibration motor, the materials on the sieve will vibrate and de-compact inordinately, so the materials will grade automatically.in order to optimize the cleaning effect, air suction channel or air circulation suction device can be used together with the machine.
widely used in flour mills, feed mills, seed purification plants, chemical plants and rice milling plants for wheat, corn, oats,soybeans, sesame, buckwheat, oilseeds and rice.
|
Model
|
Screen size(mm)
|
Power (kw)
|
Capacity(t/h)
|
Weight(kg)
|
Dimensions(mm)
|
|
AH-TQLZ60
|
600*1000
|
0.25*2
|
1-3
|
270
|
600*1000
|
|
AH-TQLZ80
|
800*1250
|
0.25*2
|
3-5
|
360
|
800*1250
|
|
AH-TQLZ100
|
1000*1500
|
0.37*2
|
10-30
|
750
|
1000*1500
|
|
AH-TQLZ125
|
1250*1500
|
0.37*2
|
15-40
|
850
|
1250*1500
|
|
AH-TQLZ150
|
1500*2000
|
0.75*2
|
20-60
|
1100
|
1500*2000
|
Two layer sieves make the machine with perfect cleaning effection.
