Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tengzhou Xinde CNC Machine Tool Co., Ltd
-
Model Number:
-
ZAY7040G
-
Dimension(L*W*H):
-
770*880*1860
-
Power (kW):
-
1.1
-
Weight (KG):
-
365 KG
-
Marketing Type:
-
New Product 2024
-
Product name:
-

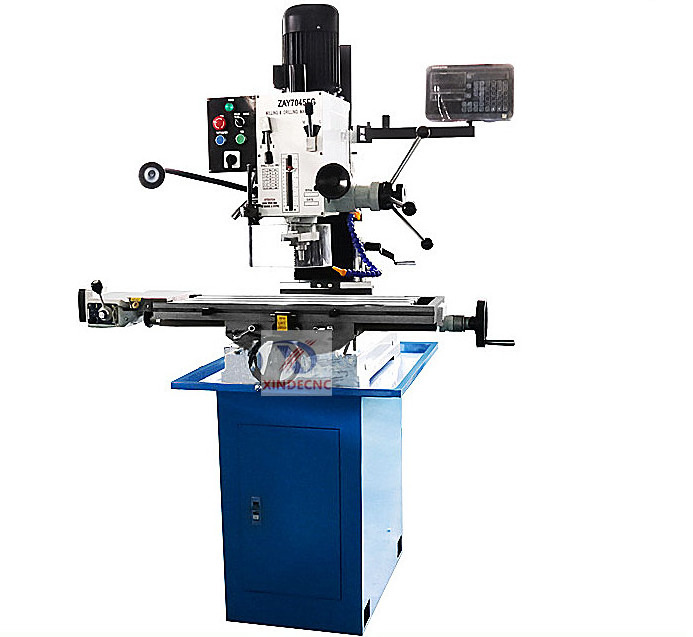

Vertical drilling and milling machine
-
Keyword:
-
Vertical Drilling Tapping Machine
-
After-sales Service Provided:
-
Engineers
-
Application:
-
Metal Processing
-
Usage:
-
Metal Drilling Milling
-
Function:
-
Drilling Milling Machining
-
Max. drilling dia:
-
32mm
-
Max.face milling capacity:
-
63mm
-
Spindle travel:
-
130mm
-
model:
-
ZAY7040G
Quick Details
-
type:
-
Drilling & Milling Machine
-
Max. Drilling Dia. (mm):
-
40
-
Range of Spindle Speed(r.p.m):
-
95 - 1500 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tengzhou Xinde CNC Machine Tool Co., Ltd
-
Model Number:
-
ZAY7040G
-
Dimension(L*W*H):
-
770*880*1860
-
Power (kW):
-
1.1
-
Weight (KG):
-
365 KG
-
Marketing Type:
-
New Product 2024
-
Product name:
-
Vertical drilling and milling machine
-
Keyword:
-
Vertical Drilling Tapping Machine
-
After-sales Service Provided:
-
Engineers
-
Application:
-
Metal Processing
-
Usage:
-
Metal Drilling Milling
-
Function:
-
Drilling Milling Machining
-
Max. drilling dia:
-
32mm
-
Max.face milling capacity:
-
63mm
-
Spindle travel:
-
130mm
-
model:
-
ZAY7040G
1.Integrated casting structure
The bed seat, bed body, and other main components are all cast from high-strength materials to ensure the long-term use of the machine tool
2.gear drive
Vertical milling adopts gear transmission, and the spindle can be fine tuned
3Quenched guide rail
Wear resistant cast iron, audio quenching guide rail
4Automatic feed
Optional X-axis automatic feed.
5.Three axis digital display
Optional three axis digital display for accurate digital reading operation.
Product main technical parameters:
|
SPECIFICATIONS
|
Units
|
ZAY7020G
|
ZAY7032G
|
ZAY7040G
|
ZAY7045G
|
|
Max. drilling dia
|
mm
|
20
|
32
|
40
|
40
|
|
Max.face milling capacity
|
mm
|
63
|
63
|
80
|
80
|
|
Max.end milling capacity
|
mm
|
20
|
20
|
32
|
32
|
|
Distance between spindle nose and table surface
|
mm
|
439
|
440
|
440
|
440
|
|
Distance from spindle axis to column surface
|
mm
|
197.5
|
272.5
|
272.5
|
272.5
|
|
Spindle travel
|
mm
|
80
|
130
|
130
|
130
|
|
Spindle taper
|
-
|
M.T.3 or R8
|
M.T.3 or R8
|
M.T.3 or R8
|
M.T.3 or R8
|
|
Spindle speed steps
|
-
|
6
|
6
|
6
|
6
|
|
Spindle speed
|
rpm
|
50Hz 95-1420
60Hz 115-1700
|
50Hz 80-1250
60Hz 95-1500
|
50Hz 80-1250
60Hz 95-1500
|
50Hz 80-1250
60Hz 95-1500
|
|
Swivel angle of headstock (horizontal)
|
。
|
360/±90
|
360/±90
|
360/±90
|
360/±90
|
|
Table size
|
mm
|
520*160
|
800*240
|
00*240
|
00*240
|
|
Table travel
|
mm
|
290*140
|
500*175
|
500*175
|
500*175
|
|
Main motor Power
|
kw
|
0.37
|
0.75
|
1.1
|
1.5
|
|
Machine weight
|
kg
|
190
|
365
|
368
|
370
|
|
overall dimension
|
mm
|
680*750*1700
|
770*880*1860
|
770*880*1860
|
770*880*1860
|
|
Loading amount
|
-
|
48pcs/20′container
|
36pcs/20′container
|
36pcs/20′container
|
36pcs/20′container
|
Q1. How can I get a quotation?
A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2. Can you provide customized machine or SPM (Special purpose machine)?
A. Yes, we provide smart CNC solutions for our customer, in order to increase efficiency.
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q5. What’s the delivery time, and what’s the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
