Quick Details
-
Type:
-
Charging Hub
-
Product name:
-
Drone Battery Charging Hub station
-
Material:
-
ABS
-
Suitable for:
-
DJI Mini 3 Pro/Mini 3/Mini 4 Pro
-
Compatibility:
-
Mavic Mini 3 Drone
-
Input voltage:
-
5V/9V/12V/20V 3A
-
Output:
-
8.5V
-
Capacity:
-
2453mAh ,3850mAh
-
Charging time:
-
45 mins ~ 195 mins
-
Description:
-
Charger in sequence
-
Package:
-
11*10*5cm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
STARTRC
-
Model Number:
-
1111104
-
Type:
-
Charging Hub
-
Product name:
-
Drone Battery Charging Hub station
-
Material:
-
ABS
-
Suitable for:
-
DJI Mini 3 Pro/Mini 3/Mini 4 Pro
-
Compatibility:
-
Mavic Mini 3 Drone
-
Input voltage:
-
5V/9V/12V/20V 3A
-
Output:
-
8.5V
-
Capacity:
-
2453mAh ,3850mAh
-
Charging time:
-
45 mins ~ 195 mins
-
Description:
-
Charger in sequence
-
Package:
-
11*10*5cm

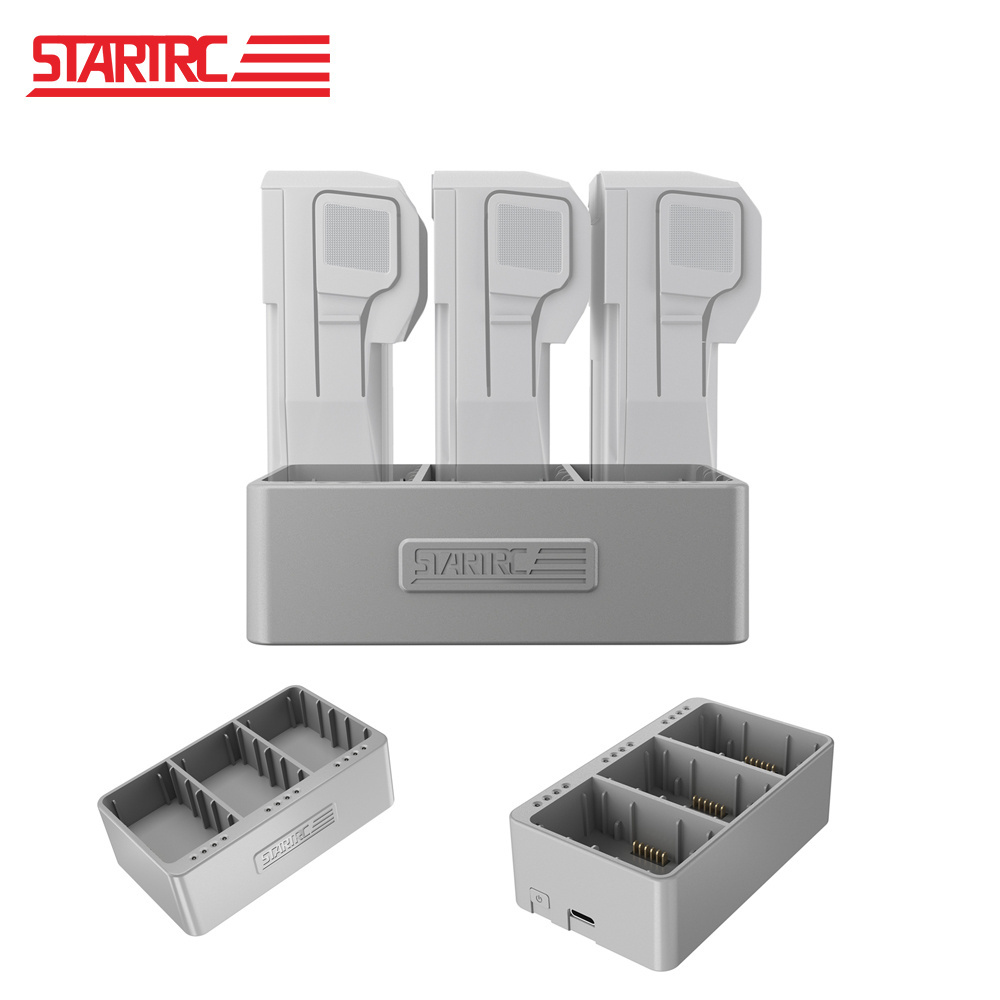

STARTRC Intelligent Flight Battery Charger Charging Hub for DJI Mini 3 Pro /Mini 3/Mini 4 Pro Mini Series Charger Drone Accessories
Introduction
The charging hub was designed for DJI Mini 3 Pro
/Mini 3/Mini 4 Pro
drone intelligent flight battery and intelligent flight battery plus. The hub gives you the ability to insert and intelligently recharge up to three flight batteries at once, and check the level of batteries. Especially,it can automatically detect and will intelligently recharge the battery that has the most power first. That way, you can have a full battery for your Mini 3 Pro ready to go ASAP.
Instruction
The charging hub will give priority to charging the battery which has the most power
1.Charging time:
About 45 minutes for 1 piece Mini 3 Pro
/Mini 3/Mini 4 Pro
Intelligent Flight Battery (2453 mAh);
About 135 minutes for 3 pieces
Mini 3 Pro
/Mini 3/Mini 4 Pro
Intelligent Flight Batteries (2453 mAh)
.
About 65 minutes for 1 piece
Mini 3 Pro
/Mini 3/Mini 4 Pro
Intelligent Flight Battery Plus (
3850 mAh);
About 195 minutes for 3 pieces
Mini 3 Pro
/Mini 3/Mini 4 Pro
Intelligent Flight Batteries Plus (3850 mAh);
2. Put your battery on the charging hub, and press down the button,then you can check the battery level. There is no need to plug cable.
Specifications
Color: Gray
Net weight: 61G
Gross weight: 113G
Size: 94×55×30mm
Package size: 103×82×40mm
Charging ambient temperature: 7-40℃
Input voltage: 5V/9V/12V/20V 3A ( support PD fast charging (max))
Output: 8.5V 4.0A (Max)
Notes: it is recommended to use DJI 30W USB-C charger or other charger which supports USB PD fast charging protocol
In the box
1. Charging hub *1
2. USB to Type-C charging cable *1
3. Type-c to Type-C charging cable *1
4. Manua l*1
