Quick Details
-
Maximum working radius:
-
8.83m and 0.2t
-
Long, wide, high:
-
2.98m 0.8m 1.5m
-
Machine weight:
-
2.35t
Quick Details
-
Weight (KG):
-
2350
-
Place of Origin:
-
China
-
Maximum elevation on the ground:
-
9.2m and 0.7t
-
Maximum working radius:
-
8.83m and 0.2t
-
Long, wide, high:
-
2.98m 0.8m 1.5m
-
Machine weight:
-
2.35t

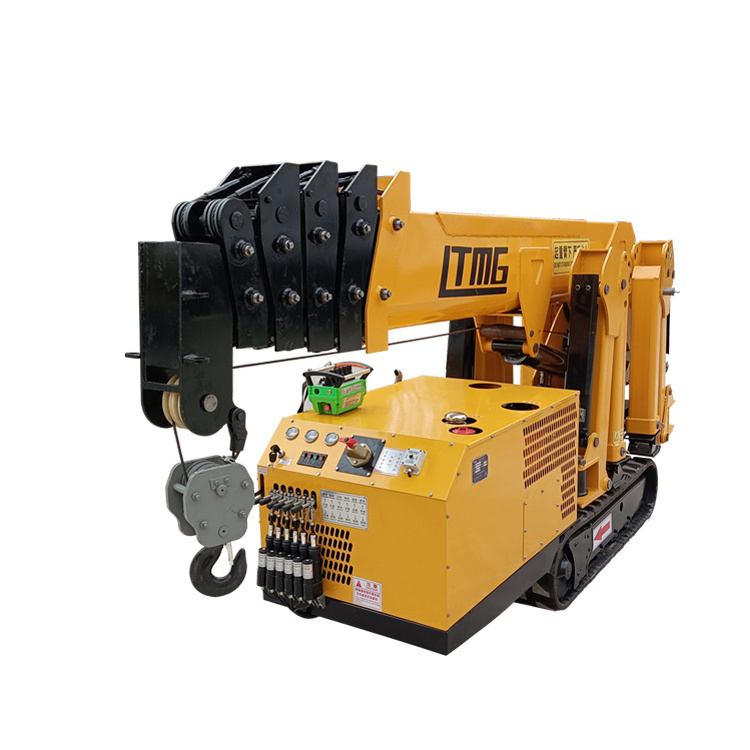

Product Description
Specification
|
specifications
|
|
3t
|
|
|
Maximum working radius
|
|
8.83m×0.2t
|
|
|
Maximum elevation on the ground
|
|
9.2mX0.7t
|
|
|
Maximum underground elevation
|
|
10 mX 1 t (4 rope) 20 mX 1 t (2 rope) 40mX0.74t (1 rope)
|
|
|
Roll up device
|
Lift hook up speed
|
0-8m / min (4 ropes)
|
|
|
|
Steel wire rope specifications
|
Φ8mm×45m
|
|
|
retractor device
|
Hanging arm form
|
5-section boom, U-shaped structure
|
|
|
|
Hanging arm length / time
|
3.1m-9.2m/20sec
|
|
|
Up and down device
|
Arm angle / time
|
0-78°/13sec
|
|
|
gyroscope
|
Swing angle / speed
|
0-360° (continuous) / 60 sec
|
|
|
landing leg
|
The form of leg action
|
Manual rotation + oil pressure automatic support (two legs)
|
|
|
|
Maximum extension amplitude (mm)
|
4530 (Long) X4370 (Rear) X3700 (Front)
|
|
|
running gear
|
Walking way
|
Hydraulic motor drive, two-speed
|
|
|
|
speed of travel
|
0-2.5km/h
|
|
|
|
climbing capacity
|
25°(36%)
|
|
|
any power-generating or power-driven machine
|
voltage
|
AC380V
|
|
|
engine
|
The producer
|
Often firewood
|
|
|
|
Type / displacement
|
EV80/F195
|
|
|
|
starting mode
|
Electric start
|
|
|
|
Start performance
|
-5°C~40°C
|
|
|
|
Fuel / volume
|
Diesel / 8L
|
|
|
|
battery capacity
|
12v 45AH
|
|
|
|
specific fuel consumption
|
274g/kW-h
|
|
|
|
noise grade
|
Rated rotation speed of 81.5dBA (1m)
|
|
|
|
effluent standard
|
Two countries
|
|
|
operating system
|
Operation type (boom / leg), manual walking
|
Manual operation, manual walking (optional remote control)
|
|
|
|
operational characteristic
|
Manual operation (optional remote control)
|
|
|
standard layout
|
Diesel engine and electric motor (dual-power power)
|
|
|
|
Long, wide, high
|
2.98m 0.8m 1.5m
|
|
|
|
Machine weight
|
2.35T
|
|
|
|
track
|
230 (width) 72 (pitch) 50 (section)
|
|
|
|
Choose to install
|
Optional assembly of the torque controller
|
|
|
