Quick Details
-
Model Number:
-
ZOPIN-FM
-
Shape:
-
Sheet
-
Material:
-
Nickel
-
Chemical Composition:
-
Ni
-
Cell Size (PPI):
-
5-500ppi
-
Tensile Strength (Theoretical):
-
8~50MPa
-
Volume Density:
-
>0.1g/cm³, as per request
-
Thermal Conductivity (Theoretical):
-
>3W/M.K
-
Purity:
-
> 99%
-
Thickness:
-
1-100mm
-
Porosity:
-
95%-98%
-
Surface Density:
-
3500 g/m ^2, as per request
-
Mechanical Strength (Theoretical):
-
≥2~7MPa
Quick Details
-
Application:
-
Industrial
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Zopin
-
Model Number:
-
ZOPIN-FM
-
Shape:
-
Sheet
-
Material:
-
Nickel
-
Chemical Composition:
-
Ni
-
Cell Size (PPI):
-
5-500ppi
-
Tensile Strength (Theoretical):
-
8~50MPa
-
Volume Density:
-
>0.1g/cm³, as per request
-
Thermal Conductivity (Theoretical):
-
>3W/M.K
-
Purity:
-
> 99%
-
Thickness:
-
1-100mm
-
Porosity:
-
95%-98%
-
Surface Density:
-
3500 g/m ^2, as per request
-
Mechanical Strength (Theoretical):
-
≥2~7MPa
Product Description

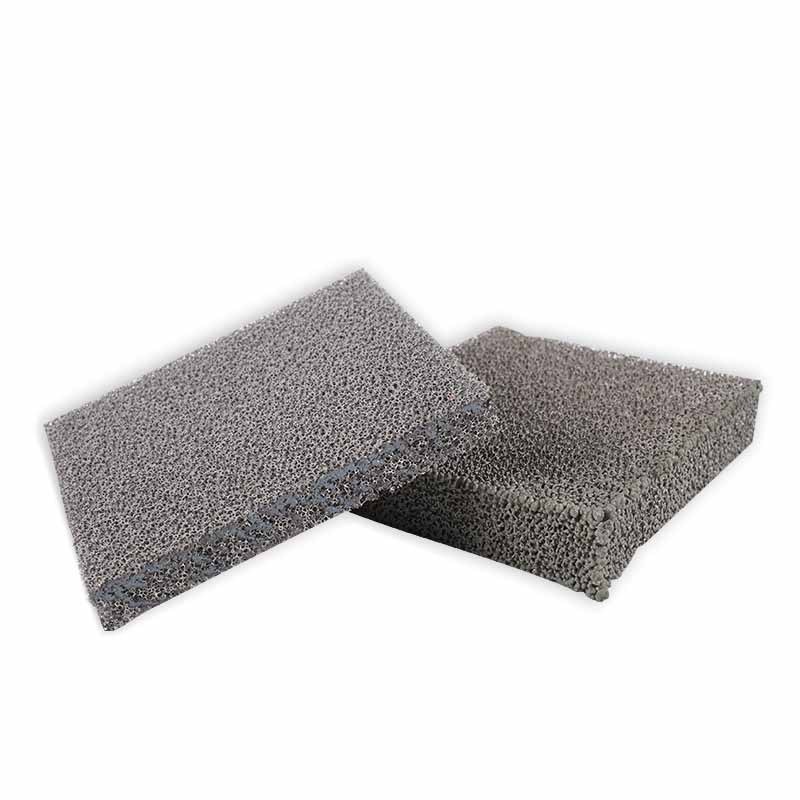

Ni Foam product is composed by pure Nickel. Product shows excellent properties of corrosion resistance and hardness.
Usefulness: (Various shapes can be produced)
1. Used as the base plate/substrate of positive electrode in Ni-MH / Ni-Cd battery, Supercapacitor.
2. Filtration materials of air / oil / smoke etc.
3. Porous electrode in Galvano-Chemistry Engineering.
4. Elimination of heat.
5. Amortization materials.
6. Noise-Absorbing and Vibration-Absorbing materials.
7. Electromagnetic shielding materials.
8. Catalyst carrier.
Usefulness: (Various shapes can be produced)
1. Used as the base plate/substrate of positive electrode in Ni-MH / Ni-Cd battery, Supercapacitor.
2. Filtration materials of air / oil / smoke etc.
3. Porous electrode in Galvano-Chemistry Engineering.
4. Elimination of heat.
5. Amortization materials.
6. Noise-Absorbing and Vibration-Absorbing materials.
7. Electromagnetic shielding materials.
8. Catalyst carrier.
9. Precious metal recovery.
|
Type
|
Open cell
|
|
Purity
|
> 99%
|
|
Form
|
Sheet or Roll, depending on size & thickness
|
|
Cell Size (PPI)
|
10-150PPI, as per request
|
|
Thickness
|
Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request
|
|
Size & Shape
|
Standard: 500*500mm/ 200*300mm; can be made in different shape as per request
|
|
Porosity
|
95%-98%
|
|
Open Cell Rate
|
≥98 %
|
|
Volume Density
|
>0.1g/cm3, as per request
|
|
Surface Density
|
200-2500 g/m ^2, as per request
|
|
Thermal Conductivity (Theoretical)
|
>3W/M.K
|
|
Mechanical Strength (Theoretical)
|
≥2~7MPa
|
|
Tensile Strength (Theoretical)
|
8~50MPa
|
|
Temperature Resistance (Theoretical)
|
≥500℃
|
|
0.1mm*200mm*300mm
|
0.2mm*200mm*300mm
|
0.3mm*200mm*300mm
|
|
0.5mm to 1.7mm*200mm*300mm
|
2mm*200mm*300mm
|
3 to 4mm*200mm*300mm
|
|
5mm*200mm*300mm
|
6mm*200mm*300mm
|
8mm*200mm*300mm
|
|
10mm*200mm*300mm
|
10 to 20mm*200mm*300mm
|
The size can be customized
|
