Quick Details
-
power phase number:
-
three phase 380v 415V 440v 460v
-
Place of Origin:
-
China
-
Brand Name:
-
M-driver
-
Model Number:
-
900-0150G3,900-0185G3
-
Warranty:
-
18 months
-
Type:
-
AC drive, General purpose frequency inverter
-
Size:
-
290*160*182MM
-
Product name:
-
PUMP Inverter
-
Close or open loop system:
-
Open loop
-
Input rated voltage and frequency:
-
3PH 380V 50/60Hz
-
Output voltage and frequency:
-
3PH 380V 0~500Hz
-
Power output:
-
15KW/20HP, 18.5KW/25HP
-
Overload Capacity:
-
150%- 60s,180%- 3s
-
Output waveform:
-
PWM
-
Communication:
-
RS485/Modbus (optional)
-
Application:
-
Fans , blowers, pumps , conveyors,etc
Quick Details
-
Control Mode:
-
V/F, SVC,PID,torque
-
Rated Power:
-
15KW/20HP,18.5kw/25hp
-
Nominal Voltage:
-
380V~480V
-
power phase number:
-
three phase 380v 415V 440v 460v
-
Place of Origin:
-
China
-
Brand Name:
-
M-driver
-
Model Number:
-
900-0150G3,900-0185G3
-
Warranty:
-
18 months
-
Type:
-
AC drive, General purpose frequency inverter
-
Size:
-
290*160*182MM
-
Product name:
-
PUMP Inverter
-
Close or open loop system:
-
Open loop
-
Input rated voltage and frequency:
-
3PH 380V 50/60Hz
-
Output voltage and frequency:
-
3PH 380V 0~500Hz
-
Power output:
-
15KW/20HP, 18.5KW/25HP
-
Overload Capacity:
-
150%- 60s,180%- 3s
-
Output waveform:
-
PWM
-
Communication:
-
RS485/Modbus (optional)
-
Application:
-
Fans , blowers, pumps , conveyors,etc

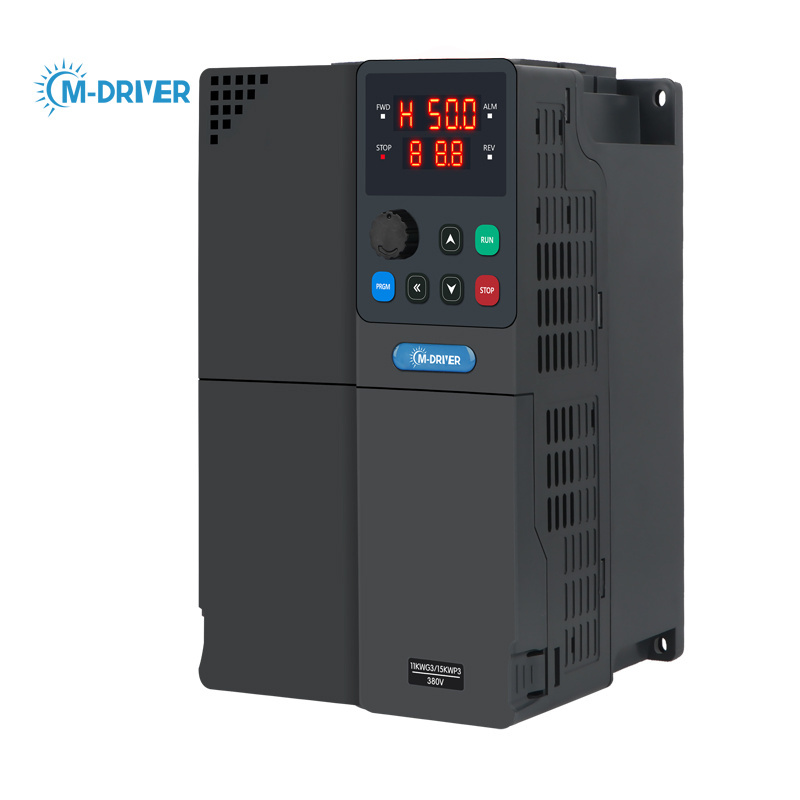

M-driver 3 Phase 18.5kw 25HP Pump Inverter VFD 380v AC Motor Speed Controller
frequency inverter,vfd,ac motor drive,vsd,frequency converter,variable frequency drive,speed drive,vsd,vfd
Product Description
M-driver 900 series general purpose frequency inverter
Ranging from single phase three phase 220 volts ac 0.75kw to 22kw, three phase 380 volts~480 volts ac 0.75kw to 45kw .
Features：
1. New hardware design with double CPU for faster protection of the inverter and motor
2. Besides three phase ac motor, it can also work with single phase ac motor and PM motor
3. Better vector control . The hardware support autotune of motor parameters
4. Built-in professional parameters for constant pressure water supply.
5. Profound terminals for various applications such as fans, pumps, injection machine, extruder, crusher, compressor, etc
6. Dismantlable keypad
7. The keypad can be connected to inverter by extension cable
8. Unique heat sink design can ensure a outstanding heat dissipation
|
Model
|
900-0150G3,900-01850G3
|
|
Power range
|
3 phase AC 380V ac (-15%~+30%) 0.75~45KW |
|
Output Frequency Range
|
0~500Hz
|
|
Control Mode
|
V/F Control, Sensorless Vector Control,torque control,PID
|
|
Starting Torque
|
0.5Hz/150%(SVC), 1Hz/150%(V/F);
|
|
Communication port
|
RS-485, which support MODBUS protocol (optional)
|
|
Vibration
|
Less than 5.9m/s
|
|
Fault Protection
|
protect from over current, over voltage, under voltage, over temperature, phase failure, over load etc.
|
|
Item
|
Specifications
|
|
|
|
Basic function
|
Over load capability
|
G type:150% rated current 60s;180% rated current 3s |
|
|
|
|
P type:120% rated current 60s;150% rated current 3s
|
|
|
|
Torque boost
|
Auto torque boost function; Manual torque boost 0.1%~30.0% |
|
|
|
V/F curve
|
Linear V/F, multi-point V/F and square V/F curve(power of 1.2,1.4,1.6,1.8,2)
|
|
|
|
V/F separation
|
2 ways: separation and semi-separation |
|
|
|
Acc./dec curve
|
Straight line or S curve acceleration and deceleration mode, |
|
|
|
|
Four kinds of acceleration and deceleration time. Acceleration and deceleration time range from 0.0s to 6500.0s
|
|
|
|
DC braking
|
DC braking frequency:0.00Hz to maximum frequency. Braking time:0.0s to 36.0s
|
|
|
|
|
Brake current value:0%-100%
|
|
|
|
|
Jog frequency range:0.00Hz~50.00Hz;
|
|
|
|
|
Jog acceleration/deceleration:0.0s~6500.0s.
|
|
|
|
Simple PLC
|
It can realize at maximum of 16 segments speed
|
|
|
Basic function
|
Multiple segment speed running
|
Running via the built-in PLC or control terminal.
|
|
|
|
Built-in PID
|
It is easy to realize process-controlled closed loop control system. |
|
|
|
Auto voltage regulation (AVR)
|
It can keep constant output voltage automatically in the case of change of network voltage.
|
|
|
|
Over-voltage/current stall control
|
It can limit the running voltage/current automatically and prevent frequent over-voltage/current tripping during the running
process. |
|
|
|
Quick current limit
|
Minimize the over-current fault, protect normal operation of the AC Drive.
|
|
|
|
Torque limit & control
|
"Excavators" characteristics, automatically limit torque during operation, prevent frequent over-current tripping. Closed loop
vector mode can realize the torque control. |
|
|
Personalized function
|
Instantaneous stop non-stop
|
When instantaneous power off, voltage reduction is compensated through load feedback energy, which could make AC Drive keep
running in a short period of time. |
|
|
|
Rapid current limit
|
To avoid AC Drive frequent over-current fault.
|
|
|
|
Timing control
|
Timing control function:set time range 0Min~6500.0Min.
|
|
|
Keyboard operation
|
Keyboard potentiometer
|
Equipped with keyboard potentiometer or coding potentiometer. |
|
|
Keyboard operation
|
Protection function
|
It can implement power-on motor short-circuit detection, input /output phase loss protection, over current protection, over
voltage protection, under voltage protection, overheating protection and overload protection. |
|
|
Environment
|
Using place |
Indoor, and be free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
|
|
|
|
Altitude
|
Below 1000m |
|
|
|
Ambient temperature
|
-10 ℃ to +40 ℃ (Derating use when under ambient temperature of 40 ℃ to 50 ℃)
|
|
|
|
Humidity
|
Less than 95%RH,without condensing
|
|
|
|
Vibration
|
Less than 5.9m/s (0.6g)
|
|
Detailed Images
Application
Packing&Shipping
Packed by carton box or wooden box. 0.4kw-93kw VFD models are packed by carton box ,110kw-630kw VFD models are packed by woodn box. Thickened shockproof foam is filled inside for better protection.
Company Introduction
With more than 16 years experience, we focus on R&D, production and sales at VFD(variable frequency drive).
Shenzhen M-Driver Technology Co., LTD. (M-Driver) is located in Shenzhen, the "National Innovative City".
Shenzhen M-Driver Technology Co., LTD. (M-Driver) is located in Shenzhen, the "National Innovative City".
Since its establishment, M-Driver company has been focusing on frequency control system and other power electronic transmission technology from R&D, production and marketing. Relying on the core technology platform of high performance vector frequency conversion control technology and power electronic drive technology,and powerful marketing network platform,we provide customers with professional motor drive and auxiliary solutions such as PLC, man-machine interface and servo drive. At present,our products have been sold to more than 50 countries and regions,and won praise from customers at home and abroad.
At present, we have established a nationwide marketing and after-sales service network in many cities and provinces in China. At the same time, our overseas business is booming rapidly. If you get any interest in being the reseller or distributor of M-driver products in your local market, please contact us for more information.
Our Advantages
FAQ
Q 1: Are you trading company or manufacturer ?
We are factory.
Q 2: How long is your lead time?
Generally 3-7 days if the goods are in stock, or 10-20 days if the stocks are not enough, it is according to quantity.
Q 3: Do you provide samples ? is it free or extra ?
Yes, we provide samples and charge for the samples with freight cost. The sample fees will be returned if the order quantity over 500pcs.
Q 4: What is your terms of payment ?
We accept T/T(30% deposit, 70% balance), L/C and CASH.
Q 5: What is the standard of package?
Single small carton or plywood crate.
Q 6. Is there any discount ?
The discount will depend on the quanlity you purchase.
Q 7. What is your supply capacity?
The daily production is 2000pcs.
Q 8. Do you provide warranty for the goods?
Yes, we provide 18 months warranty for all the goods.
Q 9. Could M-driver provide technical support?
Yes, we worked 16 years in this field and have a lot of experienced engineers, they will provide solutions if get a problem.
