Quick Details
-
Model Number:
-
LT3220C
-
Max. Current:
-
15A
-
Mechanical Life:
-
100,000 cycles min
-
IP level:
-
IP67
-
Contact Type:
-
ON-ON
-
Application:
-
Electrical equipment,instrument and meter,automation machine
-
Color:
-
Black
-
mounting size:
-
12.00mm
-
Size:
-
29*57.5*23.5mm
-
Packing:
-
Carton
-
Terminal:
-
Quick Terminal
-
Electrical Life:
-
50,000 cycles min.
-
Protection Degree:
-
IP67
Quick Details
-
Max. Voltage:
-
125/250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Lema
-
Model Number:
-
LT3220C
-
Max. Current:
-
15A
-
Mechanical Life:
-
100,000 cycles min
-
IP level:
-
IP67
-
Contact Type:
-
ON-ON
-
Application:
-
Electrical equipment,instrument and meter,automation machine
-
Color:
-
Black
-
mounting size:
-
12.00mm
-
Size:
-
29*57.5*23.5mm
-
Packing:
-
Carton
-
Terminal:
-
Quick Terminal
-
Electrical Life:
-
50,000 cycles min.
-
Protection Degree:
-
IP67

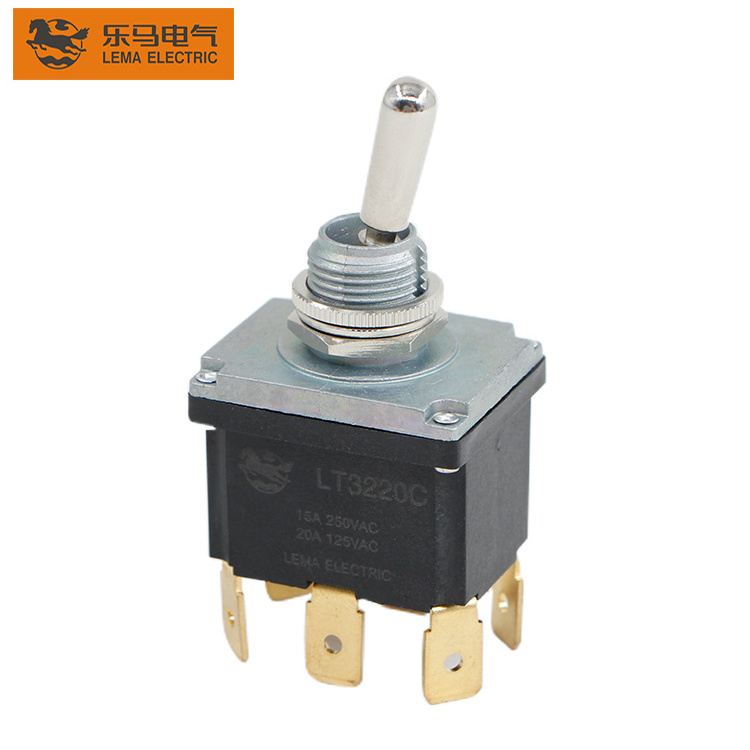

Product Description
|
Brand
|
LEMA
|
|
Model
|
LT3220C
|
|
Voltage
|
250V/125VAC
|
|
Electric Current
|
15A
|
|
Mounting Holes Dimension
|
φ12mm
|
|
Contact form:
|
ON-ON
|
|
Package
|
CARTON
|
|
Size
|
29*57.5*23.5MM
|
|
Material
|
Bakelite
|
|
Operating frequency
|
|
30 times/min
|
|
|
|||
|
Initial insulation resistance
|
|
100MΩmin.(at 500VDC)
|
|
|
|||
|
Initial contact resistance
|
|
25MΩmax.
|
|
|
|||
|
Dielectric strength
|
Between non-consecutive terminals
|
1,000Vrms, 50/60Hz for 1 min
|
|
|
|||
|
|
Between non-current carrying
metal parts and each terminal |
2,000Vrms, 50/60Hz for 1 min
|
|
|
|||
|
|
Between ground and each
terminal |
2,000Vrms, 50/60Hz for 1 min
|
|
|
|||
|
Vibration resistance
|
|
10-55Hz,1.5mm double amplitude
|
|
|
|||
|
Shock resistance
|
|
Durable: 1000m/s2(100G)max.
Malfunction: 300m/s2(30G)max. |
|
|
|||
FAQ
|
Q: How do you control the products’ quality?
A: 100% Auto inspection machine and manual testing together before packing. |
|
|
|
|
||||
|
Q: What's your payment term?
A: We usually accept T/T. Samples cost can be paid by PayPal, Western Union. |
|
|
|
|
||||
|
Q: Would you accept to use our logo?
A: If you have good quantity, we can make OEM and ODM, customized specification. |
|
|
|
|
||||
|
Q: Can I get a sample for reference?
A: We are glad to send samples for your testing. Samples are free, but you may need to pay the express cost. |
|
|
|
|
||||
|
Q: What is your delivery time?
A: Usually it takes 15-20 working days for productions. |
|
|
|
|
||||
