Quick Details
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
12270
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Online support, Free spare parts
-
Brand Name:
-
SINOTRUK
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
8545*2496*3500
-
Cargo Tank Dimension:
-
5600*2400*1600
-
Engine:
-
WD615.69 375hp EURO3
-
Rated Power:
-
276kw/2200rmp
-
Transmission:
-
HW19710 10 forward, 2 reverse
-
Rear Axle Ratio:
-
4.8
-
Bucket Dimension:
-
5600*2400*1600mm
-
Bucket Thickness:
-
Bottom-8mm, Side-6mm
-
Front Axle:
-
HF9, 7tons loading capacity
-
Rear Axle:
-
HC16, 18tons loading capacity
-
Tire specifications:
-
12.00R20 16PR*10pcs
-
Certification:
-
CE BV ISO9001 CCC DOT
Quick Details
-
Condition:
-
Used
-
Horsepower:
-
375hp
-
Emission Standard:
-
Euro 3
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
12270
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Online support, Free spare parts
-
Brand Name:
-
SINOTRUK
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
8545*2496*3500
-
Cargo Tank Dimension:
-
5600*2400*1600
-
Engine:
-
WD615.69 375hp EURO3
-
Rated Power:
-
276kw/2200rmp
-
Transmission:
-
HW19710 10 forward, 2 reverse
-
Rear Axle Ratio:
-
4.8
-
Bucket Dimension:
-
5600*2400*1600mm
-
Bucket Thickness:
-
Bottom-8mm, Side-6mm
-
Front Axle:
-
HF9, 7tons loading capacity
-
Rear Axle:
-
HC16, 18tons loading capacity
-
Tire specifications:
-
12.00R20 16PR*10pcs
-
Certification:
-
CE BV ISO9001 CCC DOT
Specifications

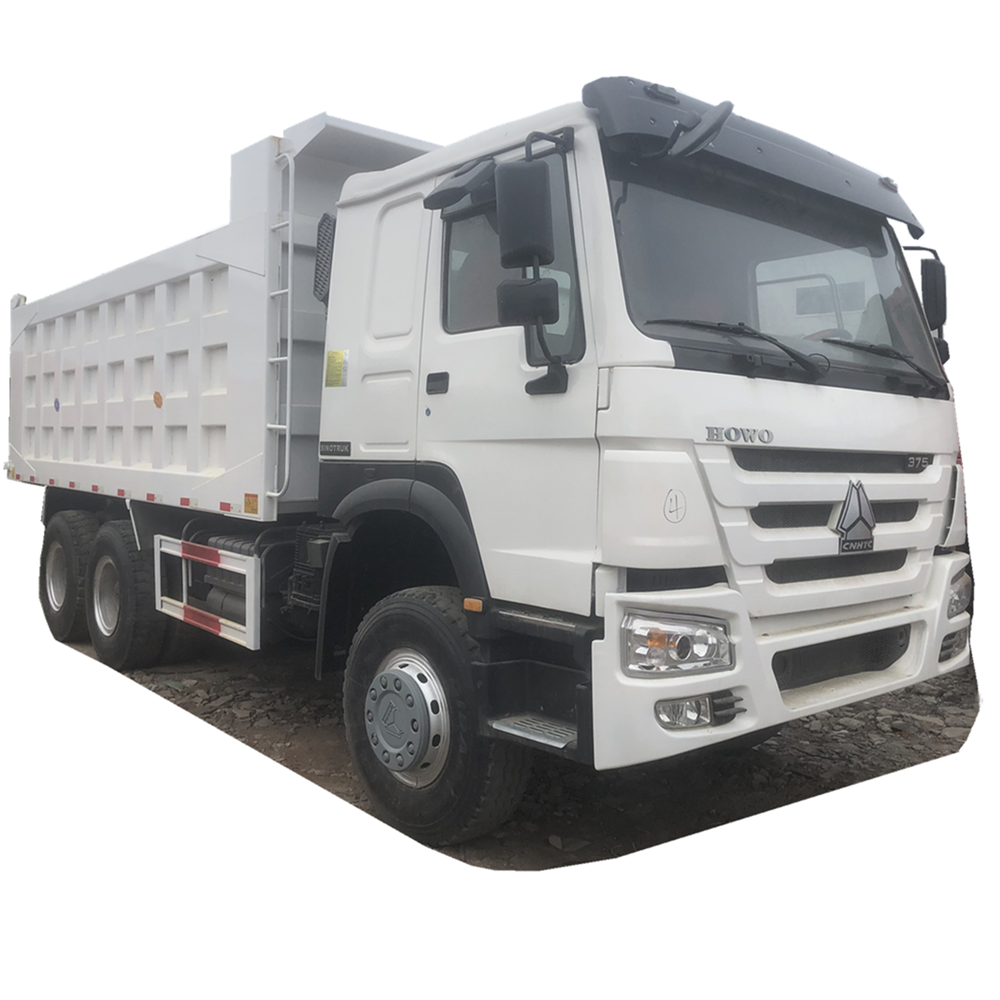

Used Dump Truck Tipper Trailer Howo Truck Used 6x4 Sinotruk 371hp 375hp For Sale
|
Specifications
|
|
|
|
|||
|
Model
|
ZZ3257N3647C
|
Brand
|
SINOTRUK HOWO
|
|||
|
Drive
|
6x4
|
Wheel Base
|
3625+1350mm
|
|||
|
Overall Dimensions
|
8545*2496*3450mm
|
Tread(front/rear)
|
2041+1830/1830mm
|
|||
|
Approaching Angle
|
19°
|
Departure Angle
|
26°
|
|||
|
Curb Weight
|
12,270.00kg
|
Loading Capacity
|
30tons
|
|||
|
Max Speed
|
75km/h
|
Overhang(front/rear)
|
1500/1870mm
|
|||
|
Engine
|
|
|
|
|||
|
Model
|
WD615.69 6 cylinders in line, water cooling, 4 strokes, Common Rail System
|
|
|
|||
|
DIsplacement
|
9.726L
|
Feul Consumption
|
41.7L/100km
|
|||
|
Emission Standard
|
EURO 3
|
Horse Power
|
375hp
|
|||
|
Rear Axle Ratio
|
4.8
|
Rated Speed
|
2200rpm
|
|||
|
Torque
|
1500N.m/1100-1600rpm
|
|
|
|||
|
Gearbox
|
|
|
|
|||
|
Model
|
HW19710
|
Transmission Type
|
Manual
|
|||
|
Forward
|
10 speed
|
Reverse
|
2 speed
|
|||
|
Chassis and Tyre
|
|
|
|
|||
|
Front Axle Loading
|
HF9 7000kgs
|
Rear Axle Loading
|
HC16 18000kgs
|
|||
|
Tyre
|
12.00R20 16PR
|
Tyre No.
|
11pcs
|
|||
|
Rear Bucket
|
|
|
|
|||
|
Bucket Dimension
|
5600*2300*1600mm
|
Hydraulic System
|
front/middle lift
|
|||
|
Bucket Bottom Thickness
|
8mm
|
Bucket Side Thickness
|
6mm
|
|||
