Quick Details
-
Weight (KG):
-
0.5 kg
-
Type:
-
water filter catridge
-
Technical:
-
powder metallurgy
-
Color:
-
silver grey
-
Application:
-
filter water, solution or air
-
Material:
-
pure titanium powder
-
Function:
-
Filtering Suspended Matter
-
Temperature:
-
under 200 degree
-
filter precision:
-
0.2micron-70micron
-
Connection:
-
Flange,Tri-clamp,Thread
-
Porosity:
-
30-40%
Quick Details
-
Core Components:
-
filter
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Qixin
-
Weight (KG):
-
0.5 kg
-
Type:
-
water filter catridge
-
Technical:
-
powder metallurgy
-
Color:
-
silver grey
-
Application:
-
filter water, solution or air
-
Material:
-
pure titanium powder
-
Function:
-
Filtering Suspended Matter
-
Temperature:
-
under 200 degree
-
filter precision:
-
0.2micron-70micron
-
Connection:
-
Flange,Tri-clamp,Thread
-
Porosity:
-
30-40%

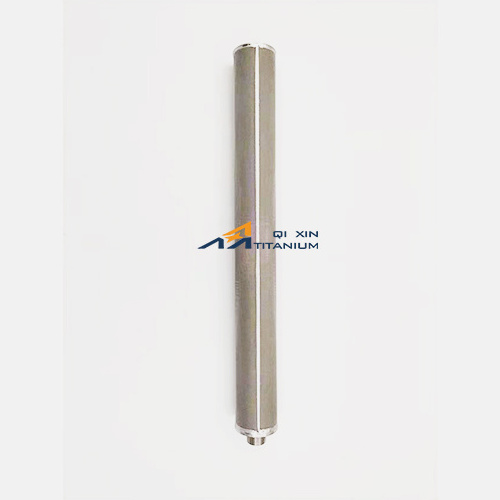

Sintered Porous Titanium Water Filter Cartridge
Available specification:
| OD | customized |
| Thickness of wall | customized |
| Length | <1000mm, more than 1m need to be welded. |
| Connectors | DOE,SOE,Thread,Screw,Flange,220,222,226(Code7) |
Related datatailed :
|
Item Name |
Titanium Water Filter Cartridge |
|
Porosity |
30%-50% |
|
Aperture |
4μ-160μ |
|
Filtration precision |
0.2μm-100μm |
|
Filtration Efficiency |
98% filtration accuracy under:0.1 - 80um |
|
Shape |
Disc,squareness,tubular,rodlike |
|
Work environment |
Nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid, 5% hydrochloric acid, molten sodium, hydrogen, nitrogen, hydrogen sulfide, acetylene, water vapor, hydrogen, gas, carbon dioxide gas environment |
Technical parameters( Allow ≤250°C the conditions of using)
|
Filtering level |
Filtering precision (μm) |
Maximum Aperture (μm) |
Permeability (m 3 /h.m 2 .kpa) |
Thickness (mm) |
Compressive strength (Mpa/cm 2 ) |
|
T9 |
0.2 |
2.5 |
1.5 |
3 |
3 |
|
T8 |
0.5 |
4 |
3 |
3 |
3 |
|
T7 |
1 |
6 |
5 |
3 |
3 |
|
T6 |
2 |
10 |
15 |
3 |
3 |
|
T5 |
5 |
15 |
40 |
3 |
2.5 |
|
T4 |
10 |
30 |
120 |
3 |
2.5 |
|
T3 |
20 |
60 |
250 |
3 |
2.5 |
|
T2 |
30 |
100 |
500 |
3 |
2.5 |
|
T1 |
50 |
160 |
800 |
3 |
2.5 |
Packing details:
We will suggest you the packing by plywood cases or cartons. Because we must consider about
the safe and freight cost.
Inside of the Plywood cases,we usually keep the products inside a plastic bag to prevent the
products from being scratched.
Most importantly,we must ensuring the products safe during shipping and you pay less freight.
Shipping terms:
Below is the shipping terms we usually suggest.
By Express:
FedEX, DHL, TNT, SF etc.
By sea:
1.Conditions:
Your ordering weight is high, you want to pay less freight.
You
don
’
t
want the products urgently.
2.Features:
Longer shipping time(About 15-30 days), low shipping cost, Safe.
By air:
1.Conditions:
Your ordering weight is low, you want a sample.
You want the products urgently.
You want the products shipped door to door(By Express).
2.Features:
Fast delivery (About 4-10 days), Higher shipping cost, Safe.
Most importantly,the products will be shipped according to customers
’
demands.
After receive your inquiry,we need to analyze your detailed demands. If your demands are not
details,we need ask for your detailed demands including the application,the precision sizes,
the tolerance,etc.Then we could offer you the fittest price,the delivery time,shipping terms,
payment. Most importantly,your demands is our offering standard.
