Quick Details
-
Weight (KG):
-
190000
-
Product name:
-

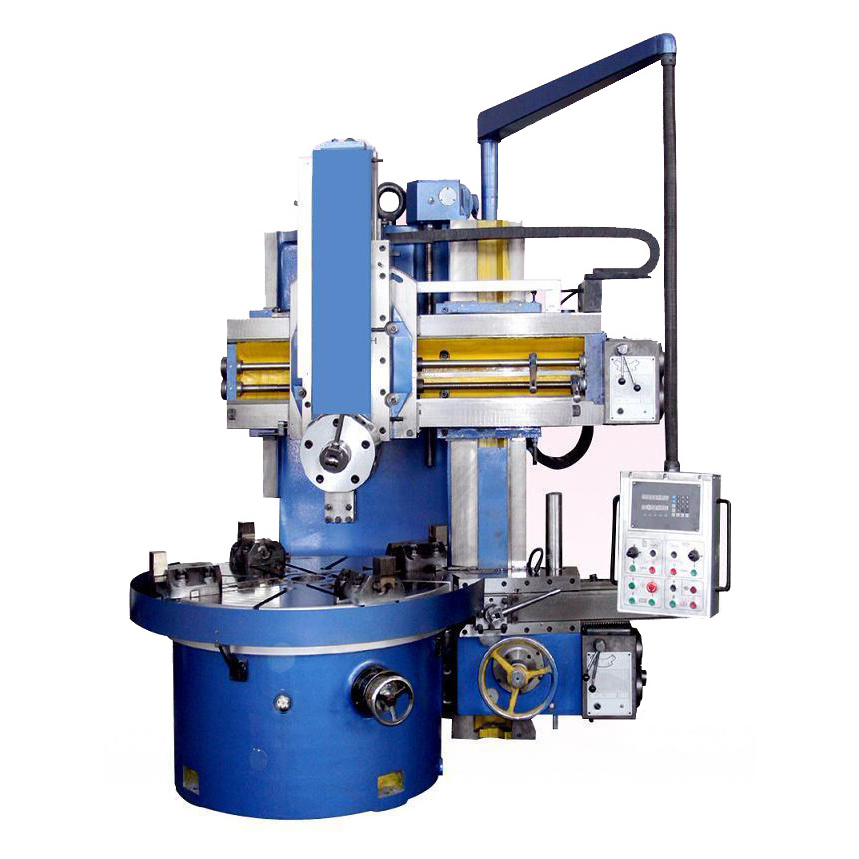

CNC Vertical Lathe
-
Machine Type:
-
Vertical
-
Core component warranty period:
-
2 Years
-
Control system:
-
SIMENS
-
Key words:
-
Vertical Lathe
-
CNC or NOT:
-
CNC
-
Place of Orign:
-
China
-
Core selling point:
-
Powerful magnetic force
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Kingston
-
Marketing Type:
-
New Product 2024
-
Weight (KG):
-
190000
-
Product name:
-
CNC Vertical Lathe
-
Machine Type:
-
Vertical
-
Core component warranty period:
-
2 Years
-
Control system:
-
SIMENS
-
Key words:
-
Vertical Lathe
-
CNC or NOT:
-
CNC
-
Place of Orign:
-
China
-
Core selling point:
-
Powerful magnetic force
Product Paramenters
|
Specification
|
UNIT
|
CK5225
|
CK5231
|
CKQ5240
|
|
Max dia
|
MM
|
2500
|
3150
|
4000
|
|
Table dia
|
MM
|
2250
|
2830
|
2830/3150
|
|
Max workpiece height
|
MM
|
1600
|
1600
|
2000
|
|
Max workpiece weight
|
T
|
10/20
|
10/20
|
10/20
|
|
Max torque of table
|
KN.M
|
63
|
63
|
63
|
|
Table rotate speed range (16step)
|
R/MIN
|
2-63
|
2-63
|
2-63
|
|
Max cutting force of the vertical holder
|
KN
|
32
|
35
|
35
|
|
Vertical toolholder move limit
|
=
|
±30°
|
±30°
|
±30°
|
|
Range of feed rates(stepless)
|
MM/MIN
|
0.1-500
|
0.1-500
|
0.1-500
|
|
Horizontal travel of rail head
|
MM
|
1400
|
1725
|
2150
|
|
Ram travel of rail head
|
MM
|
1000
|
1000/1250
|
1000/1250
|
|
Fast moving speed of tool heads
|
MM/MIN
|
3500
|
3500
|
3500
|
|
Knife rod cross-section size (W.D.)
|
MM
|
40x50
|
40x50
|
40x50
|
|
Main motor power
|
KW
|
DC/AC:55
|
DC/AC:55
|
DC/AC:55
|
|
Overall size of machine
|
CM
|
540x470x480/520
|
605x440x493/533
|
690x510x480/ 520/570
|
|
Weight of machine
|
T
|
38
|
40/42
|
50/52
|
|
Ram section
|
MM
|
240x240
|
240x240
|
240x240
|
