Quick Details
-
Voltage:
-
220V/110V
-
Dimension(L*W*H):
-
200X300X80mm
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Working area:
-
200mm*300mm
-
Software:
-
Mach3
-
Power:
-
300W
-
Certification:
-
CE
-
Weight:
-
21KG
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LY
-
Model Number:
-
DIY mini
-
Voltage:
-
220V/110V
-
Dimension(L*W*H):
-
200X300X80mm
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Working area:
-
200mm*300mm
-
Software:
-
Mach3
-
Power:
-
300W
-
Certification:
-
CE
-
Weight:
-
21KG

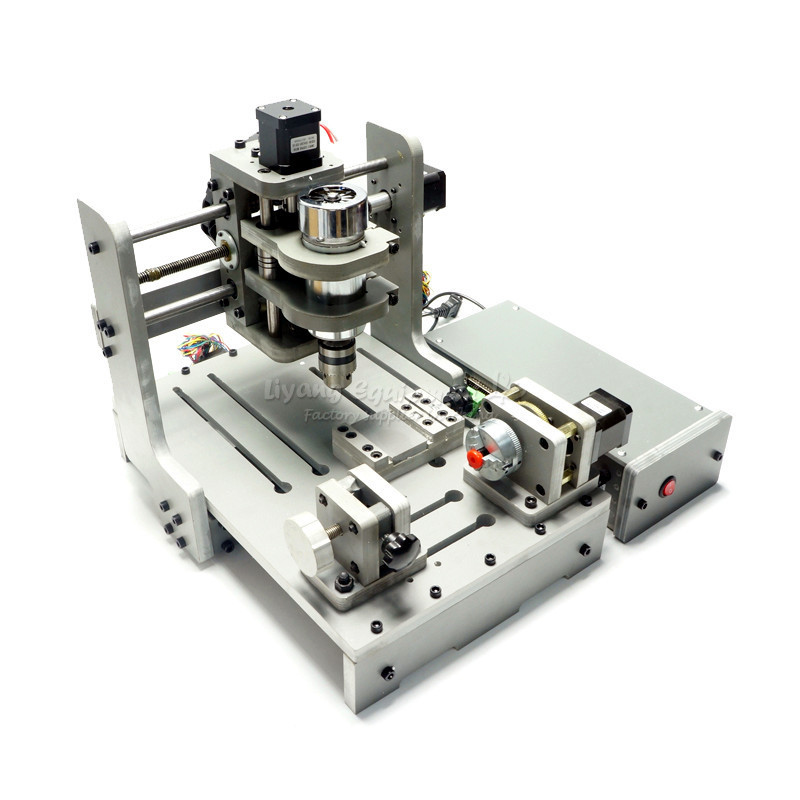

Engraving machine DIY CNC mini
CNC Router /Engraving Drilling and Milling Machine
Introduction
This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;
Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;
It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.
It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.
Warranty
More Precise Stepping Motor
Simple operation and installation
1 year machine part and 6 months electrical parts , stepping motor , spindle Free Warranty
Model and Technical Parameters
|
MODEL |
CNC mini |
|||
|
Attribute |
3axis LPT |
|
4axis LPT |
|
|
Axis |
3axis |
|
4axis |
|
|
Interface |
LPT Port |
|
LPT Port |
|
|
Spindle Motor: |
300W |
|
300W |
|
|
Weigh |
17 |
|
21 |
|
|
Max. working stroke |
XYZ=200*300*80mm |
|||
|
Acceptable material thickness |
≤ 80mm |
|||
|
Rail type |
12 mm optical axis, 10 mm trapezoidal screw |
|||
|
Spindle motor |
300W DC spindle , 0-11000r/min |
|||
|
Collet type |
ER11,1/8"(3.175mm) Collet |
|||
|
Stepper motor and drive |
42HS48 |
|||
|
Maximum operating speed |
2500mm/min (Engraving speed : 300-2500mm/min) |
|||
|
Repeat positioning Accuracy |
0.03mm |
|||
|
Communication interface |
LPT port |
|||
|
System requirements |
Win-XP / Win 7 32 bit or 64 bit operating system |
|||
|
Software Co patability |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
|
Command code |
G code/.nc/.ncc/.tab/.txt |
|||
|
Machine weight |
17kg |
|||
|
Rotation Axis (4 th Axis) |
Weight: 3kg |
|||
