Quick Details
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LINA Machinery
-
Power (kW):
-
7.5
-
Weight (KG):
-
1000 KG
-
Applicable Industries:
-
Other
-
For rubber:
-
For plastics
-
For ceramics:
-
for lab testing
-
high level safety:
-
automatic mixing
-
forumulation memory:
-
PLC control
-
circulated water cooling:
-
electric heating
-
After-sales Service Provided:
-
Online Support
-
Raw material:
-
Rubber Mixing
-
Color:
-
computer connected
Quick Details
-
Diameter of Roll(mm):
-
160 mm
-
Rotation Speed of Front Roll(rpm):
-
0 - 50 rpm
-
Length of Roll(mm):
-
350 mm
-
Cooling Mode:
-
water cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LINA Machinery
-
Power (kW):
-
7.5
-
Weight (KG):
-
1000 KG
-
Applicable Industries:
-
Other
-
For rubber:
-
For plastics
-
For ceramics:
-
for lab testing
-
high level safety:
-
automatic mixing
-
forumulation memory:
-
PLC control
-
circulated water cooling:
-
electric heating
-
After-sales Service Provided:
-
Online Support
-
Raw material:
-
Rubber Mixing
-
Color:
-
computer connected
Product Overview

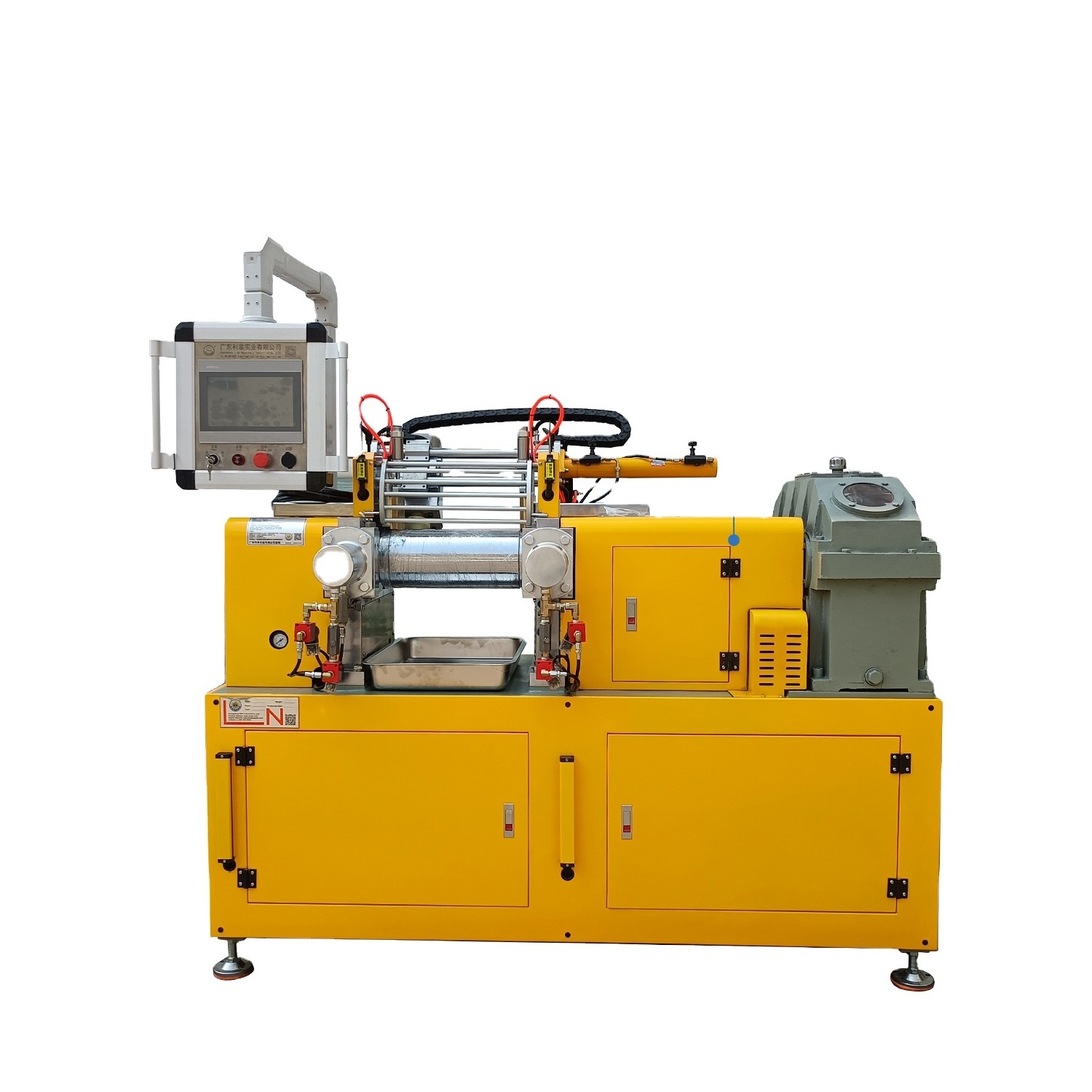

The main working components are two hollow rollers or drilling rollers that rotate inward in opposite directions. The one installed on the operator's side is called the front roller, which can be manually or electrically moved horizontally to adjust the roller distance and meet operational requirements; The rear roller is fixed and cannot move forward or backward. The two rollers are generally of the same size and rotate relative to each other at different speeds. Raw rubber or rubber material is drawn into the gap between the two rollers as the rollers rotate, and is subjected to strong shear force to achieve the purpose of plasticizing or mixing. Refining machines are also used in departments such as plastic processing.
FEATURES AT A GLANCE
Perfect performance
CE safety certification
Fully covered type
PRODUCT SPECIFICATIONS
|
Model
|
LN-K-120/4
|
LN-K-160/6
|
LN-K-230/9
|
LN-K-250/10
|
|
Roll size
|
120x350mm
|
160x350mm
|
230x600mm
|
250x600mm
|
|
Linear roll speed
|
19rpm adjustable
|
18rpm adjustable
|
16rpm adjustable
|
16rpm adjustable
|
|
Max distance of rolls
|
5mm
|
5mm
|
8mm
|
8mm
|
|
Output per batch
|
0.5-1.5KG
|
1.5-3KG
|
6-10KG
|
8-12KG
|
|
Motor power
|
5.5KW
|
7.5KW
|
11KW
|
15KW
|
|
Machine weght
|
600KG
|
800KG
|
1000KG
|
1100KG
|
|
Heating power
|
3KW
|
6KW
|
6KW
|
8KW
|
|
Cooling method
|
0.2-0.3Mpa water cooling
|
0.2-0.3Mpa water cooling
|
0.2-0.3Mpa water cooling
|
0.2-0.3Mpa water cooling
|
PRODUCT CONFIGURATION
High quality carbon steel mirror treatment
Siemens PLC program control
High level of safety system
Successful Project
Project in
Southeast Asia
Project in Famous University
Project in Famous institution
SIMILAR PRODUCTS
FAQ
Q1：How long is your machine's service lfie?
A1：Under normal using condition, it can be using for more than 10 years.
