Quick Details
-
Application:
-
pallet process factory, woodworking factory, Furniture Factory
-
Weight (KG):
-
800 KG
-
Applicable Industries:
-
woodworking factory, Furniture Factory, pallet process factory
-
Marketing Type:
-
Hot Product 2023
-
Name:
-
Automatic Wood Cut Off Saw Machine
-
Keyword:
-
precision panel saw
-
Blade type:
-
circular blade
-
Feeding table length:
-
2m/ 4m/ 6m
-
Discharge table length:
-
1200mm
-
Feeding speed:
-
5-30m/min
-
Cutter spindle rotation speed:
-
3000rpm
-
Pressing method:
-
Cylinder, 0.5-0.7Mpa
-
Cutting tolerance:
-
In +/-1mm
-
Dust collection port:
-
100mm*2pc
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Sawmill-world
-
Voltage:
-
380V or Customized
-
Application:
-
pallet process factory, woodworking factory, Furniture Factory
-
Weight (KG):
-
800 KG
-
Applicable Industries:
-
woodworking factory, Furniture Factory, pallet process factory
-
Marketing Type:
-
Hot Product 2023
-
Name:
-
Automatic Wood Cut Off Saw Machine
-
Keyword:
-
precision panel saw
-
Blade type:
-
circular blade
-
Feeding table length:
-
2m/ 4m/ 6m
-
Discharge table length:
-
1200mm
-
Feeding speed:
-
5-30m/min
-
Cutter spindle rotation speed:
-
3000rpm
-
Pressing method:
-
Cylinder, 0.5-0.7Mpa
-
Cutting tolerance:
-
In +/-1mm
-
Dust collection port:
-
100mm*2pc
Product Description

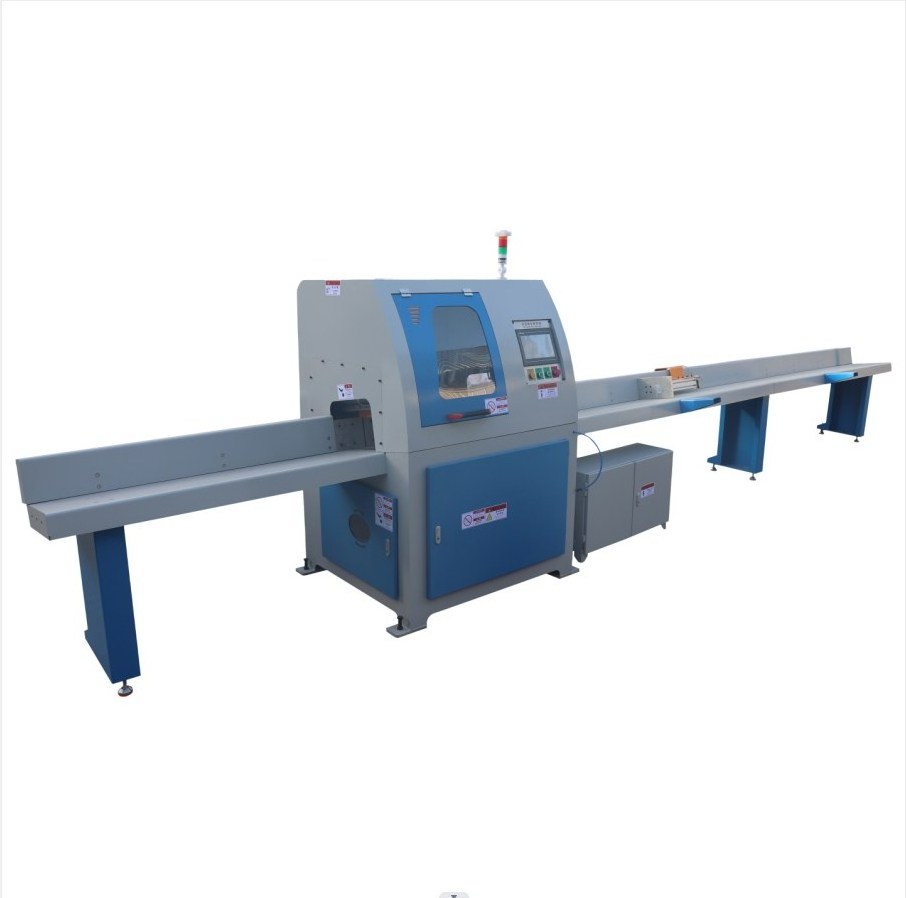

Automatic Precision Panel Cross Cut Off Saw
This saw is a cross cut saw, cutting continuously and automatically with high precision and high efficiency. Can pre-set and edit and save cutting plans.
|
Model
|
DZ-450
|
DZ-600
|
|
Saw Blade Diameter
|
450mm*30mm
|
600mm*30mm
|
|
Feeding Table Length
|
2m/ 4m/ 6m
|
2m/ 4m/ 6m
|
|
Discharge Table Length
|
1200mm
|
1200mm
|
|
Cutting Height
|
10-120mm
|
10-140mm
|
|
Cutting Width
|
30- 200mm
|
30- 300mm
|
|
Cutting Section Thickness*Width
|
Max. 120*150mm
100*200mm
|
Max.120*300mm
140*280mm
|
|
Feeding Speed
|
5-30m/min
|
5-30m/min
|
|
Cutting Speed
|
40pcs/min
|
45pcs/min
|
|
Cutter Spindle Rotation Speed
|
3000rpm
|
3000rpm
|
|
Servo Drive Motor Power
|
0.75kw
|
1kw
|
|
Cutting Motor Power
|
7.5kw/11HP
|
11kw/15HP
|
|
Total Power
|
8.5kw
|
12.5kw
|
|
Pressing Method
|
Cylinder, 0.5-0.7Mpa
|
Cylinder, 0.5-0.7Mpa
|
|
Cutting Tolerance
|
In +/-1mm
|
In +/-1mm
|
|
Dust Collection Port
|
100mm*2pc
|
100mm*2pc
|
|
Electrical Components
|
Schneider
|
Schneider
|
|
PLC Touching Screen
|
Siemens
|
Siemens
|
Products Show
Machine Body
PLC Touching screen control,Tidy and neat wire in control cabinet,it looks beautiful and comfortable,safe and reliable.
Working Platform
Tilt the angle of the table,so that wood close to the machine,to ensure the accuracy of cutting size
Dust Collection Port
2 pcs 100mm diameter dust collection port,strong ability to output the dust,It will strengthen the lift of the machine.
Electrical Components
The electrical components arehigh quality and high level.
Related Product
Our Company
Certifications
Packing & Delivery
Packaging Details : Stretch film packaging or iron frame packaging or subject to customer requirement
Delivery Details
:
Shipped about 15 -35 days after payment.
We'll test the band sawmill before delivery To ensure that every machine is qualified.It is our responsibility, is also responsible for our customer.And then we will load the band sawmill to the container car,delivery it to the port.
