Quick Details
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1200*560*2.5mm
-
Product name:
-

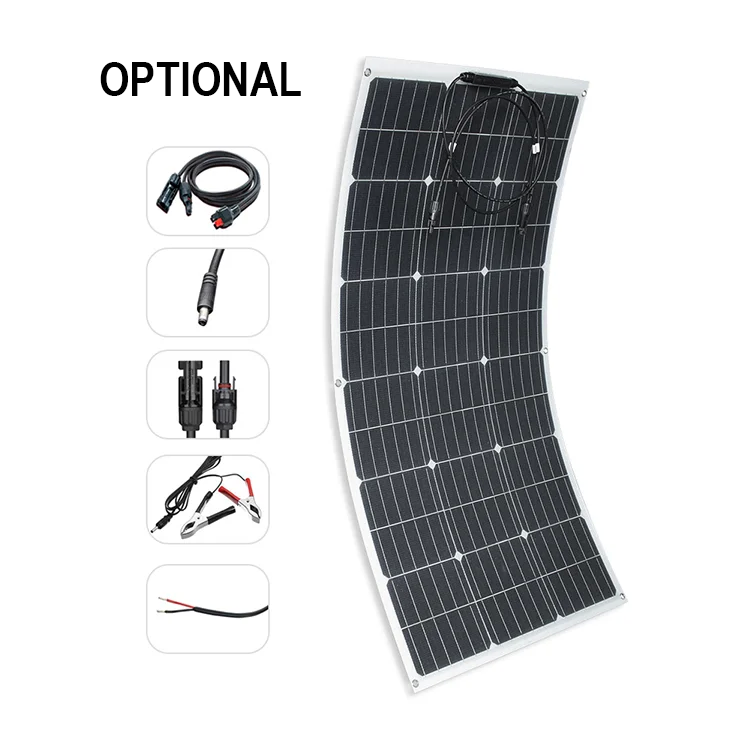

Flexible Solar Panel
-
Application:
-
Boat RV Camping
-
Type:
-
Monocrystalline Silicon
-
Solar cell:
-
A-grade
-
Junction Box:
-
IP67 Rated
-
Frame:
-
Non
-
Surface material:
-
ETFT
-
Certificate:
-
TUV/ISO/CE
-
OEM Order:
-
Acceptable
-
Power:
-
Acceptable
Quick Details
-
Cell size:
-
125mmx125mm
-
Brand Name:
-
Karstsolar/OEM/ODM
-
Model Number:
-
KS-FL10018
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1200*560*2.5mm
-
Product name:
-
Flexible Solar Panel
-
Application:
-
Boat RV Camping
-
Type:
-
Monocrystalline Silicon
-
Solar cell:
-
A-grade
-
Junction Box:
-
IP67 Rated
-
Frame:
-
Non
-
Surface material:
-
ETFT
-
Certificate:
-
TUV/ISO/CE
-
OEM Order:
-
Acceptable
-
Power:
-
Acceptable
Product Description
The following specifications are for reference and can be customized as required
| Model |
KS-FL10018
|
KS-FL15018
|
KS-FL20018
|
| Maximum power at STC(Pmax) | 100w | 150w | 200w |
| Optimum operating voltage(Vmp) | 18v | 18v | 18v |
| Optimum operation current(Imp) | 5.56A | 8.33A | 11.11A |
| No. of cells | 32(4*8) | 48(12*4) | 60(6*10) |
| Dimensions(mm) |
1200*560*2.5mm
|
1480*680*2.5mm
|
1580*710*2.5mm
|
| Weight | 1.8kgs | 3.2kgs | 4.9kgs |
| Front Glass | ETFE | ||
| Frame | N/A | ||
| Junction Box | IP67 rated | ||
| Output cables | Optional 4.0mm2,symmetical lengths(-)1000mm and (+)1000mm | ||
