Type: 60KG Magnetic lock
Material: Aluminum alloy shell + iron plate
Holding force: 60KG/132lbs
Working Voltage: 12V
Working Current: 110mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Work for single door
Dimension: 80*38*25mm
- Product Details
- {{item.text}}
Quick Details
-
Material:
-
Aluminum alloy shell + iron plate
-
Holding force:
-
60kg/100LB
-
Voltage:
-
12V
-
Size:
-
80*38*25mm
-
Current:
-
120mA
-
Suitable:
-
File Cabinet ,Display Cabinet
-
Surface Temp:
-
≤+20℃
-
Operating Temp:
-
-10~+55℃(14-131F)
-
Weight:
-
0.6kg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
Product Name:
-
Fail Safe EM Locks 60 KG Holding Force Electromagnetic Lock
-
Material:
-
Aluminum alloy shell + iron plate
-
Holding force:
-
60kg/100LB
-
Voltage:
-
12V
-
Size:
-
80*38*25mm
-
Current:
-
120mA
-
Suitable:
-
File Cabinet ,Display Cabinet
-
Surface Temp:
-
≤+20℃
-
Operating Temp:
-
-10~+55℃(14-131F)
-
Weight:
-
0.6kg
Product Description

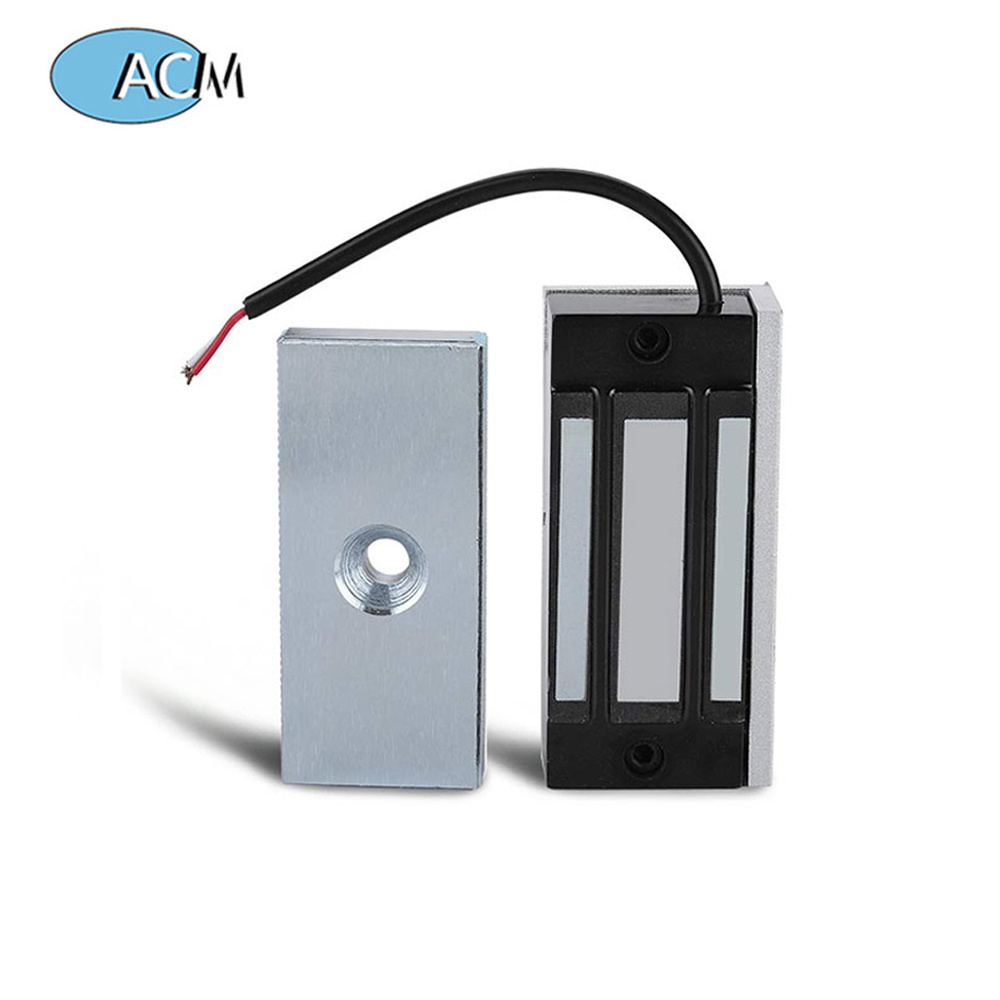

12V 60 kg Electronic Electric Magnetic Lock Fail Safe EM Locks 60 KG Holding Force Electromagnetic Lock
|
Product Parameter
|
Parameter Description
|
|
|
||
|
Lock Size :
|
80x38x25mm
|
|
|
||
|
Holding Force :
|
60kg (100Lbs)
|
|
|
||
|
Input Voltage :
|
12V
|
|
|
||
|
Suitable for door:
|
Wooden door , Glass door ,Metal door , Fireproof door
|
|
|
||
|
Singal Output :
|
Lock singal Status NO/NC/COM/+/-
|
|
|
||
|
Feature:
|
Fail Safe, Timer delay, feedback signal, 12V
|
|
|
||
|
LED:
|
Red shows unlocked, Green shows locked
|
|
|
||
|
Weight:
|
0.6kgs
|
|
|
||
|
Certification:
|
CE /MA
|
|
|
||
Product Advantage
1. 100% brand new and high quality
2. Secure mode: NC model (Locked when power on, unlocked when power off)
3. Aluminium alloy case, very strong and durable.
4. Can be opened by push button, remote controller, etc.
5. Using inner hexagon screw, equipped special spanner.
6. Holding force with 60KG(132Lbs). Built-in reverse current protection device(MOV)
7. Fine workmanship design, no mechanical wear and long service life.
8. Mini style, suitable for cabinet, drawer, small type door, and wooden, iron, glass door.
Package Including:
1* 60KG magnetic Lock
1* installation kit
1* user manual
1* installation kit
1* user manual
Product Application
Instalation Diagram
