Quick Details
-
Brand Name:
-
elestar,custom
-
Model Number:
-
PC-WE-02 red
-
Max. Working Pressure:
-
1Mpa(10bar)
-
IP level:
-
IP65
-
Product name:
-

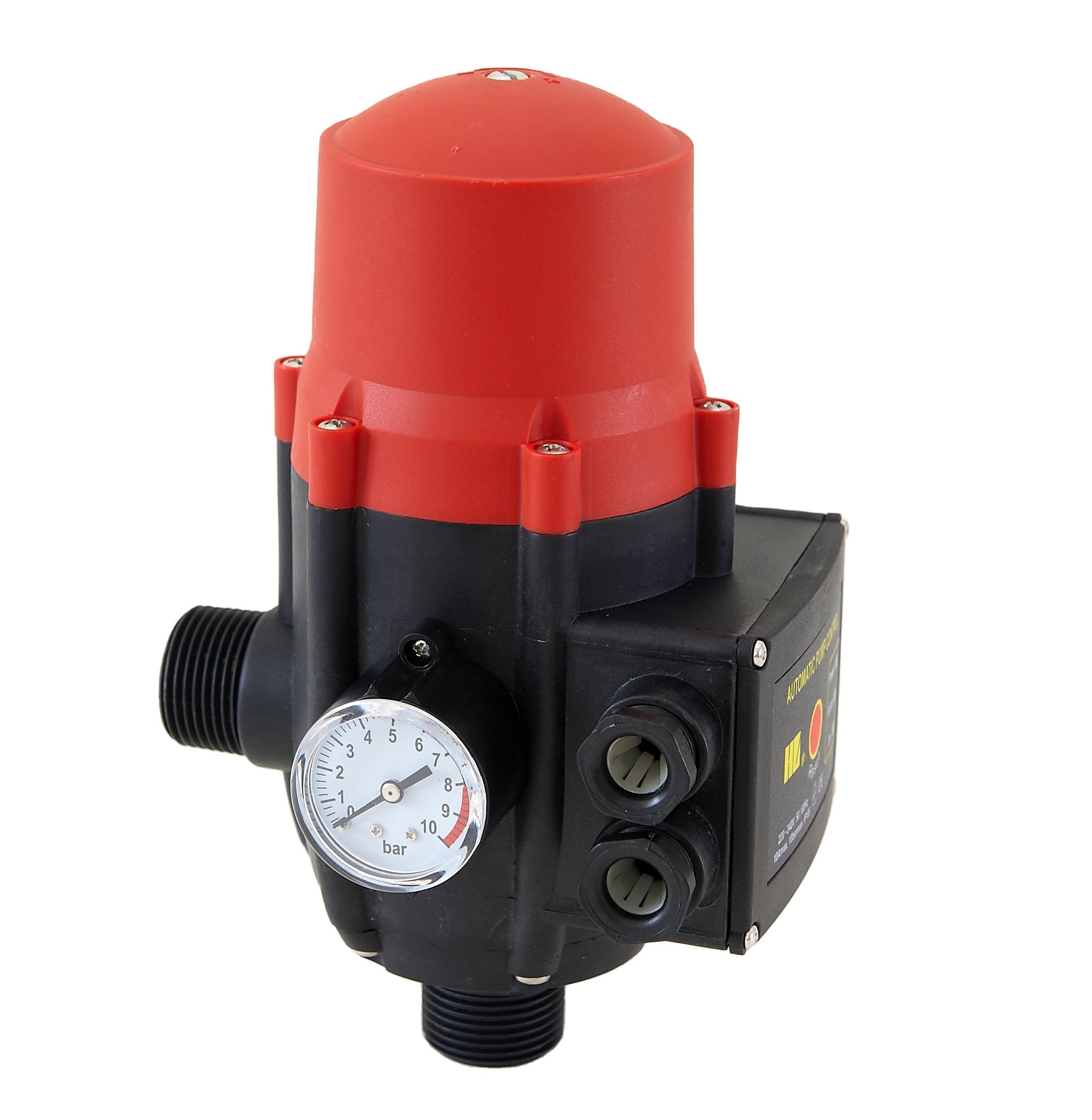

Water Pump Controller
-
Application:
-
Pressure Control System
-
Media:
-
Liguid
-
Color:
-
Customer's Request
-
Pressure range:
-
1-10bar
-
Certification:
-
CE ROHS
-
Connection:
-
G1/4
-
Rated voltage:
-
220V-240V 110V-120V 110V-240V
-
Medium:
-
Liquid Body pressure
-
Material:
-
Plastic
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
220V~240V(50/60Hz)
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
elestar,custom
-
Model Number:
-
PC-WE-02 red
-
Max. Working Pressure:
-
1Mpa(10bar)
-
IP level:
-
IP65
-
Product name:
-
Water Pump Controller
-
Application:
-
Pressure Control System
-
Media:
-
Liguid
-
Color:
-
Customer's Request
-
Pressure range:
-
1-10bar
-
Certification:
-
CE ROHS
-
Connection:
-
G1/4
-
Rated voltage:
-
220V-240V 110V-120V 110V-240V
-
Medium:
-
Liquid Body pressure
-
Material:
-
Plastic
Products Description
100% brand new and high quality .
Maximum current: 10 (6) A
3 Frequency :50-60HZ
4 Maximum Power: 1.1KW
Takeoff pressure setting:1.2bar, 1.5Bar,2.2Bar(please choose one)
6 maximum working pressure: 10Bar
7 interface thread: 1 "
8. Protection: IP65
9. Maximum operating temperature: 60C
10. Applications: self-priming pump, jet pump, garden pump, clear water pumps, etc.
11 Features: The automatic water pump controller is fully electronic intelligent pump control device. Detected water status, piped water consumption and changes in pipeline pressure data to start and stop the pump can completely replace the tank by the pressure pressure switch, water protection device, constituted by the conventional system by the check valve Stone and other live parts and the pipe is completely isolated, and a high sealability of the control box so that the controller has traditionally incomparable security, integration is designed so that you can save even more time with the material during installation.
1.Electric switch used in water systems.
2.It starts the electric pump automatically after a pressure decrease(taps opening)and stops it when the fluid flow interrupts at
the maximum pressure level of the electric pump(taps closed).
3.Joint screw:G1"male.
4.Completely replaced traditional pump control system composed of pressure switch,pressure tank and check valve,etc.
5.Stop the water pump in the case of water shortage.
6.With plug and socket,pump connection be more easily.
7.Customized setting.
* You will get a new and high quality digital pump control!
* Made of high quality materials, high quality manufacturing process, sturdy and durable, excellent service life！
*This pump control is suitable for domestic water home and garden. It can be used for well pumping.
Domestic supply, high-rise building water supply, farmland irrigation, etc.
*The pump control unit is installed between the conveyor (pump) and the extraction point.
*This automatic pressure regulator is equipped with built-in pressure sensor and automatic digital sensor technology control.
Package Includes:
1 x Controller
* Made of high quality materials, high quality manufacturing process, sturdy and durable, excellent service life！
*This pump control is suitable for domestic water home and garden. It can be used for well pumping.
Domestic supply, high-rise building water supply, farmland irrigation, etc.
*The pump control unit is installed between the conveyor (pump) and the extraction point.
*This automatic pressure regulator is equipped with built-in pressure sensor and automatic digital sensor technology control.
Package Includes:
1 x Controller
|
Model
|
inner box
|
Material
|
dimension
|
package
|
|
PC-WE-02
|
15*10*22.5
|
Plastic,custom
|
52*47*25
|
12PCS/box,20/17.5KGS
|
