Quick Details
-
Brand Name:
-
XINGYUTENG
-
Model Number:
-
QYK103
-
Max. Current:
-
24mA, 1.2A
-
Max. Working Pressure:
-
100MPa, 900Bar
-
IP level:
-
IP65
-
Connection:
-
M20*1.5 G1/2 G1/2 NPT
-
Output:
-
4-20mA+2 relays
-
Service life:
-
1million times
-
Display accuracy:
-
0.1%FS
-
Pressure range:
-
-0.1~0~100Mpa
-
Switch type:
-
PNP/NPN
-
Power:
-
24VDC+-20%
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
30V, 24V+_20%
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
XINGYUTENG
-
Model Number:
-
QYK103
-
Max. Current:
-
24mA, 1.2A
-
Max. Working Pressure:
-
100MPa, 900Bar
-
IP level:
-
IP65
-
Connection:
-
M20*1.5 G1/2 G1/2 NPT
-
Output:
-
4-20mA+2 relays
-
Service life:
-
1million times
-
Display accuracy:
-
0.1%FS
-
Pressure range:
-
-0.1~0~100Mpa
-
Switch type:
-
PNP/NPN
-
Power:
-
24VDC+-20%

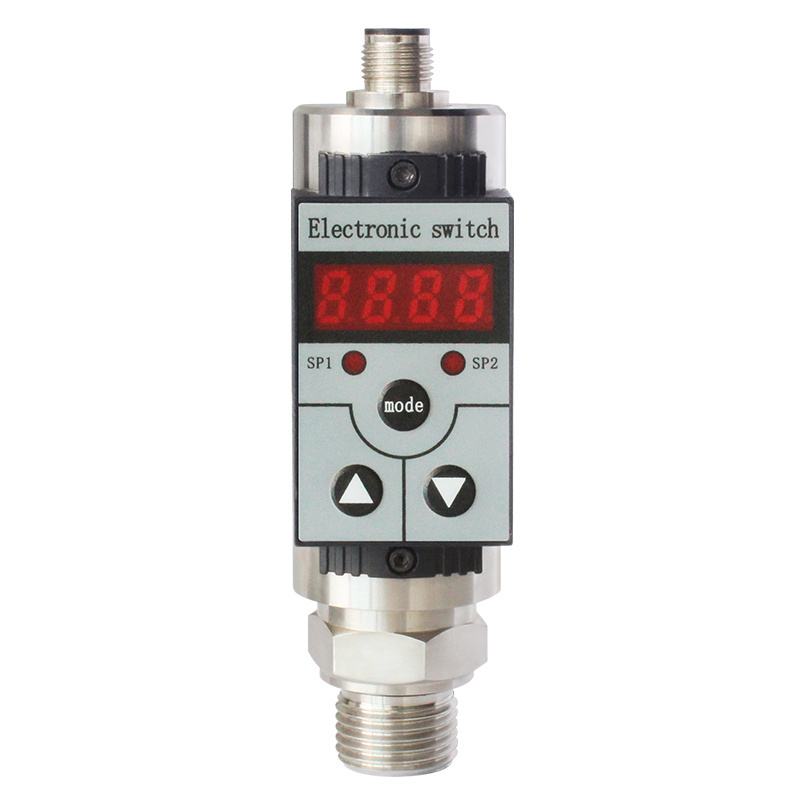

4-20mA and 2 relays LED display automatic differential boiler pressure switch
|
R ange |
-0.1~0~100MPa |
|
Switch T ype |
NPN/PNP |
|
Display |
LED |
|
Medium T emperature |
-25 ℃ ~80 ℃ |
|
Power Supply |
24VDC ± 20% |
|
Accuracy |
0.5%F.S |
1. How long will you reply me?
Within 1 hour, no longer than 12 hours.
2. How can I get the quotation?
Please advise the required specification including measuring range, electronic connection, output signal, thread
connection, medium, shell material, operating temperaturer, etc, then we can recommend the suitable model for you.
3. Can I get sample?
Pls contact with us online directly and then we can discuss case by case.
4. Can I visit your factory?
Sure, you are always welcome, we are
ORIGINAL MANUFACTURER
.
Our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
Yes, we can offer the OEM/ODM service.
6. How long is your warranty period?
Within 12 months from the receipt of goods
7. What is your terms of payment?
T/T, L/C, Western union, PayPal, credit Assurance
