- Product Details
- {{item.text}}
Quick Details
-
Max. Loading Capacity:
-
1000L
-
Weight (KG):
-
1000 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GUANYU
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Customized
-
Power (kW):
-
11 kW
-
Machine Type:
-
Mixer
-

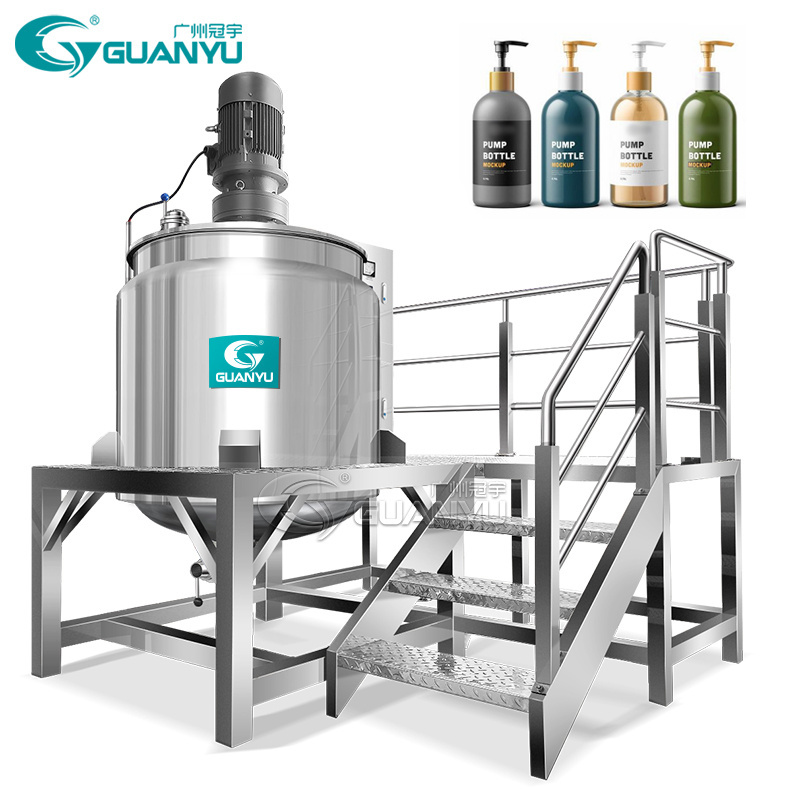

Product name:
-
Mixing Tank
-
Name:
-
Stainless Steel Large Mixing Tank
-
Function:
-
Mixer Blender
-
Usage:
-
Mixing Paste Proucts
-
Application scope:
-
Liquid Washing Products
-
Type:
-
Mixer Tank
-
Keyword:
-
Shampoo Production Line
Quick Details
-
Barrel Volume (L):
-
1000
-
Max. Loading Volume (L):
-
1000 L
-
Range of Spindle Speed(r.p.m):
-
1 - 63 r.p.m
-
Max. Loading Capacity:
-
1000L
-
Weight (KG):
-
1000 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GUANYU
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Customized
-
Power (kW):
-
11 kW
-
Machine Type:
-
Mixer
-
Product name:
-
Mixing Tank
-
Name:
-
Stainless Steel Large Mixing Tank
-
Function:
-
Mixer Blender
-
Usage:
-
Mixing Paste Proucts
-
Application scope:
-
Liquid Washing Products
-
Type:
-
Mixer Tank
-
Keyword:
-
Shampoo Production Line
High shear homogenizer mixer
*The all-round wall scraping mixing adopts the frequency converter for speed adjustment , so that high quality products of
different processes according to customer requirements.
*The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve many
indissoluble materials such as AES , AESA , LSA , etc. during the liquid detergent production process so as to save energy
consumpion and shorten production period.
*The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mittor polishing , which
fully conforms to GMP requirements.
*According to customer requirement , the tank can heat and cool materials. The heating way including steam heating and electric
heating. Easy to discharge , bottom direct discharge or by transfer pump.
different processes according to customer requirements.
*The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve many
indissoluble materials such as AES , AESA , LSA , etc. during the liquid detergent production process so as to save energy
consumpion and shorten production period.
*The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mittor polishing , which
fully conforms to GMP requirements.
*According to customer requirement , the tank can heat and cool materials. The heating way including steam heating and electric
heating. Easy to discharge , bottom direct discharge or by transfer pump.
|
Model
|
Working Volume(L)
|
Blending power(kw)
|
Blending rotation speed(r/min)
|
Homogenizing power(kw)
|
Homogenizing rotation speed(r/min)
|
Heating method
|
|
GYM-200
|
200
|
1.5
|
0-63
|
4.0
|
0~3200
|
Steam heating Or Electric heating
|
|
GYM-500
|
500
|
3.0
|
0-63
|
7.5
|
0~3200
|
|
|
GYM-1000
|
1000
|
4.0
|
0-63
|
11
|
0~3200
|
|
|
GYM-1500
|
1500
|
5.5
|
0-63
|
11-15
|
0~3200
|
|
|
GYM-2000
|
2000
|
7.5
|
0-63
|
15-18.5
|
0~3200
|
|
|
GYM-3000
|
3000
|
7.5-11
|
0-63
|
18.5-22
|
0~3200
|
|
|
GYM-5000
|
5000
|
11-15
|
0-63
|
18.5-22
|
0~3200
|
|
