Applications
Pre-filter for drinking water treatment
electronic industry
Chemicals and organic Solvents
Beverage and food, Plating
Pharmaceuticals
Specification
Material of Construction
Filter Media: PP, cotton or glass fiber
Core: Polypropylene or stainless steel
Seal Material:Silicone,EDPM,Buna,Viton, Teflon
Micron Rating: 1µm, 3µm, 5µm, .. 100µm
Dimensions
Outside diameter: 2.5” (62-65mm),4.5"(110-115mm)
Inside diameter:28mm or 30mm
Length: 5", 10", 20", 30", 40"
Recommended Operating Conditions
Max. Operating Temperature:
PP ≤80°C,Cotton≤120°C,Glass fiber≤180°C
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OEM
-
Material:
-
Carton Box
-
Productivity:
-
Base on the order
-
Weight (KG):
-
0.6 kg
-
Product name:
-
String Wound Filter Cartridge
-
Filter Media:
-
Polypropylene, cotton or glass fiber
-
Core:
-
Polypropylene or stainless steel
-
Seal Material:
-
Silicone, EDPM, Buna, iton
-
Micron Rating:
-
1μm, 3μm, 5μm, .. 100μm
-
Outside diameter:
-
2.5" (62-65mm),4.5"(110-115mm)
-
Inside diameter:
-
28mm or 30mm
-
Length:
-
5", 10", 20", 30", 40"
-
Max. Operating Temperature:
-
PP ≤80°C,Cotton≤120°C,Glass fiber≤180°C
-
Usage:
-
Water Purification
Quick Details
-
Marketing Type:
-
Hot sales
-
Core Components:
-
String Wound Filter Cartridge
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Material:
-
Carton Box
-
Productivity:
-
Base on the order
-
Weight (KG):
-
0.6 kg
-
Product name:
-
String Wound Filter Cartridge
-
Filter Media:
-
Polypropylene, cotton or glass fiber
-
Core:
-
Polypropylene or stainless steel
-
Seal Material:
-
Silicone, EDPM, Buna, iton
-
Micron Rating:
-
1μm, 3μm, 5μm, .. 100μm
-
Outside diameter:
-
2.5" (62-65mm),4.5"(110-115mm)
-
Inside diameter:
-
28mm or 30mm
-
Length:
-
5", 10", 20", 30", 40"
-
Max. Operating Temperature:
-
PP ≤80°C,Cotton≤120°C,Glass fiber≤180°C
-
Usage:
-
Water Purification
Product Overview

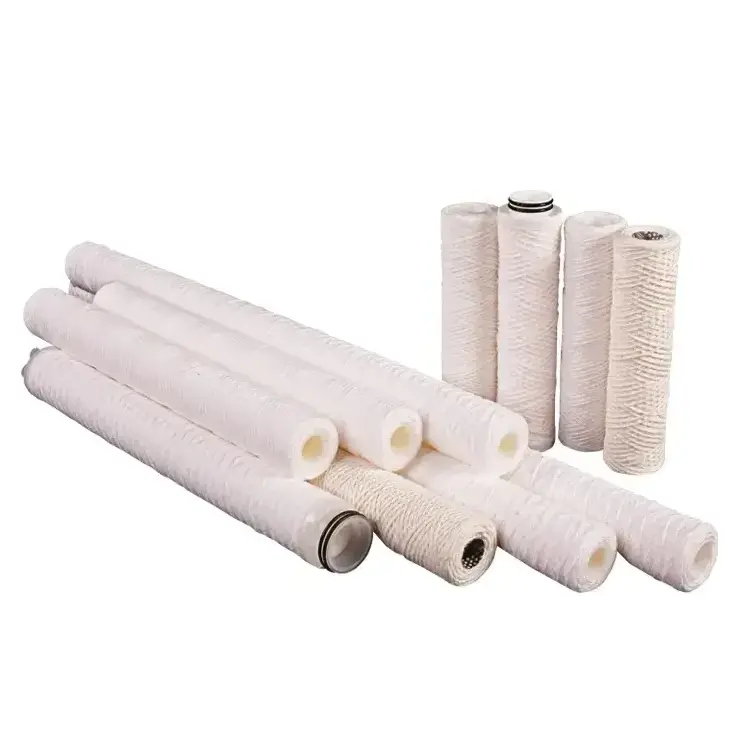

String Wound Filter Cartridge
String Wound Filter Cartridge is made of pp or cotton or glass fiber which used for filtration in a high dirty holding. The
material is wind on the pp core or stainless steel core. This kind of filter cartridge can withstand different condition, which
conform with FDA standard requirement.
Specification
PP Melt Blown Filter Cartridge
|
Model PPY
|
Support
Core
|
Dimension
|
Micron
Rating
|
End Adaptor
|
Seal
|
Length
Inch
|
|
PPY-A
PP PPY-B Cotton Groove PPY-C Glass Fiber |
P-PP
S- Stainle Ss Steel |
A-ID28mm
OD62-65mm B-ID28mm OD110-115mm C-ID30mm OD62-65mm D-ID30mm OD110-115mm |
1:1µm
3:3µm 5:5µm 10:10µm ........ ........ 100:100µm |
0-DOE
1-226/Fin 2-222/Fin 3-222/Flat Closed 4-222/Flat Closed |
E-EPDM
N-Buna S-Silicone V-Viton T-Teflon |
5:5"
10:10" 20:20" 30:30" 40:40" |
